A11CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 30A 12V
| Part | Coil Power | Contact Material | Coil Resistance | Features | Termination Style | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Release Voltage | Contact Rating (Current) | Mounting Type | Release Time | Coil Type | Contact Form | Must Operate Voltage | Coil Voltage | Switching Voltage [Max] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

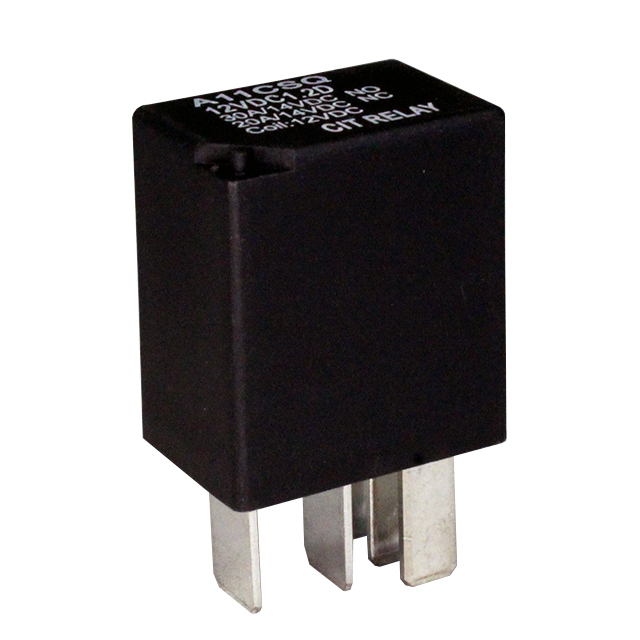

 CIT Relay and Switch | 1.2 W | Silver Tin Oxide (AgSnO) | 120 Ohms | Diode Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 1.2 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 8.4 VDC | 12 VDC | 75 VDC | 0.1 A |

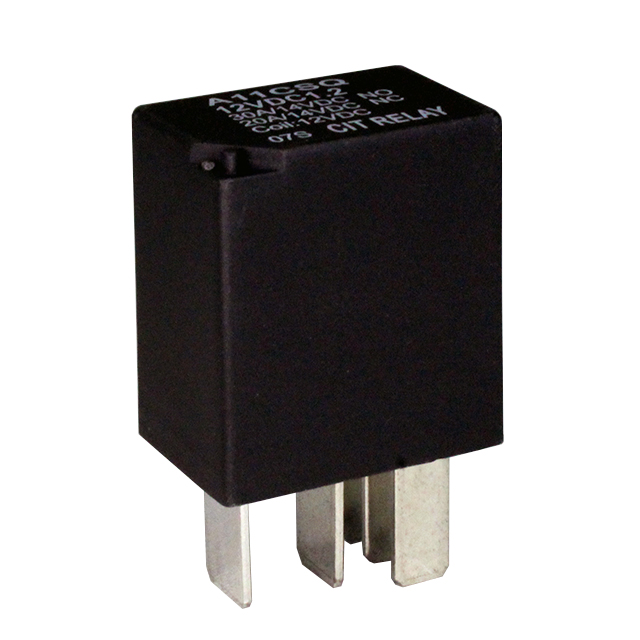

 CIT Relay and Switch | 1.2 W | Silver Tin Oxide (AgSnO) | 120 Ohms | Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 1.2 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 8.4 VDC | 12 VDC | 75 VDC | 0.1 A |

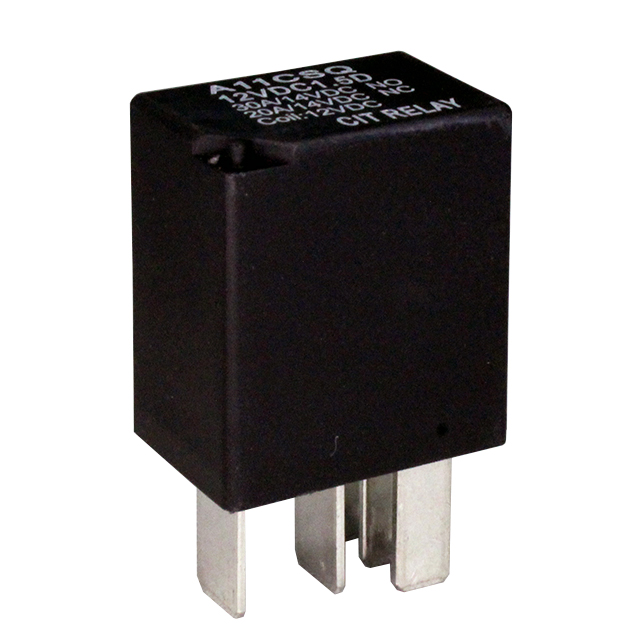

 CIT Relay and Switch | 1.5 W | Silver Tin Oxide (AgSnO) | 96 Ohms | Diode Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 1.2 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 8.4 VDC | 12 VDC | 75 VDC | 125 mA |

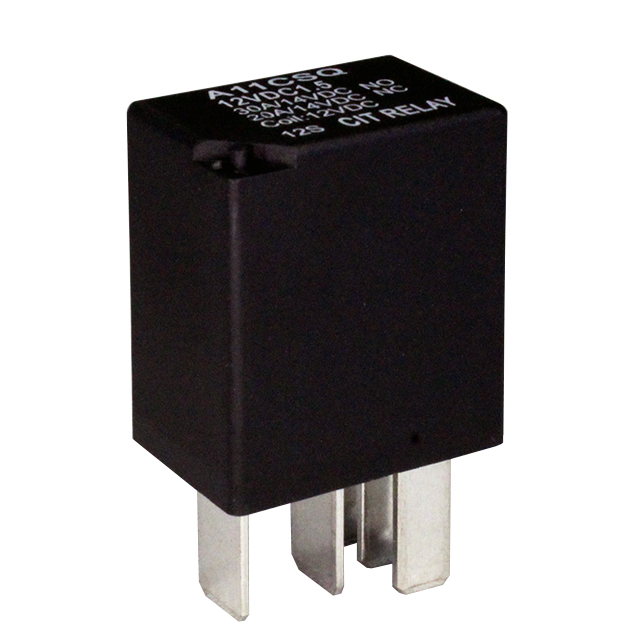

 CIT Relay and Switch | 1.5 W | Silver Tin Oxide (AgSnO) | 96 Ohms | Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 1.2 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 8.4 VDC | 12 VDC | 75 VDC | 125 mA |

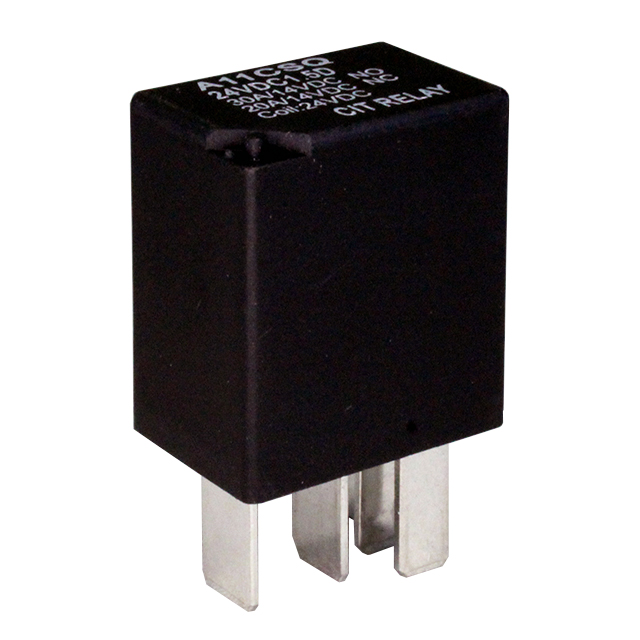

 CIT Relay and Switch | 1.5 W | Silver Tin Oxide (AgSnO) | 384 Ohms | Diode Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 2.4 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 18 VDC | 24 VDC | 75 VDC | 62.5 mA |
 CIT Relay and Switch | 1.2 W | Silver Tin Oxide (AgSnO) | 480 Ohms | Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 2.4 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 18 VDC | 24 VDC | 75 VDC | 50 mA |
 CIT Relay and Switch | 1.2 W | Silver Tin Oxide (AgSnO) | 480 Ohms | Diode Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 2.4 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 18 VDC | 24 VDC | 75 VDC | 50 mA |

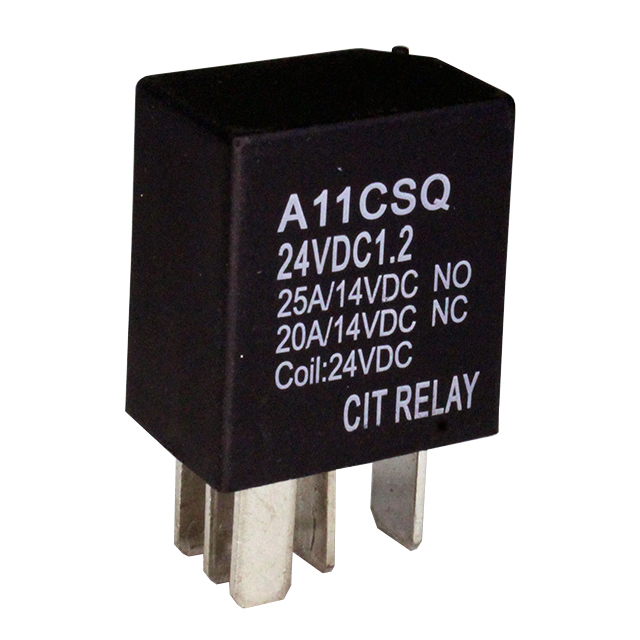

 CIT Relay and Switch | 1.2 W | Silver Tin Oxide (AgSnO) | 480 Ohms | Resistor Sealed - Fully | 0.187 in 4.7 mm | Plug In Quick Connect | 85 °C | -40 C | 10 ms | 2.4 VDC | 30 A | Socketable | 7 ms | Non Latching | SPDT (1 Form C) | 18 VDC | 24 VDC | 75 VDC | 50 mA |
