2367196 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

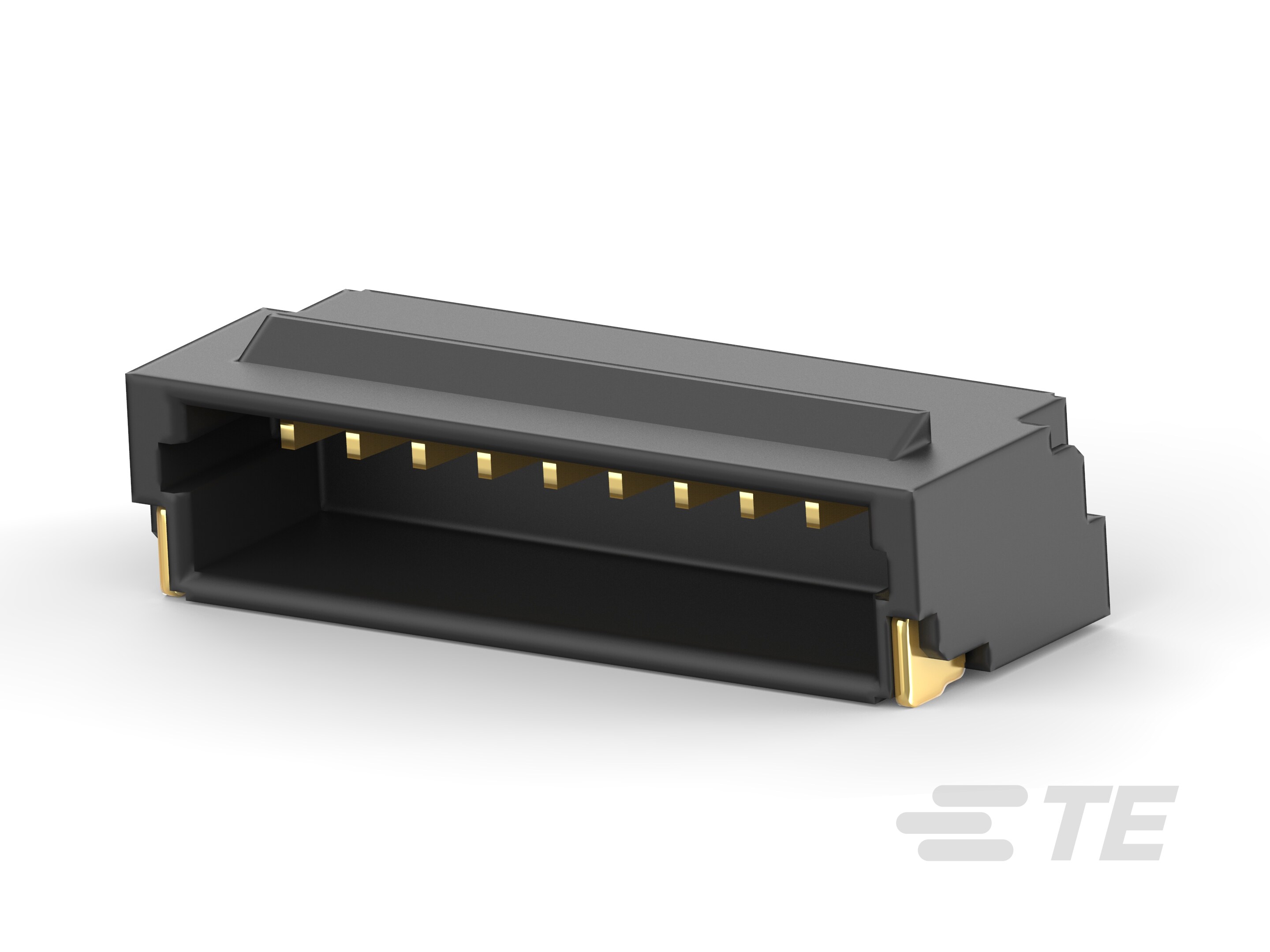

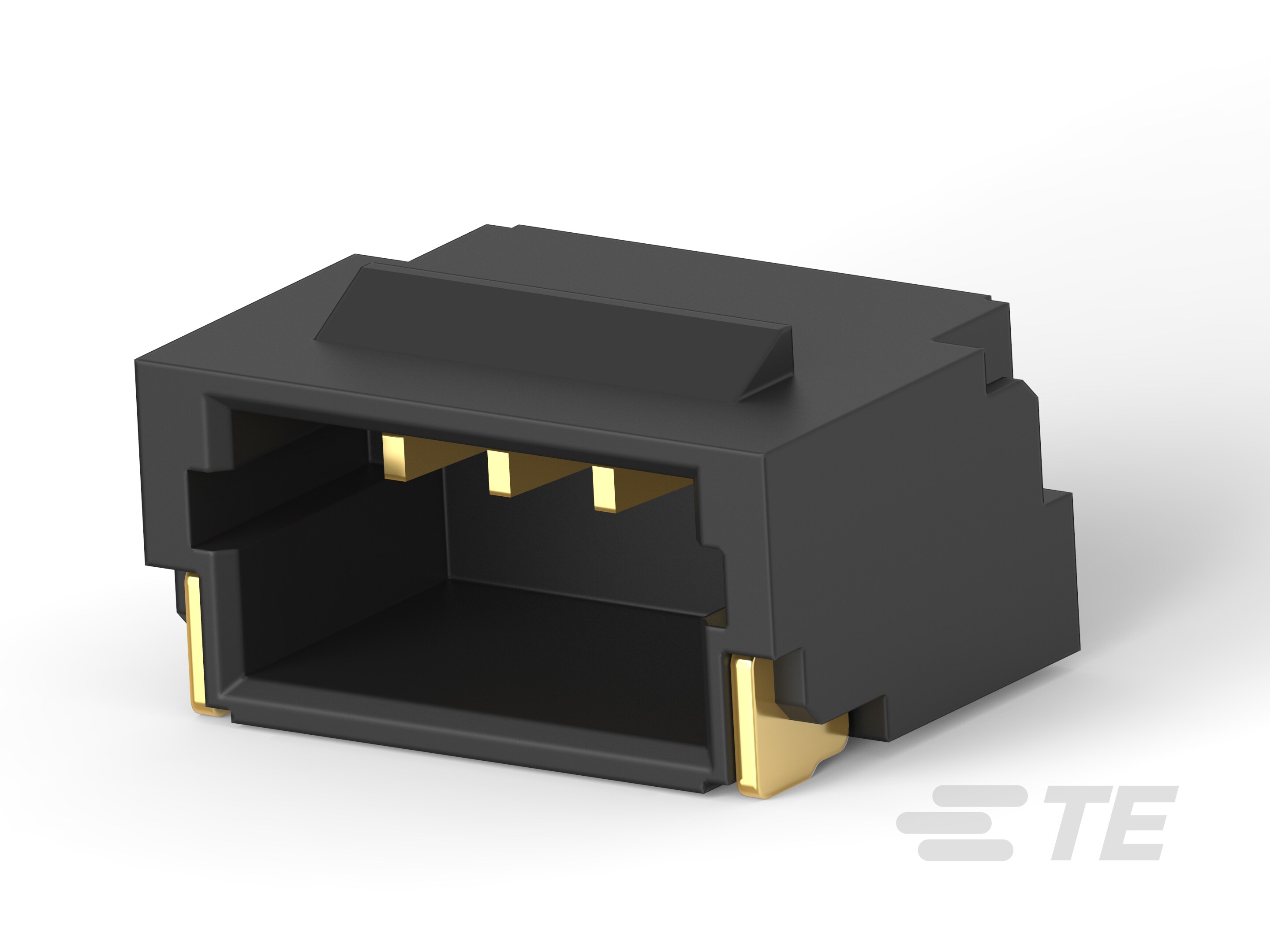

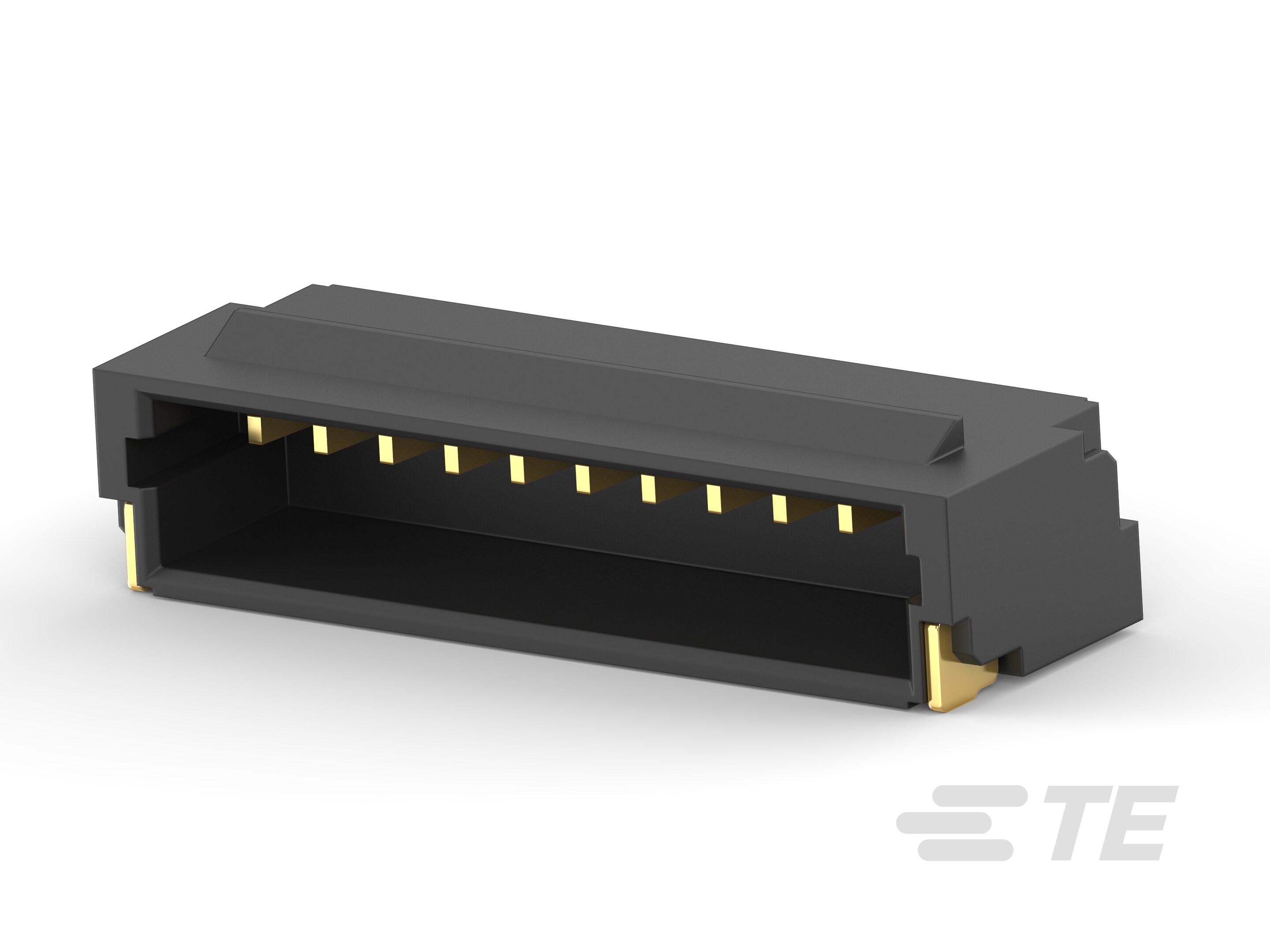

1.0MM WTB RIGHT ANGLE TYPE WITH

Part	Voltage Rating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Connector Type	Contact Finish - Post	Contact Type	Features	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Fastening Type	Current Rating (Amps)	Contact Material	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions

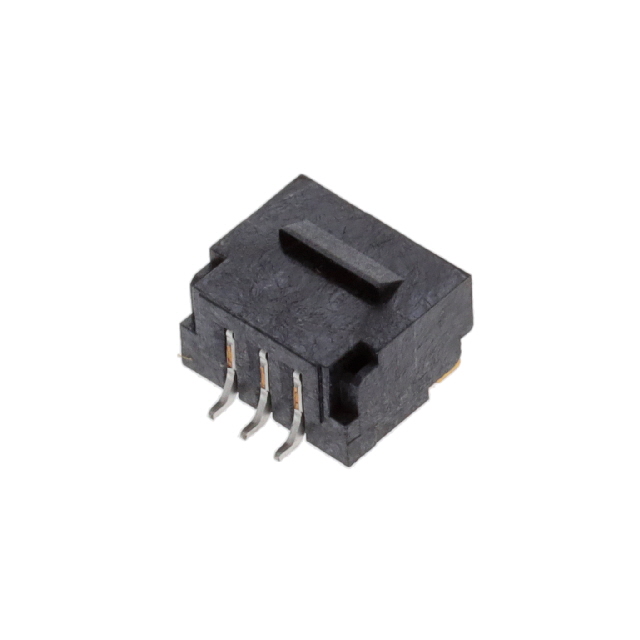

TE Connectivity Raychem Cable Protection 2367196-3	50 V	Black	85 °C	-40 °C	Shrouded - 4 Wall	0.127 µm	5 µin	All	0.039 in	1 mm	0.114 "	2.9 mm	Thermoplastic Halogen Free	UL94 V-0	Header	Tin	Male Pin	Pick and Place Solder Retention	Solder	1.27 µm	50 µin	Board to Cable/Wire	Locking Ramp	2 A	Copper Alloy	1	Surface Mount Right Angle	0.087 in	2.21 mm	Rectangular
TE Connectivity Raychem Cable Protection 2-2367196-6	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold	6
TE Connectivity Raychem Cable Protection 5-2367196-5	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall	0.076 µm	3 µin	All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular		Flash	Gold	15
TE Connectivity Raychem Cable Protection 2-2367196-3	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold
TE Connectivity Raychem Cable Protection 2-2367196-5	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold
TE Connectivity Raychem Cable Protection 3-2367196-0	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold	10
TE Connectivity Raychem Cable Protection 4-2367196-4	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall	0.076 µm	3 µin	All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular		Flash	Gold	4
TE Connectivity Raychem Cable Protection 2-2367196-8	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold	8
TE Connectivity Raychem Cable Protection 3-2367196-4	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold	14
TE Connectivity Raychem Cable Protection 3-2367196-1	50 V	Black	105 ░C	-40 °C	Shrouded - 4 Wall			All	0.039 in	1 mm	0.114 "	2.9 mm	Plastic Halogen Free	UL94 V-0	Header	Gold	Male Pin	Pick and Place Solder Retention	Solder			Board to Cable/Wire	Locking Ramp	1 A	Copper Alloy	1	Surface Mount Right Angle			Rectangular	Flash	Flash	Gold	11
