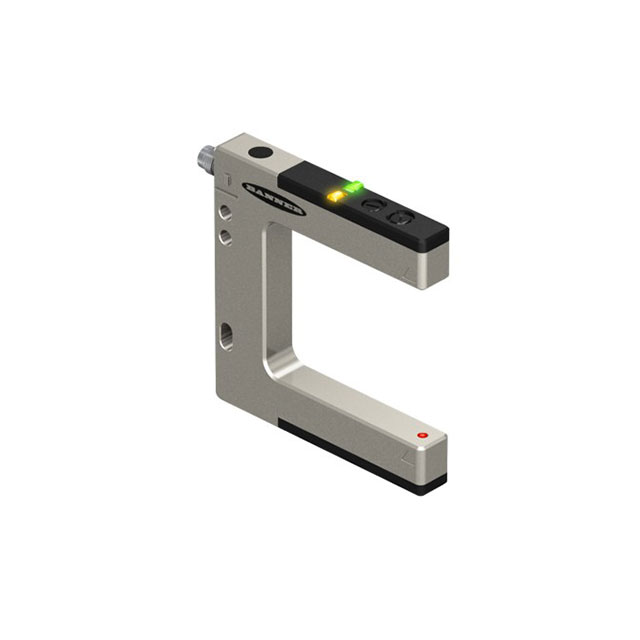

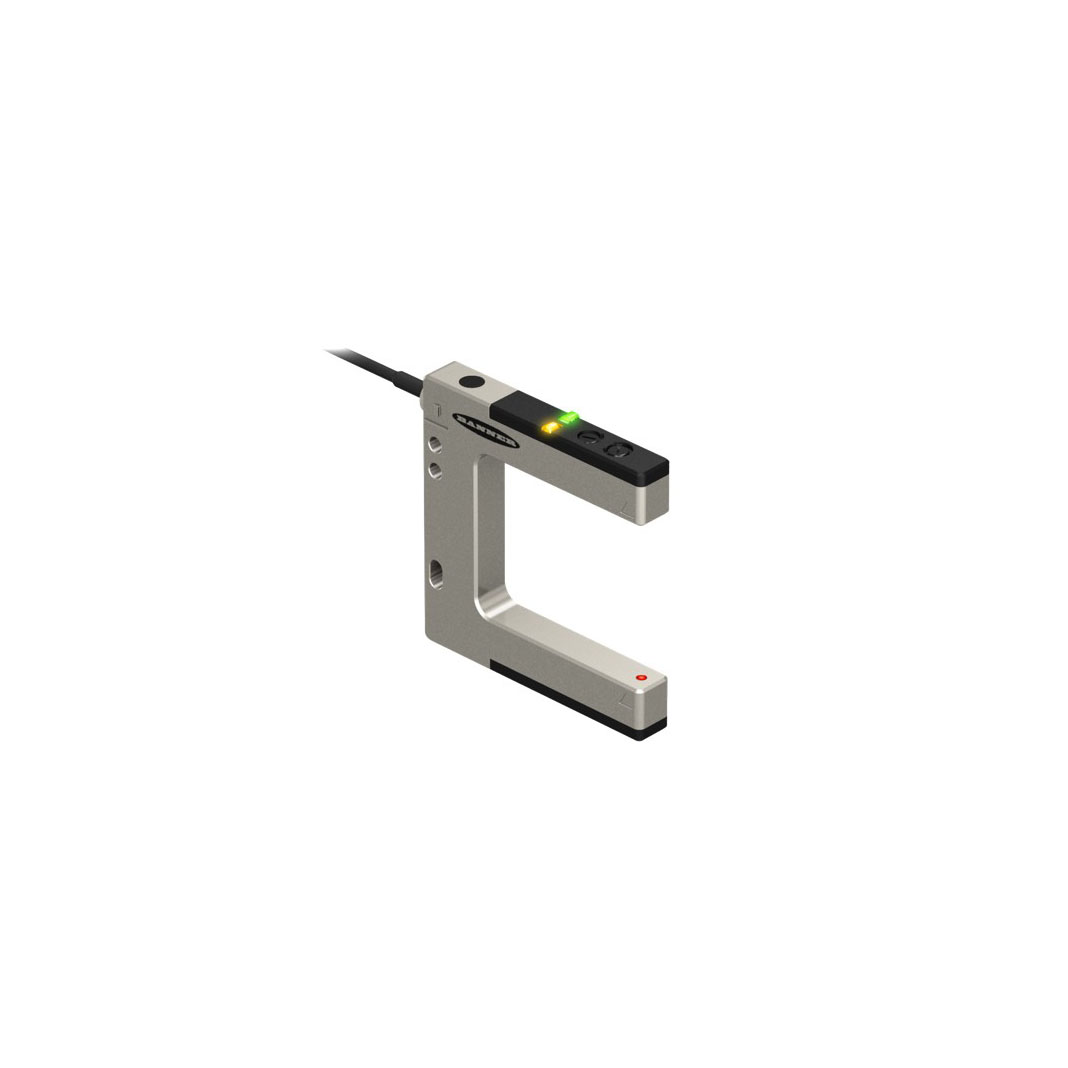

SLM50P6 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
SLM SERIES: RUGGED NICKEL PLATED
| Part | Ingress Protection | Connection Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Configuration | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Adjustment Type | Sensing Distance | Sensing Distance | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | Connector | 10 VDC | 30 VDC | PNP - Dark-ON/Light-ON - Selectable | 500 µs | -20 ░C | 60 °C | Adjustable Potentiometer | 5 cm | 1.969 in | LED |
 BANNER ENGINEERING | IP67 NEMA 6P | Connector | 10 VDC | 30 VDC | PNP - Dark-ON/Light-ON | 500 µs | -20 ░C | 60 °C | Adjustable Potentiometer | 5 cm | 1.969 in | LED |
