6524UE Series
Manufacturer: Belden Inc.
Beta
⌘K

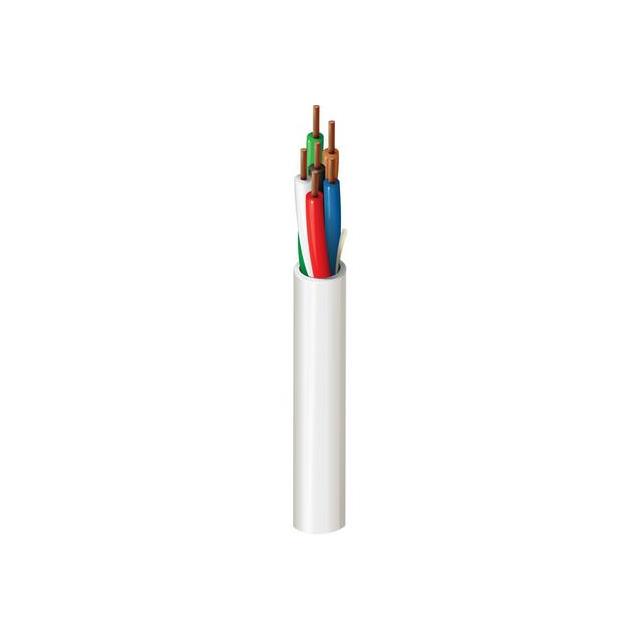

CABLE 6COND 22AWG NATURAL
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Conductor Insulation | Jacket Color | Conductor Strand | Length | Length | Voltage | Features | Ratings | Number of Conductors | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.162 in | 4.11 mm | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 75 ░C | 0 °C | 22 AWG | Copper Bare | 0.381 mm | 0.015 in | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) | Natural | Solid | 304.8 m | 1000 ft | 300 VDC | Rip Cord | UL Style CMP | 6 | Multi-Conductor |
