1744439 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 6POS 2.5MM

Part	Insulation Material	Shrouding	Style	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Applications	Contact Shape	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Type	Fastening Type	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Connector Type	Termination	Material Flammability Rating

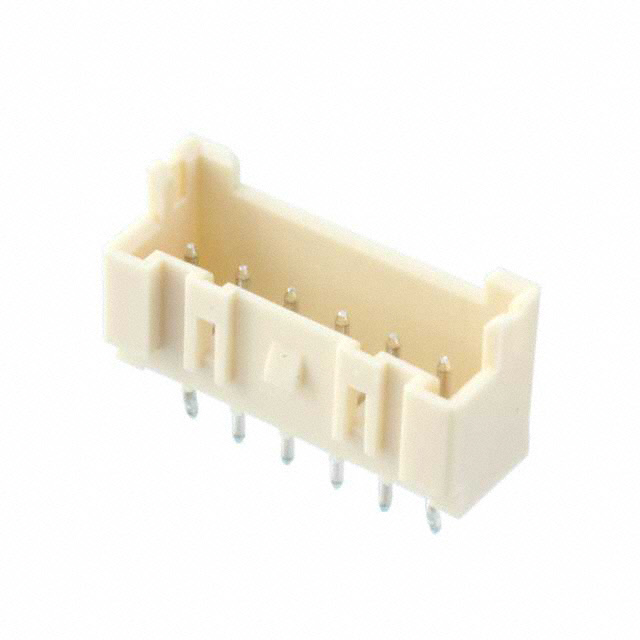

TE Connectivity Raychem Cable Protection 1744439-6	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	250 VAC	2.03 µm	80 µin	6	General Purpose Industrial Lighting	Circular	4.2 A	0.346 in	8.8 mm	Copper Alloy	2.03 µm	80 µin	All	0.134 in	3.4 mm	Tin	Male Pin	Locking Ramp	Natural	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	1	Glow Wire Compliant	Header	Kinked Pin Solder	UL94 V-0

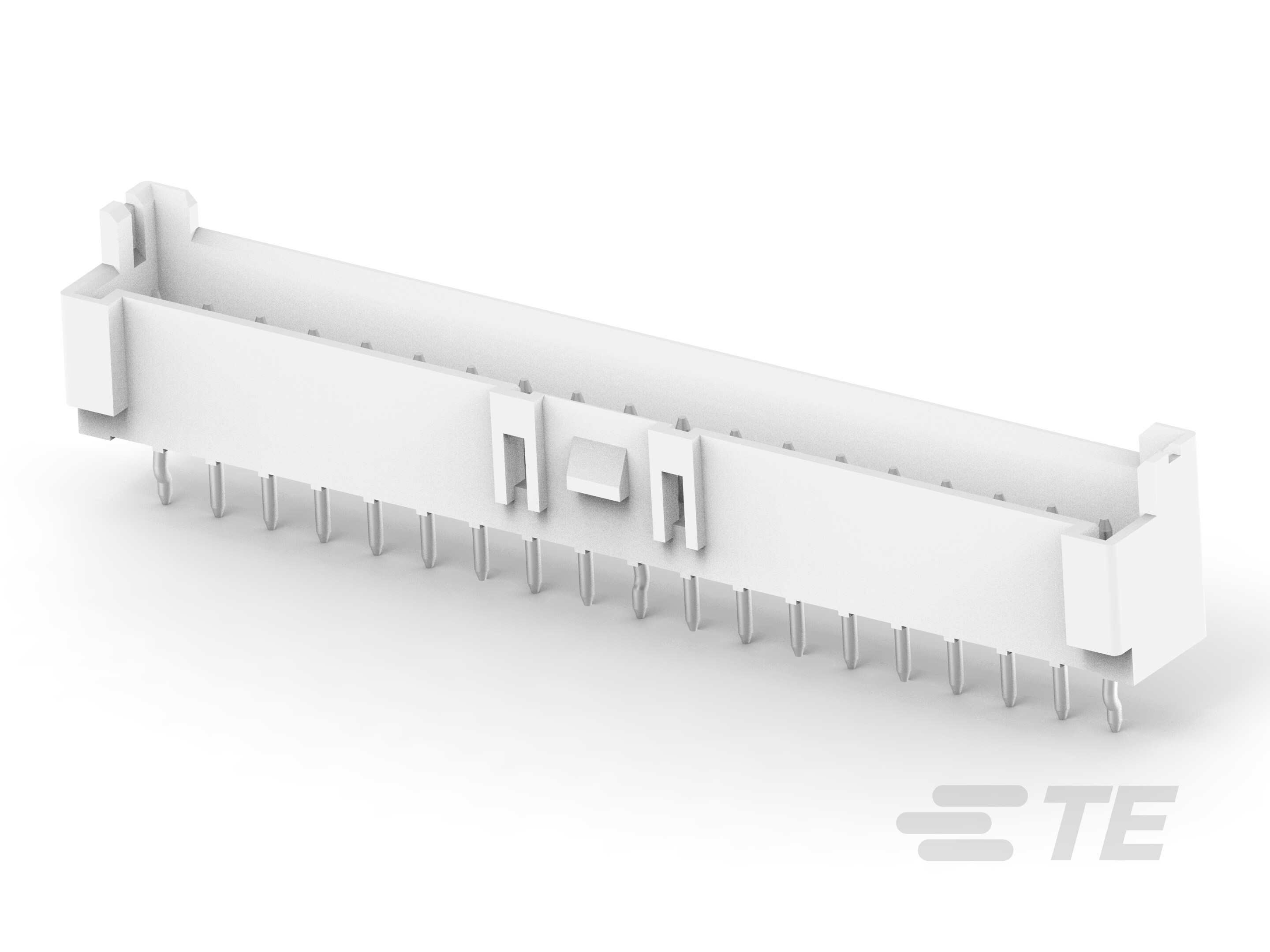

TE Connectivity Raychem Cable Protection 1-1744439-9	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	250 VAC	2.03 µm	80 µin	19	General Purpose Industrial Lighting	Circular	4.2 A	0.346 in	8.8 mm	Copper Alloy	2.03 µm	80 µin	All	0.134 in	3.4 mm	Tin	Male Pin	Locking Ramp	Natural	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	1	Glow Wire Compliant	Header	Kinked Pin Solder	UL94 V-0

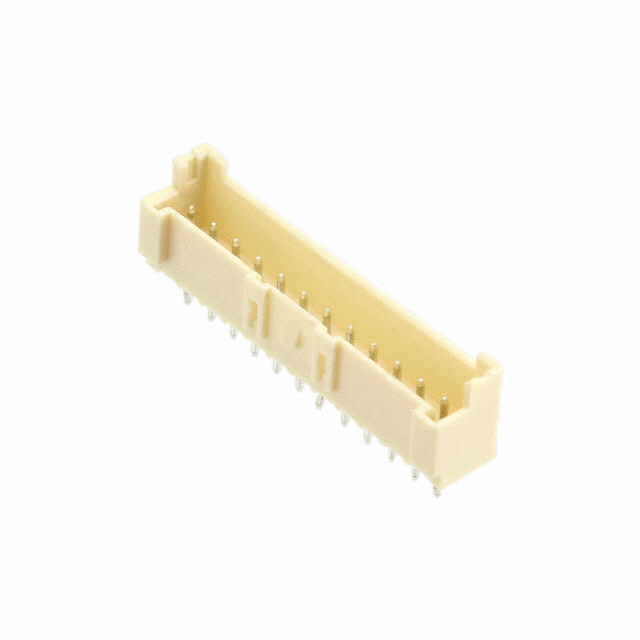

TE Connectivity Raychem Cable Protection 1-1744439-2	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	250 VAC	2.03 µm	80 µin	12	General Purpose Industrial Lighting	Circular	4.2 A	0.346 in	8.8 mm	Copper Alloy	2.03 µm	80 µin	All	0.134 in	3.4 mm	Tin	Male Pin	Locking Ramp	Natural	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	1	Glow Wire Compliant	Header	Kinked Pin Solder	UL94 V-0
TE Connectivity Raychem Cable Protection 1-1744439-4	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	250 VAC	2.03 µm	80 µin	14	General Purpose Industrial Lighting	Circular	4.2 A	0.346 in	8.8 mm	Copper Alloy	2.03 µm	80 µin	All	0.134 in	3.4 mm	Tin	Male Pin	Locking Ramp	Natural	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	1	Glow Wire Compliant	Header	Kinked Pin Solder	UL94 V-0
TE Connectivity Raychem Cable Protection 1744439-5	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	250 VAC	2.03 µm	80 µin		General Purpose Industrial Lighting	Circular	4.2 A	0.346 in	8.8 mm	Copper Alloy	2.03 µm	80 µin	All	0.134 in	3.4 mm	Tin	Male Pin	Locking Ramp	Natural	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	1	Glow Wire Compliant	Header	Kinked Pin Solder	UL94 V-0
