ASDXRRX001 Series

Catalog

SENSOR 1PSID 0.09" 4.5V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure	Port Size	Port Size [x]	Port Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Port Style	Mounting Type	Termination Style	Pressure Type	Applications	Features	Output Type	Output [Min]	Output [Max]	Package / Case	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Output

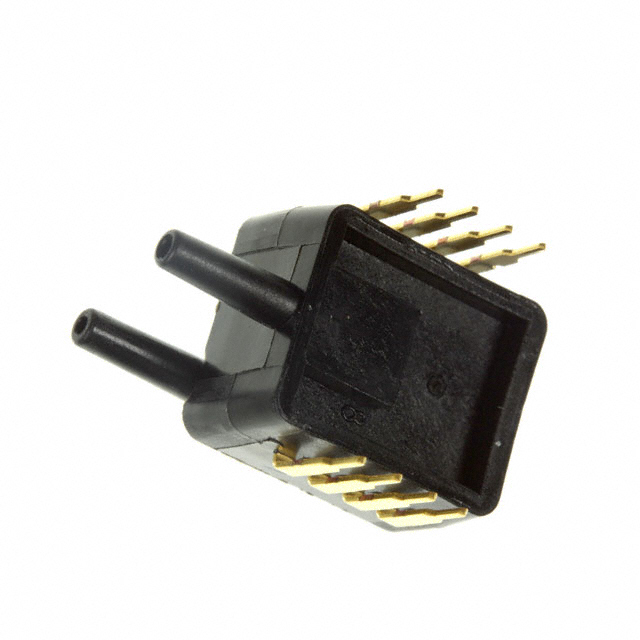

Honeywell Sensing and Productivity Solutions ASDXRRX001PDAA5	4.75 V	5.25 V	2 PSI	13.79 kPa	Dual Male Tube	0.09 "	2.31 mm	-20 C	105 ░C	2 %	Barbless	Through Hole	PC Pin	Differential	Board Mount	Temperature Compensated	Analog Voltage	0.5 V	4.5 V	8-DIP Module
Honeywell Sensing and Productivity Solutions ASDXRRX001PG7A5	4.75 V	5.25 V			Dual Male Tube	0.09 "	2.31 mm	-20 C	105 ░C	2 %	Barbless	Through Hole	PC Pin	Vented Gauge	Board Mount	Temperature Compensated	I2C			8-DIP Module	6.89 kPa	1 PSI	2 PSI	13.79 kPa	12 b
