ED655 Series

Catalog

TERM BLK 7POS SIDE ENTRY 7MM PCB

Part	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Housing Material	Clamp Material - Plating [custom]	Screw Thread	Mounting Type	Current	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level [custom]	Wire Termination	Number of Levels	Color	Pitch	Pitch	Mating Orientation	Positions Per Level

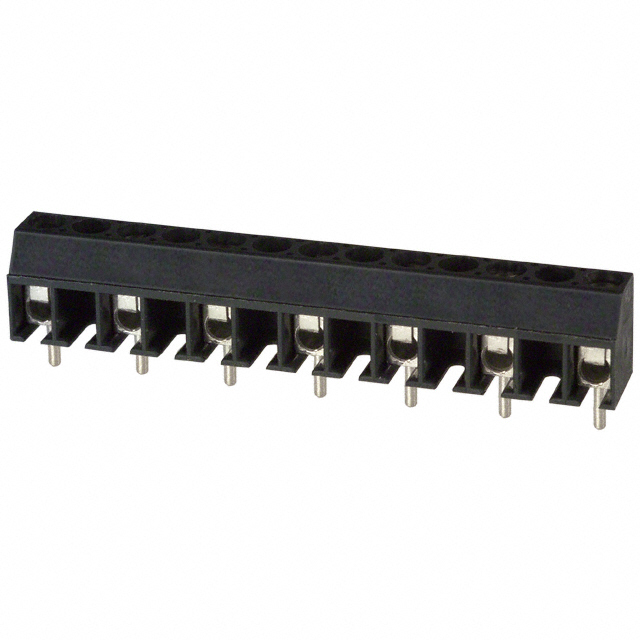

On Shore Technology Inc. ED655/7DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Polyamide (PA) Nylon	Copper Tin Alloy	M2	Through Hole	6 A	28 AWG	16 AWG	7	Screw	1	Gray	7 mm	0.276 in	Horizontal with Board

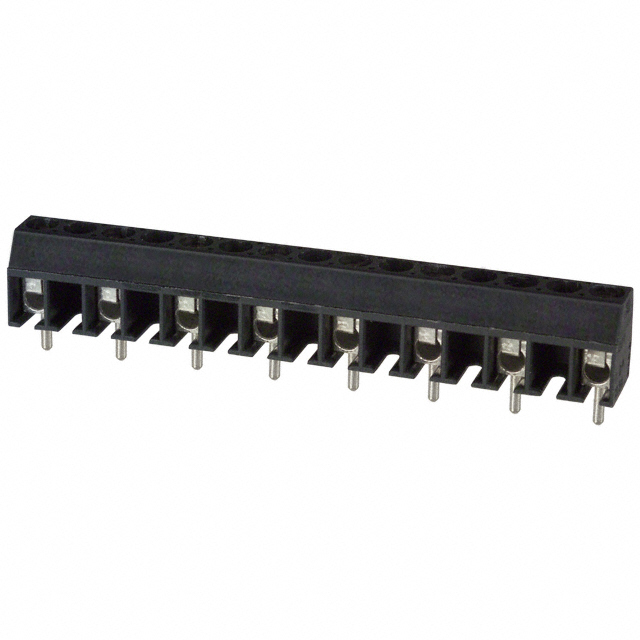

On Shore Technology Inc. ED655/8DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Polyamide (PA) Nylon	Copper Tin Alloy	M2	Through Hole	6 A	28 AWG	16 AWG		Screw	1	Gray	7 mm	0.276 in	Horizontal with Board	8

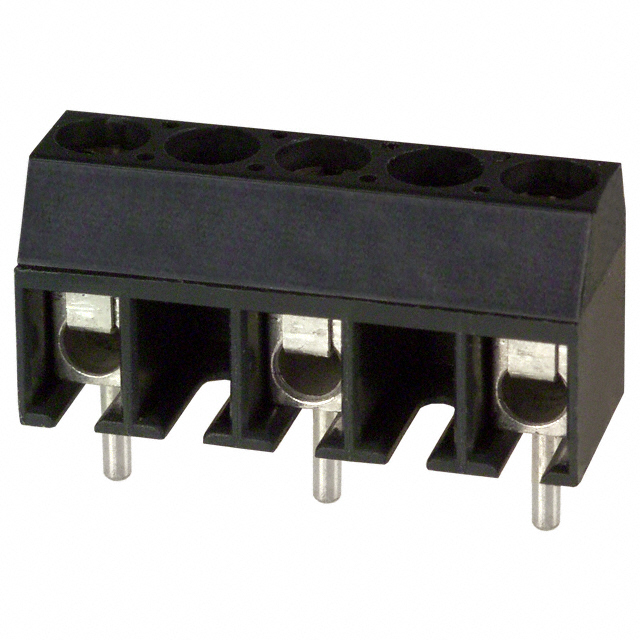

On Shore Technology Inc. ED655/3DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Polyamide (PA) Nylon	Copper Tin Alloy	M2	Through Hole	6 A	28 AWG	16 AWG		Screw	1	Gray	7 mm	0.276 in	Horizontal with Board	3

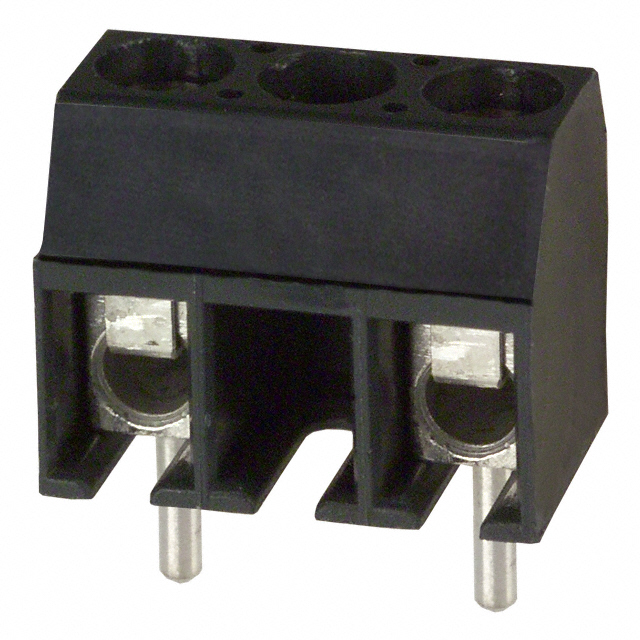

On Shore Technology Inc. ED655/2DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Polyamide (PA) Nylon	Copper Tin Alloy	M2	Through Hole	6 A	28 AWG	16 AWG		Screw	1	Gray	7 mm	0.276 in	Horizontal with Board	2

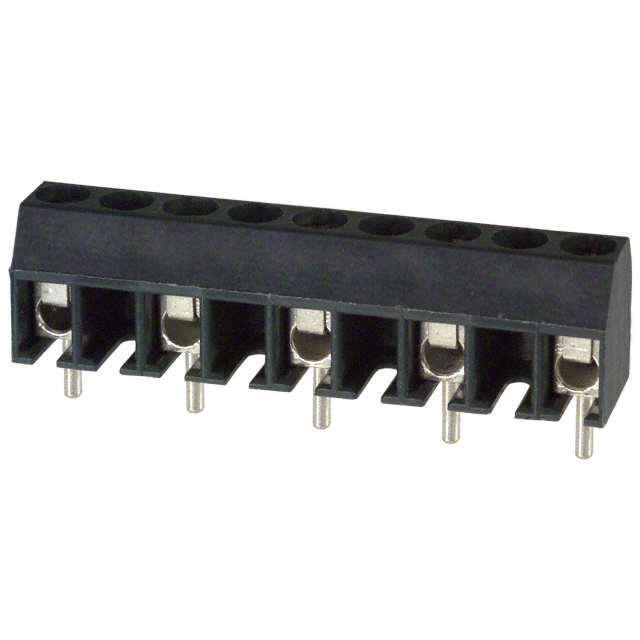

On Shore Technology Inc. ED655/5DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Polyamide (PA) Nylon	Copper Tin Alloy	M2	Through Hole	6 A	28 AWG	16 AWG		Screw	1	Gray	7 mm	0.276 in	Horizontal with Board	5
