LB25SKW Series

Catalog

PUSHBUTTON SWITCH, LB SERIES, DPDT, ON-(ON), PLUNGER FOR CAP

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Switch Function	Circuit	Type	Voltage Rating - AC	Actuator Marking	Actuator Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Illumination Type, Color	Color - Actuator/Cap

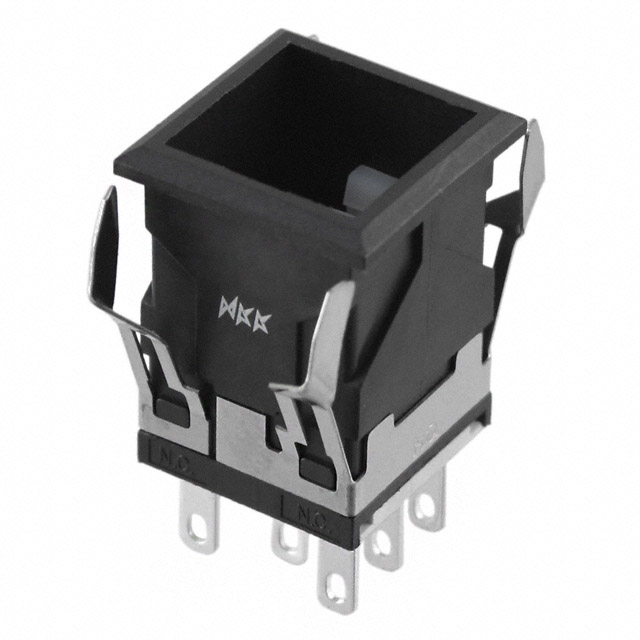

NKK Switches LB25SKW01	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Standard	125 V	No Marking	Plunger for Cap	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A
NKK Switches LB25SKW01-1C-F	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	1.9 VDC	LED Red	Green
NKK Switches LB25SKW01-F	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A			Green
NKK Switches LB25SKW01-5D-JB	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	2 VDC	Amber LED	Clear
NKK Switches LB25SKW01-1C-A	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	1.9 VDC	LED Red	Black
NKK Switches LB25SKW01-5D24-JB	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	24 V	Amber LED	Clear
NKK Switches LB25SKW01-5F-JB	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	2.1 VDC	Green LED	Clear
NKK Switches LB25SKW01-5D05-JB	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	5 VDC	Amber LED	Clear

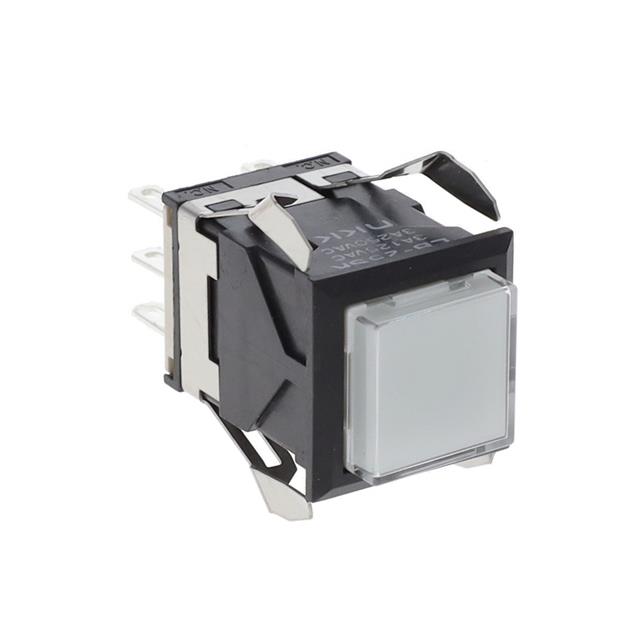

NKK Switches LB25SKW01-5F12-JB	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	12 VDC	Green LED	Clear
NKK Switches LB25SKW01-1C-C	100000 Cycles	1000000 Cycles	30 V	On-Mom	DPDT	Illuminated Standard	125 V	No Marking	Button Square	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	16.2 mm	16.2 mm	Panel Mount Snap-In	3 A	1.9 VDC	LED Red	Red
