COB-DN Series
Manufacturer: Luxtech, LLC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

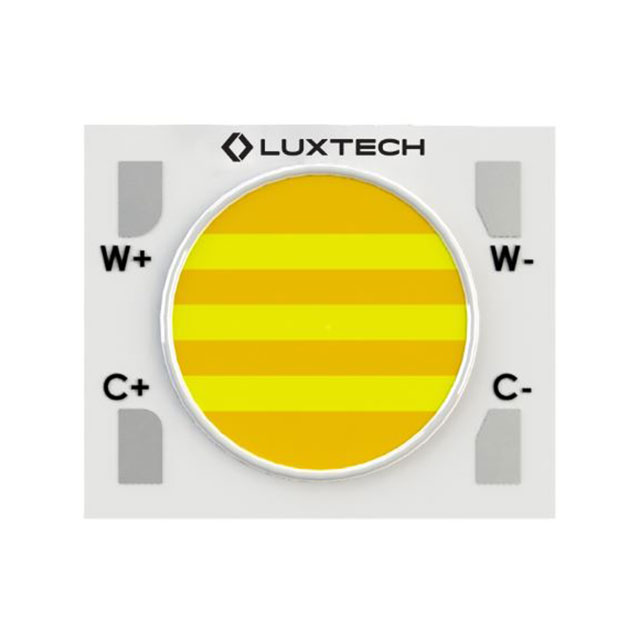

LED COB WHITE RECT 6500K
| Part | Lens Type | CRI (Color Rendering Index) | Configuration | Color | Type | CCT (K) Minimum | CCT (K) Maximum | Voltage - Forward (Vf) (Typ) | Height | Current - Max | Light Emitting Surface (LES) Diameter | Size / Dimension Length | Size / Dimension Width | Current - Test | Lumens/Watt (Value 2) | Lumens/Watt (Value 1) | Luminous Flux | Luminous Flux (Minimum) | Luminous Flux (Maximum) | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luxtech, LLC | Flat | 90 | Rectangle | Cool Warm / White White | Chip On Board (COB) | 2700 K | 6500 K | 35.5 V | 1.6 mm | 800 mA | 16 mm | 24 mm | 20 mm | 700 mA | 97 lm/W | 95 lm/W | 2300 lm 2400 lm | 2300 lm | 2400 lm | 105 °C |
