109E1312 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

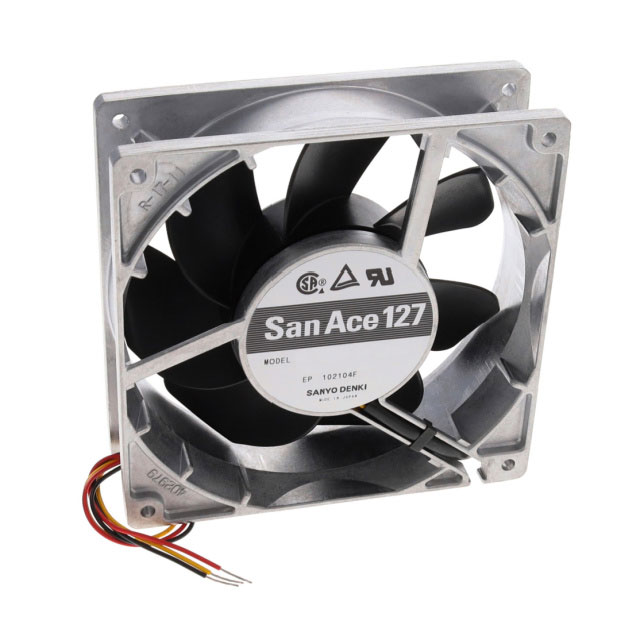

FAN AXIAL 127X38MM 12VDC WIRE
| Part | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Current Rating (Amps) | Bearing Type | RPM | Features | Width [y] | Approval Agency | Weight [custom] | Weight [custom] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Termination | Static Pressure | Static Pressure | Fan Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 170 CFM | 4.76 m³/min | 10.2 VDC | 13.8 VDC | Plastic | Aluminum | 1.4 A | Ball | 3850 RPM | Locked Rotor Sensor | 38 mm | CSA TUV UL | 0.882 lb | 400.07 g | 5 in | 5 " | 12 VDC | -20 ░C | 70 °C | 52 dB | 3 Wire Leads | 0.622 in H2O | 155 Pa | Tubeaxial | 16.8 W |
