FM20C04VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
RECEPTACLE, SMT, DUAL ROW, 2.00
| Part | Insulation Material | Contact Shape | Contact Material | Insulation Color | Contact Type | Ingress Protection | Connector Type | Contact Finish - Mating | Number of Positions Loaded | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Number of Rows [custom] | Mounting Type | Termination | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

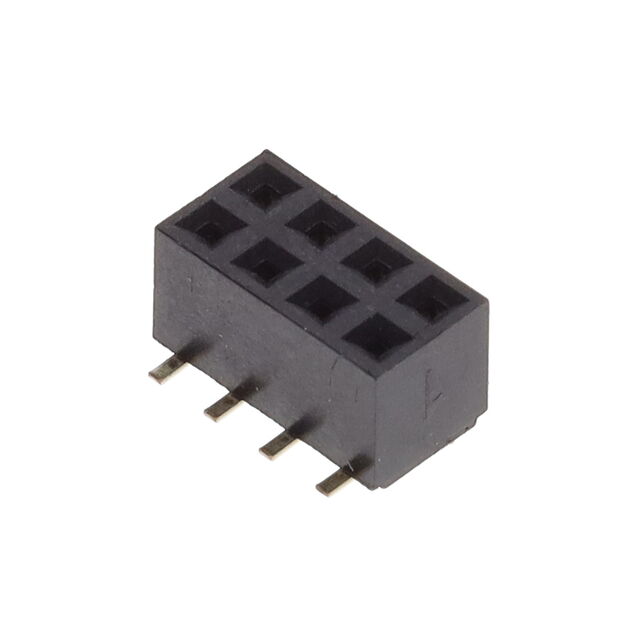

 METZ CONNECT USA Inc. | Nylon 6 Polyamide (PA6) | Square | Copper Alloy | Black | Female Socket | IP00 | Receptacle | Gold | All | Flash | -40 C | 105 ░C | 4.3 mm | 0.169 " | 8 | 0.079 " | 2 mm | 2 mm | 0.079 in | Push-Pull | 2 | Surface Mount | Solder | |

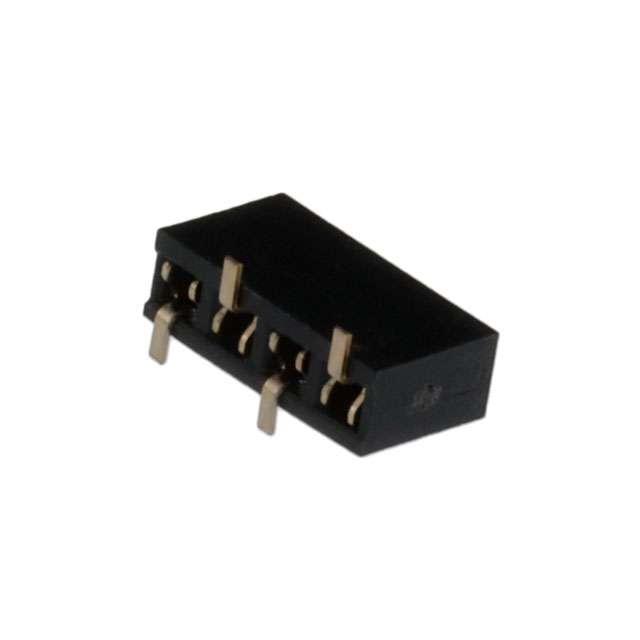

 METZ CONNECT USA Inc. | Nylon 6 Polyamide (PA6) | Square | Copper Alloy | Black | Female Socket | Receptacle | Gold | All | Flash | -40 C | 105 ░C | 4.5 mm | 0.177 in | 4 | 0.079 " | 2 mm | Push-Pull | Surface Mount | Solder | 1 |
