D25S33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

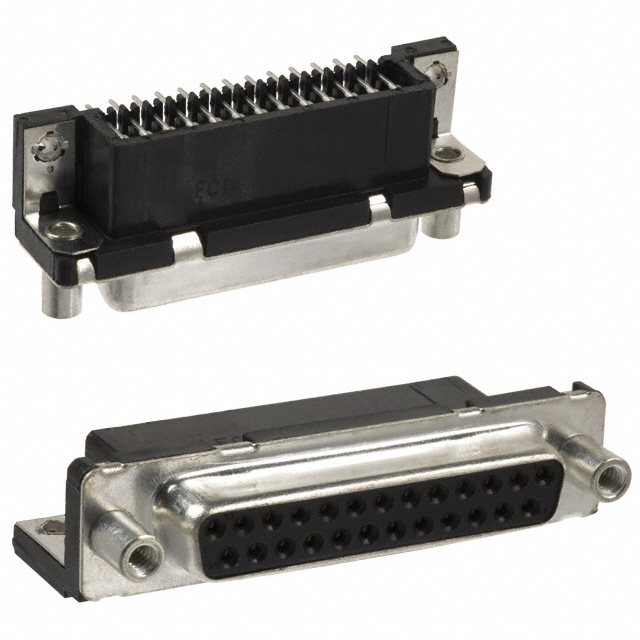

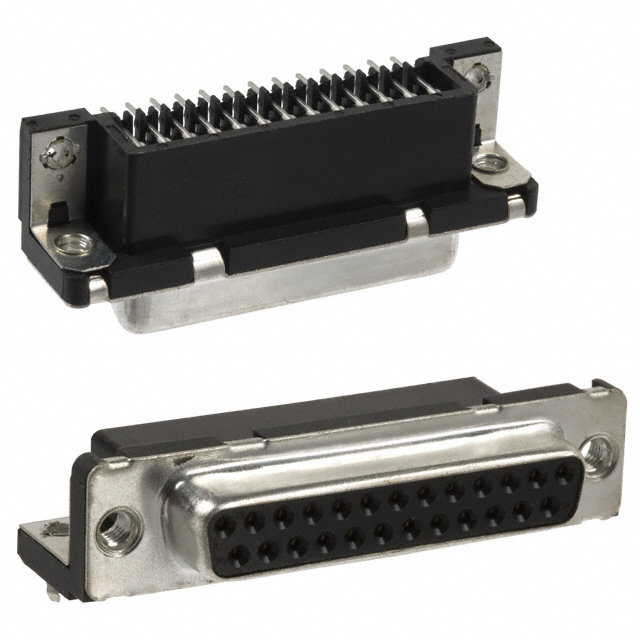

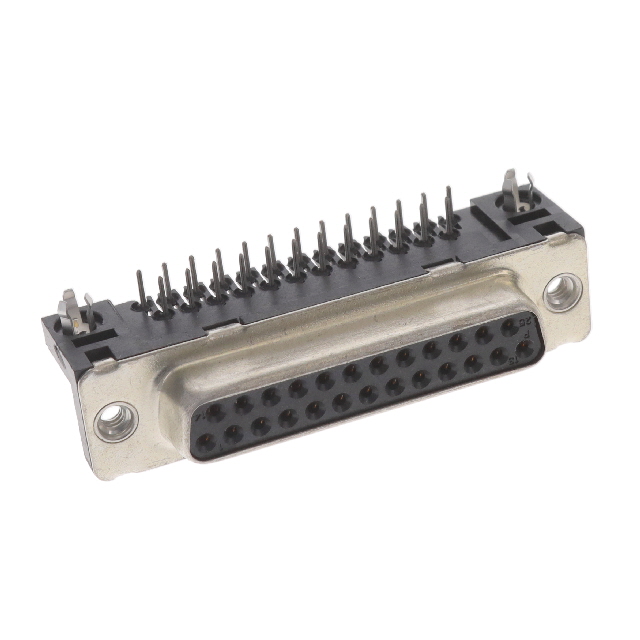

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Backset Spacing | Backset Spacing | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature | Contact Type | Connector Type | Number of Rows | Contact Finish Thickness | Material Flammability Rating | Current Rating (Amps) | Features | Mounting Type | Color | Connector Style | Voltage Rating | Contact Finish | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Female Screwlock (4-40) Mating Side | Signal | Receptacle Female Sockets | 2 | Flash | UL94 V-0 | 5 A | Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Thermoplastic | |||
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Female Screwlock (4-40) Mating Side | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Polyester | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Female Screwlock (4-40) Mating Side | Signal | Receptacle Female Sockets | 2 | Flash | UL94 V-0 | 5 A | Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Polyester | |||
 Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Female Screwlock (4-40) Mating Side | Signal | Receptacle Female Sockets | 2 | Flash | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Polybutylene Terephthalate (PBT) | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Female Screwlock (4-40) Mating Side | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold or Gold GXT™ | Polybutylene Terephthalate (PBT) | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | |
 Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Housing/Shell (4-40) | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold or Gold GXT™ | Polybutylene Terephthalate (PBT) | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | |
 Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Housing/Shell (4-40) | Signal | Receptacle Female Sockets | 2 | Flash | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Polybutylene Terephthalate (PBT) | |||
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Housing/Shell (4-40) | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold or Gold GXT™ | Polyester | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | |
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 225 °C | Solder | Housing/Shell (4-40) | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Thermoplastic | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | 8.08 mm | 0.318 " | Phosphor Bronze | B DB | 3 | -55 °C | 125 °C | Solder | Housing/Shell (M3) | Signal | Receptacle Female Sockets | 2 | UL94 V-0 | 5 A | Board Lock Mounting Brackets | Through Hole Right Angle | Black | D-Sub | 300 VDC | Gold | Thermoplastic | 0.76 Ám | 30 Áin |
