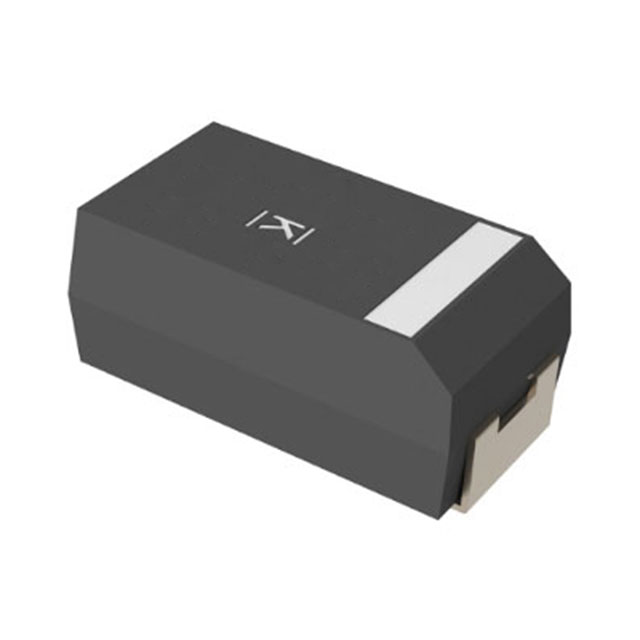

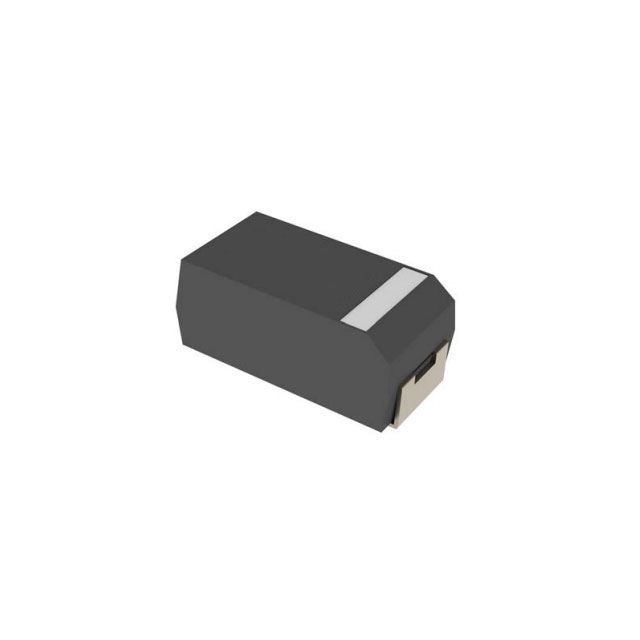

T598B Series

Manufacturer: KEMET

Catalog

CAP TANT POLYMER 100UF 2.5VDC B CASE 20%( 3.5 X 2.8 X 1.9MM) INWARD L SMD 3528-21 0.055 OHM 125°C T/R AUTOMOTIVE AEC-Q200

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Features	Voltage - Rated	Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Manufacturer Size Code	Capacitance	Package / Case	Package / Case	Mounting Type
KEMET T598B107M2R5ATE055	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	55 mOhm	Automotive	2.5 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	100 µF	3528 Metric	1411	Surface Mount
KEMET T598B336M010AHS080	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	80 mOhm	Automotive	10 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	33 ÁF	3528 Metric	1411	Surface Mount
KEMET T598B225M050AHS150	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	150 mOhm	Automotive	50 VDC	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	2.2 µF	3528 Metric	1411	Surface Mount
KEMET T598B336M006ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	80 mOhm	Automotive	6.3 VDC	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	33 ÁF	3528 Metric	1411	Surface Mount

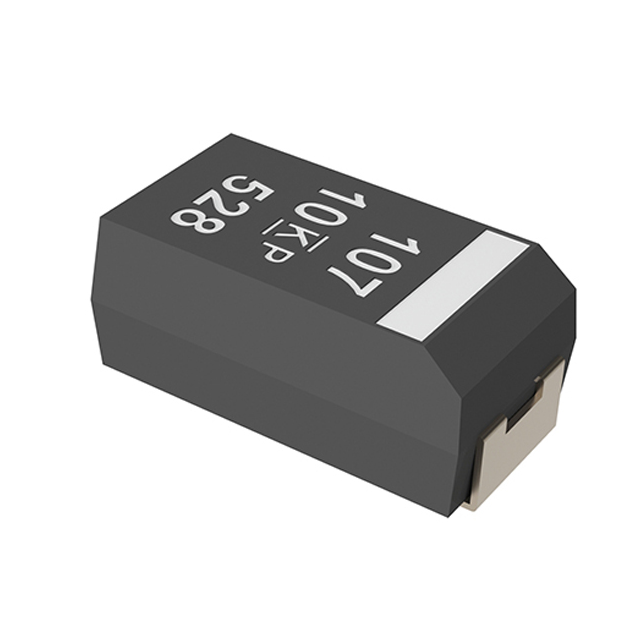

KEMET T598B107M004ATE045	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	45 mOhm	Automotive	4 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	100 µF	3528 Metric	1411	Surface Mount
KEMET T598B476M010ATE070	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	70 mOhm	Automotive	10 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	47 µF	3528 Metric	1411	Surface Mount
KEMET T598B107M006ATE055	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	55 mOhm	Automotive	6.3 VDC	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	100 µF		1210 1411 (3528 Metric)	Surface Mount
KEMET T598B107M004AHS070	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	70 mOhm	Automotive	4 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	100 µF	3528 Metric	1411	Surface Mount
KEMET T598B476M006ATE070	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	70 mOhm	Automotive	6.3 VDC	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	47 µF	3528 Metric	1411	Surface Mount
KEMET T598B336M010AHE070	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	70 mOhm	Automotive	10 V	Molded	AEC-Q200	-55 C	125 °C	2.1 mm	0.083 in	20 %	B	33 ÁF	3528 Metric	1411	Surface Mount
