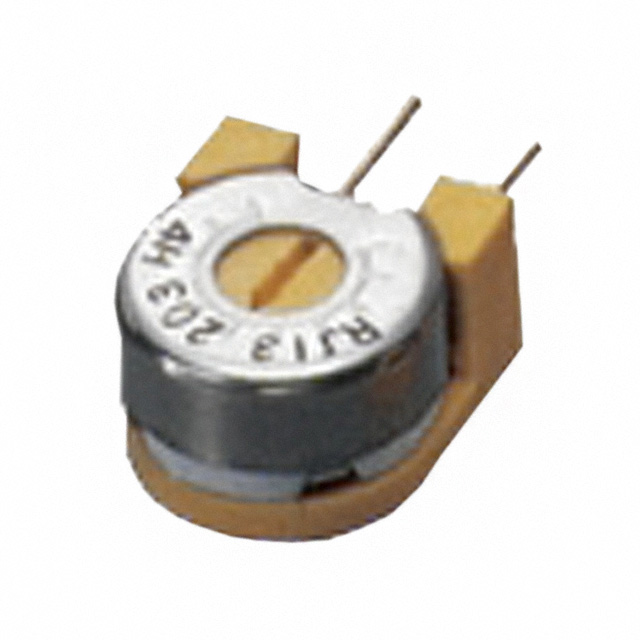

RJ13S Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 20KOHM 0.75W PC PIN SIDE

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Adjustment Type	Resistive Material	Tolerance	Temperature Coefficient	Power (Watts)	Power (Watts)	Termination Style	Mounting Type	Resistance	Number of Turns
Nidec Components Corporation RJ-13SR203	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	20 kOhms	1
Nidec Components Corporation RJ-13S203	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	20 kOhms	1
Nidec Components Corporation RJ-13SR103	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	10000 Ohms	1
Nidec Components Corporation RJ-13S500	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	50 Ohms	1
Nidec Components Corporation RJ-13S204	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	200000 Ohms	1
Nidec Components Corporation RJ-13SR200	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	250 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	20 Ohms	1
Nidec Components Corporation RJ-13S102	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	1000 Ohms	1
Nidec Components Corporation RJ-13S200	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	250 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	20 Ohms	1

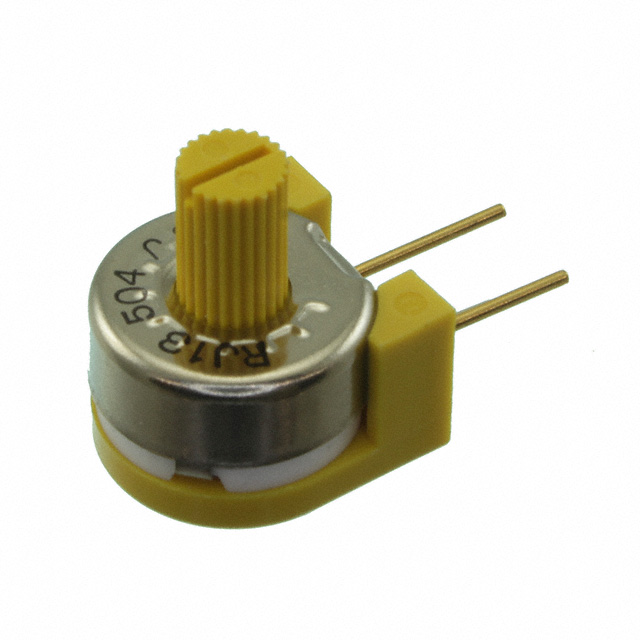

Nidec Components Corporation RJ-13SR504	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole		1
Nidec Components Corporation RJ-13SR503	0.492 "	12.5 mm	0.535 in	13.6 mm	Side Adjustment	Cermet	10 %	100 ppm/°C	3/4W	0.75 W	PC Pins	Through Hole	50000 Ohms	1
