BS5P-SHF Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

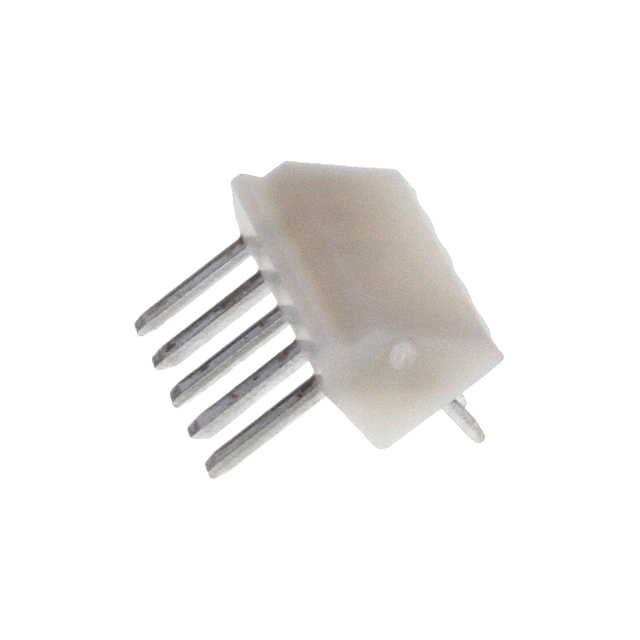

CONN HEADER R/A 5POS 2.5MM
| Part | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Material | Mounting Type | Fastening Type | Material Flammability Rating | Contact Shape | Voltage Rating | Contact Finish - Post | Connector Type | Contact Type | Number of Positions | Number of Rows | Insulation Material | Insulation Color | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Shrouding | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.118 in | 3 mm | 3 A | 5.6 mm | 0.22 in | 2.5 mm | 0.098 in | All | Brass | Right Angle Through Hole | Friction Lock | UL94 V-0 | Square | 250 V | Tin | Header | Male Pin | 5 | 1 | Nylon 6/6 Polyamide (PA66) | Natural | 0.217 in | 5.5 mm | 85 °C | -25 °C | Solder | Unshrouded | Board to Cable/Wire |
