Ultra-Fast 250 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

QUICK DISCONNECT TERMINAL, ULTRA-FAST PLUS FASTON SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Part	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Color	Contact Finish	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Width [x]	Tab Width [x]	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Termination	Terminal Type	Tab Thickness	Tab Thickness	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material	Note	Style	Terminal Size	Terminal Size	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Number of Positions	Stacking Direction

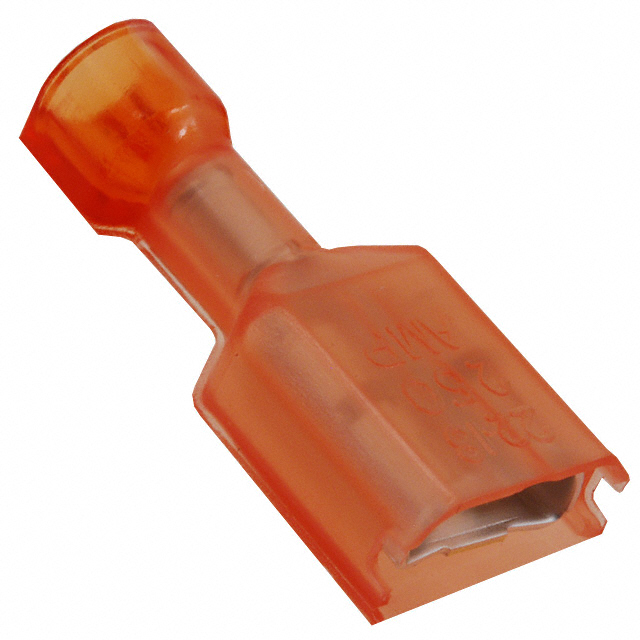

TE Connectivity AMP Connectors 2-520405-2	0.135 in	3.43 mm	0.06 in	1.52 mm	Red	Tin	Fully Insulated	21.72 mm	0.855 in	6.35 mm	0.25 in	Female	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass
TE Connectivity AMP Connectors 2-520183-2					Red	Tin	Fully Insulated	21.72 mm	0.855 in	6.35 mm	0.25 in	Female	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass
TE Connectivity AMP Connectors 5-520263-2					Red	Tin	Fully Insulated	23.75 mm	0.935 "	6.35 mm	0.25 in	Female	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass
TE Connectivity AMP Connectors 2-520103-2

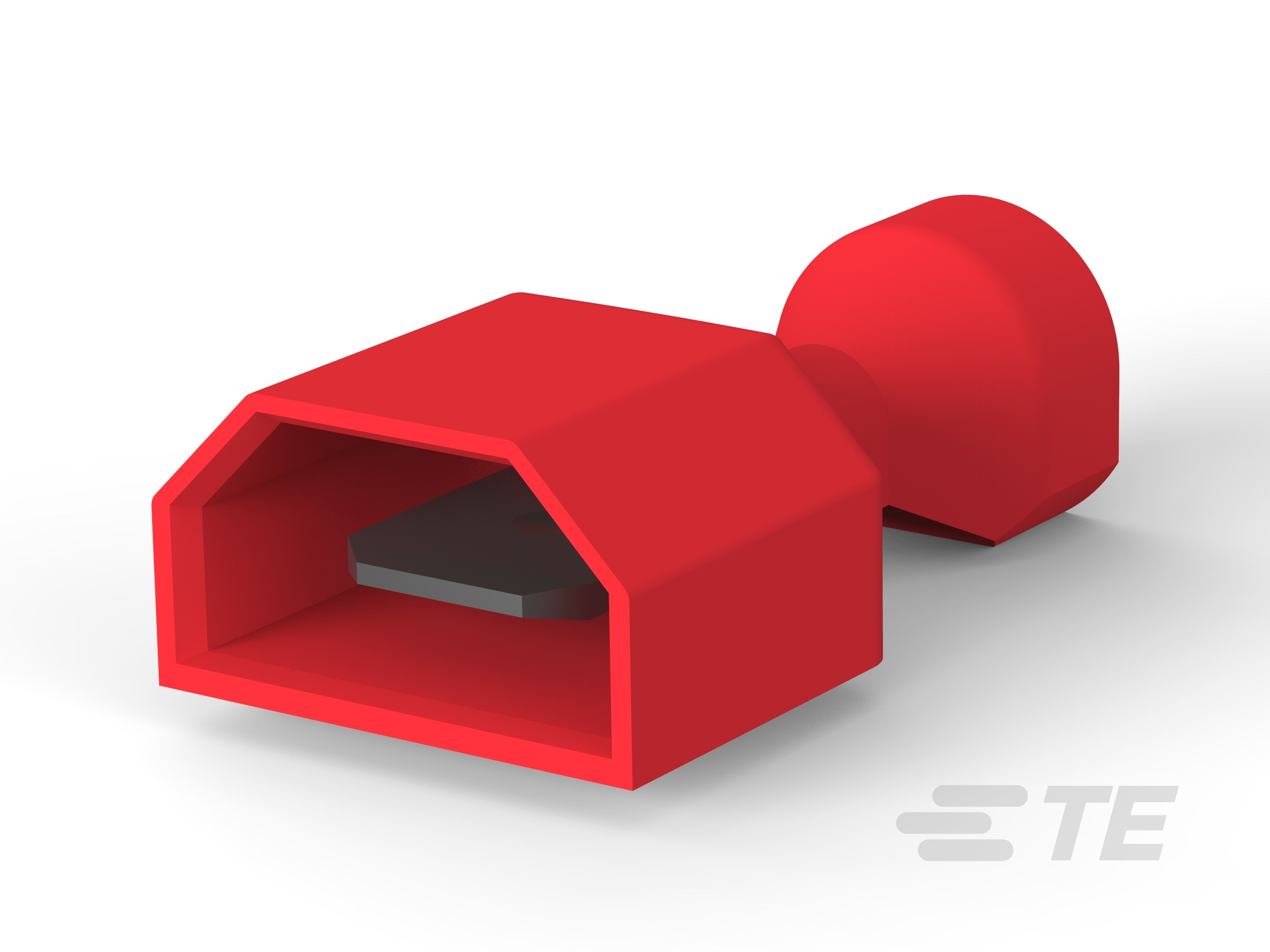

TE Connectivity AMP Connectors 2-521192-2					Red	Tin	Fully Insulated	23.75 mm	0.935 "	6.35 mm	0.25 in	Male	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass	5.84 mm	0.23 in
TE Connectivity AMP Connectors 2-520184-2					Red	Tin	Fully Insulated	21.72 mm	0.855 in	6.35 mm	0.25 in	Female	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass
TE Connectivity AMP Connectors 3-520141-2					Blue	Tin	Fully Insulated	23.75 mm	0.935 "	6.35 mm	0.25 in	Female	16 AWG	14 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass	6.6 mm	0.26 in

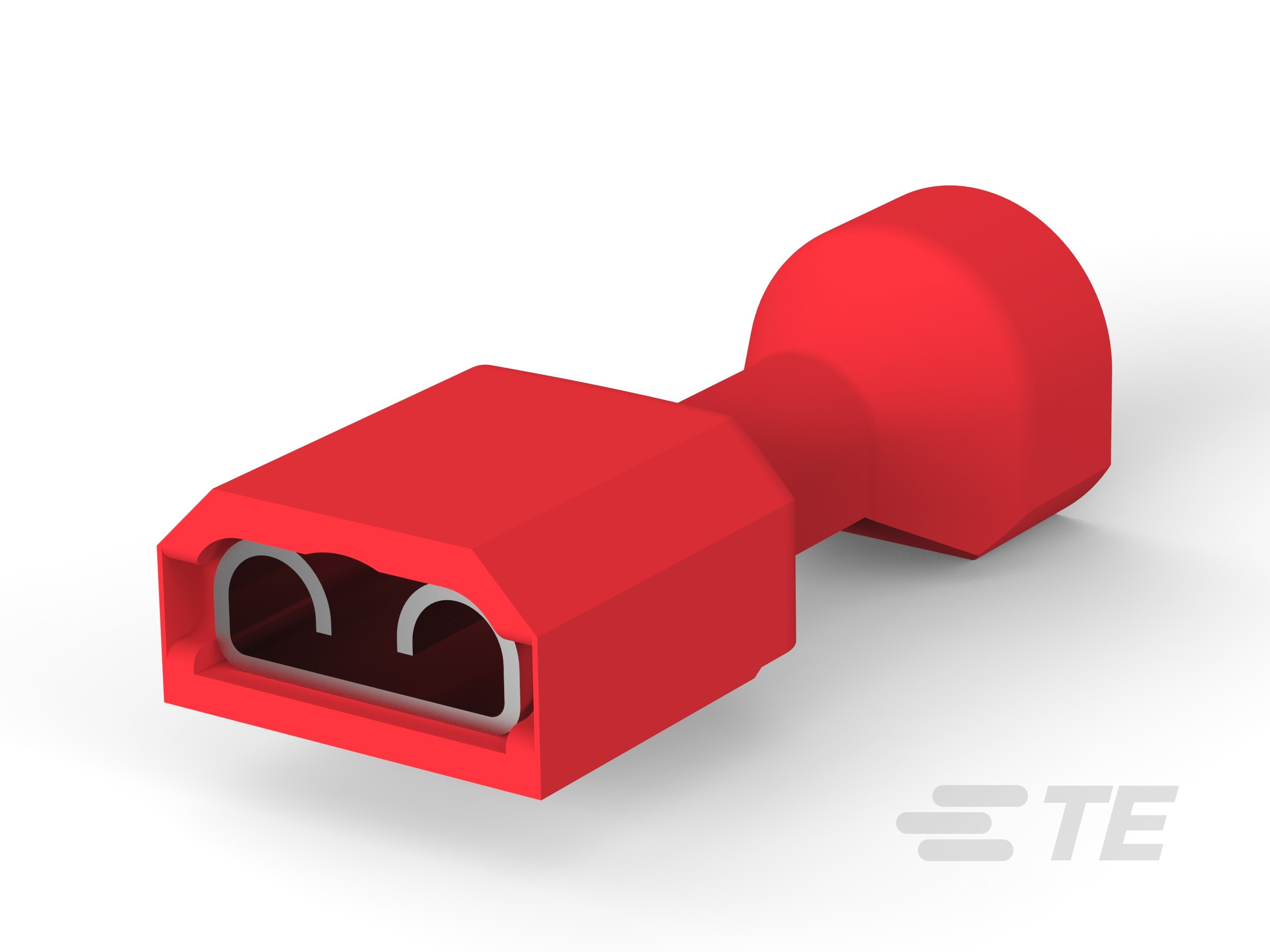

TE Connectivity AMP Connectors 2-520264-2					Red	Tin	Fully Insulated	23.75 mm	0.935 "	6.35 mm	0.25 in	Female	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass	5.84 mm	0.23 in
TE Connectivity AMP Connectors 2-521144-2					Red	Tin	Fully Insulated	23.75 mm	0.935 "	6.35 mm	0.25 in	Male	22 AWG	17.5 AWG	Free Hanging (In-Line)	Crimp	Standard	0.81 mm	0.032 in	Brass	5.84 mm	0.23 in
TE Connectivity AMP Connectors 344079-1					Black							Female Receptacle			Free Hanging (In-Line)		Quick Connect Disconnect						Nylon	Contacts Not Included	Housing	0.25 in	6.35 mm	Quick Connects	6.35 mm	0.25 in	8	Top to Bottom and Side to Side
