046992 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 14POS 4.20MM

Part	Color	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Connector Type	Number of Rows	Note	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Termination	Features
Molex 0469921410	Black	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA6) Nylon 6	-40 °C	105 ░C	14	Crimp
Molex 0469920440	Blue	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	4	Crimp	Glow Wire Compliant
Molex 0469921220	Red	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	12	Crimp	Glow Wire Compliant
Molex 0469920650
Molex 0469920840	Blue	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	8	Crimp	Glow Wire Compliant

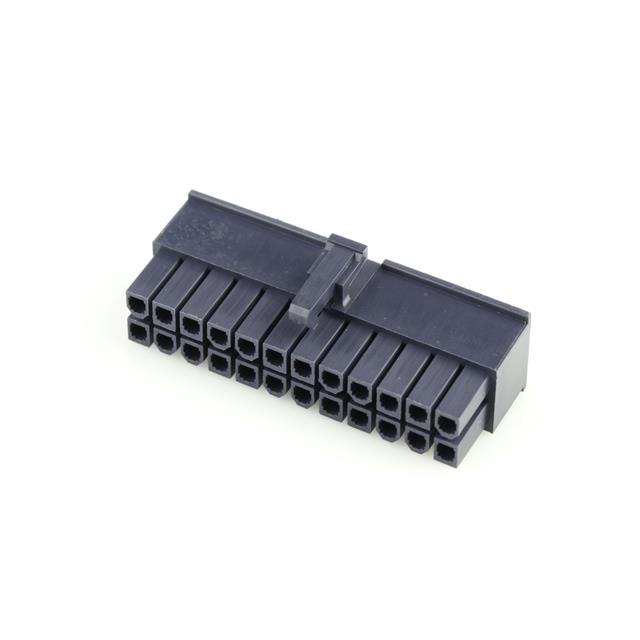

Molex 0469922410	Black	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA6) Nylon 6	-40 °C	105 ░C	24	Crimp
Molex 0469920820	Red	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	8	Crimp	Glow Wire Compliant
Molex 0469921400	Black	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA6) Nylon 6	-40 °C	105 ░C	14	Crimp
Molex 0469920450
Molex 0469920420	Red	Female Socket	Free Hanging (In-Line)	4.2 mm	0.165 in	4.2 mm	0.165 in	Receptacle	2	Contacts Not Included	Latch Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	4	Crimp	Glow Wire Compliant
