LDD-700 Series

Catalog

LED DRIVER CC BUCK 2-52V 700MA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Type	Features	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Min) [Min]	Dimming	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Topology	Ratings	Termination Style	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. LDD-700H	85 °C	-40 C	700 mA	Constant Current	OTP Remote On/Off SCP	97 %	52 V	2 V	9 V	PWM	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	24-DIP Module 9 Leads	Through Hole	1	CE	56 V	Buck

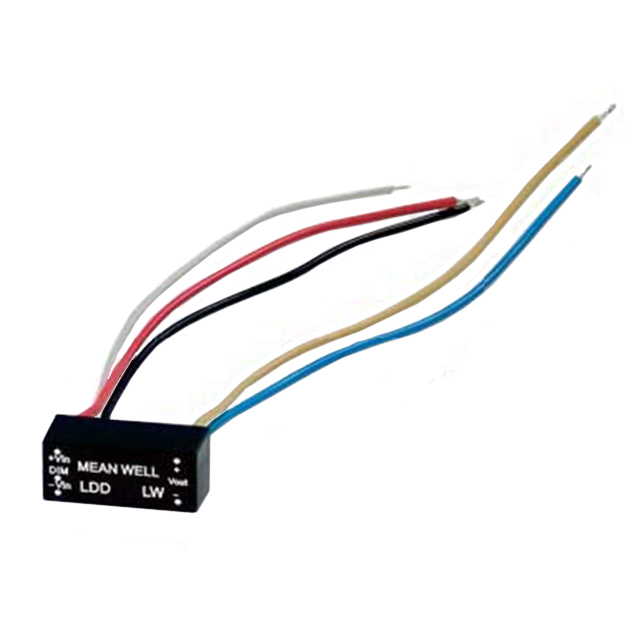

MEAN WELL USA Inc. LDD-700LW	85 °C	-40 C	700 mA	Constant Current	OTP Remote On/Off SCP	95 %	30 VDC	2 V	9 V	PWM	0.39 in	0.89 in	8.9 mm	0.35 in	22.6 mm	9.9 mm		Chassis Mount	1	CE	36 V	Buck	IP67	Wire Leads
MEAN WELL USA Inc. LDD-700LS	85 °C	-40 C	700 mA	Constant Current	OTP Remote On/Off SCP	95 %	28 V	2 V	9 V	PWM	0.41 "	1 in	9.3 mm	0.37 in	25.4 mm	10.5 mm	16-SMD Module	Surface Mount	1	CE	32 V	Buck
MEAN WELL USA Inc. LDD-700H-DA	85 °C	-40 °C	700 mA	Constant Current	Remote On/Off SCP	95 %	45 V	3 V	6 V	Analog PWM	0.93 in	1.6 "	10.1 mm	0.4 "	40.6 mm	23.5 mm	16-DIP Module 8 Leads	Through Hole	1	CE	50 V	Buck
MEAN WELL USA Inc. LDD-700HW	85 °C	-40 C	700 mA	Constant Current	OTP Remote On/Off SCP	97 %	52 V	2 V	9 V	PWM	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm		Chassis Mount	1	CE	56 V	Buck	IP67	Wire Leads
MEAN WELL USA Inc. LDD-700HS	85 °C	-40 C	700 mA	Constant Current	OTP Remote On/Off SCP	96 %	52 V	2 V	9 V	PWM	0.8 "	1.25 in		0.45 in	31.8 mm		24-SMD Module 18 Leads	Surface Mount	1	CE	56 V	Buck			20.3 mm	11.4 mm
