GBC16S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 16POS 2.54MM

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Number of Rows	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Style	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Termination	Insulation Material	Contact Type	Contact Finish - Post	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating
Sullins Connector Solutions GBC16SFBN-M30	Push-Pull	-65 ░C	150 °C	16	Gold	0.1 in	2.54 mm	All	Breakaway Header	3 A	1	Surface Mount	2.54 µm	100 µin	Square	Board to Board Cable	Unshrouded	0.318 "	8.08 mm	Black	0.1 in	2.54 mm	Solder	Nylon 9T Polyamide (PA9T)	Male Pin	Tin	Phosphor Bronze	UL94 V-0	10 çin	0.25 çm

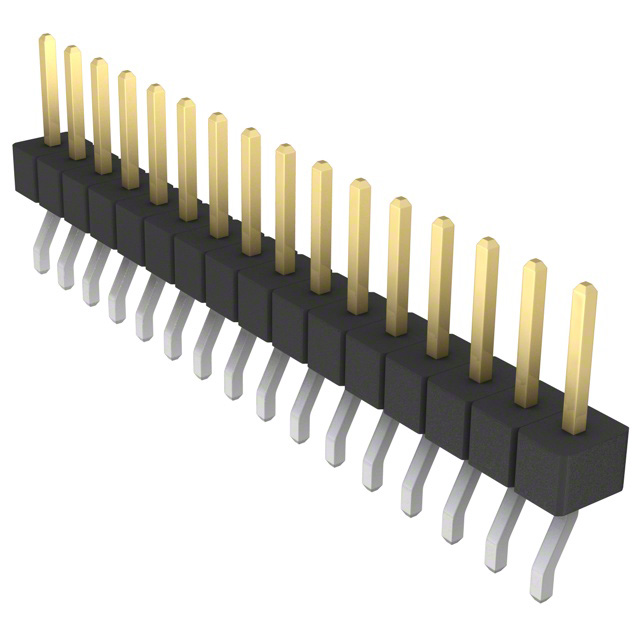

Sullins Connector Solutions GBC16SBSN-M89	Push-Pull	-65 ░C	150 °C	16	Gold	0.14 in	3.56 mm	All	Breakaway Header	3 A	1	Surface Mount Right Angle	2.54 µm	100 µin	Square	Board to Board Cable	Unshrouded	0.23 in		Black	0.1 in	2.54 mm	Solder	Nylon 9T Polyamide (PA9T)	Male Pin	Tin	Phosphor Bronze	UL94 V-0	10 çin	0.25 çm	5.84 mm
Sullins Connector Solutions GBC16SABN-M30	Push-Pull	-65 ░C	150 °C	16	Gold	0.1 in	2.54 mm	All	Breakaway Header	3 A	1	Surface Mount	2.54 µm	100 µin	Square	Board to Board Cable	Unshrouded	0.23 in		Black	0.1 in	2.54 mm	Solder	Nylon 9T Polyamide (PA9T)	Male Pin	Tin	Phosphor Bronze	UL94 V-0	10 çin	0.25 çm	5.84 mm

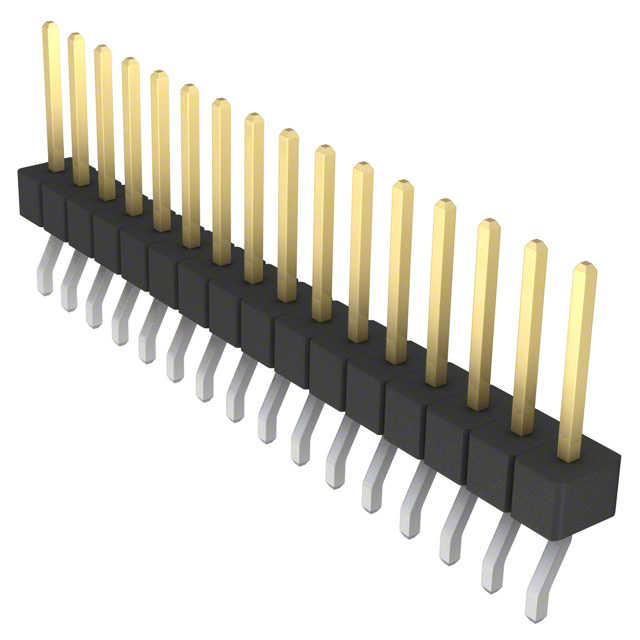

Sullins Connector Solutions GBC16SGSN-M89	Push-Pull	-65 ░C	150 °C	16	Gold	0.14 in	3.56 mm	All	Breakaway Header	3 A	1	Surface Mount Right Angle	2.54 µm	100 µin	Square	Board to Board Cable	Unshrouded	0.318 "	8.08 mm	Black	0.1 in	2.54 mm	Solder	Nylon 9T Polyamide (PA9T)	Male Pin	Tin	Phosphor Bronze	UL94 V-0	10 çin	0.25 çm
