G33KAC-P Series
Manufacturer: ODU
Beta
⌘K

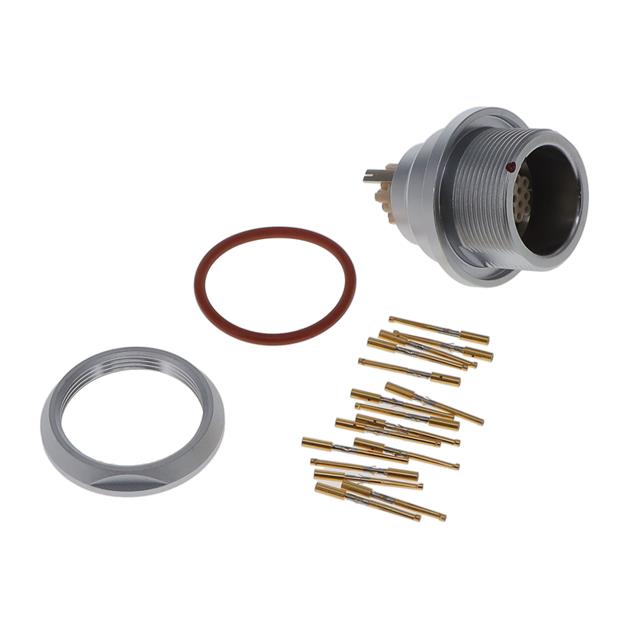

ODU MINI-SNAP RECEPT, STY 3, SZ
| Part | Contact Material | Ingress Protection | Mounting Feature | Features | Shell Size - Insert | Shell Finish | Fastening Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Color | Contact Finish - Mating | Orientation | Shell Material | Voltage Rating | Mounting Type | Connector Type | Applications | Insert Material | Shielding | Current Rating (Amps) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Ground | 3 TPI | Chrome over Nickel | Push-Pull | 30 | 120 °C | -40 C | Metal | Silver | Gold | A | Brass | 300 VDC | Panel Mount | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Shielded | 7.5 A | ||
Brass | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Ground | 3 TPI | Chrome over Nickel | Push-Pull | 120 °C | -40 C | Metal | Silver | Gold | A | Brass | 600 V | Panel Mount | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Shielded | 18 A | |||
Brass | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Medical (IEC 60601 (2 MOOP/2 MOPP)) | 3 TPI | Chrome over Nickel | Push-Pull | 16 | 120 °C | -40 C | Metal | Silver | Gold | A | Brass | 48 VDC | Panel Mount | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Shielded | 10 A | Crimp | |
Brass | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Ground | 3 TPI | Chrome over Nickel | Push-Pull | 30 | 120 °C | -40 C | Metal | Silver | Gold | A | Brass | 300 VDC | Panel Mount Through Hole | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Shielded | 6 A | Solder |
