501912 Series

0.30mm Pitch Easy-On FPC Connector, Right-Angle, Surface Mount, Bottom Contact Style, 1.80mm Mated Height, 33 Circuits

Manufacturer: Molex

Catalog

0.30mm Pitch Easy-On FPC Connector, Right-Angle, Surface Mount, Bottom Contact Style, 1.80mm Mated Height, 33 Circuits

Part	FFC, FCB Thickness [custom]	Housing Material	Voltage Rating	Actuator Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Pitch	Pitch	Cable End Type	Locking Feature	Connector/Contact Type	Contact Finish	Flat Flex Type	Contact Material	Number of Positions [custom]	Termination	Current Rating (Amps)	Mating Cycles	Number of Positions	Number of Positions

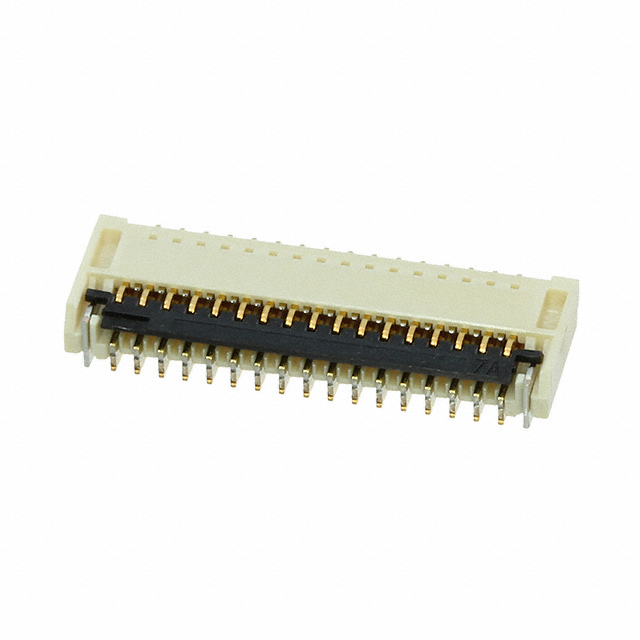

Molex 5019123390	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy	33	Solder	0.2 A	20
Molex 5019121590	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	15
Molex 5019122190	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	21

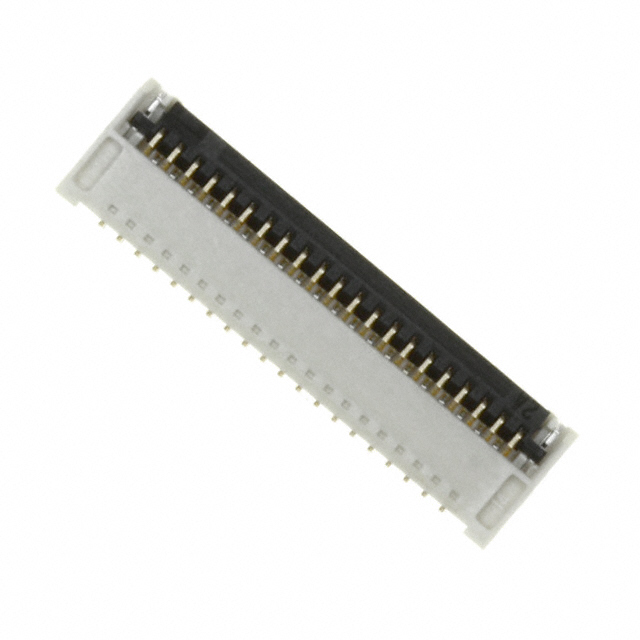

Molex 5019124190	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	41

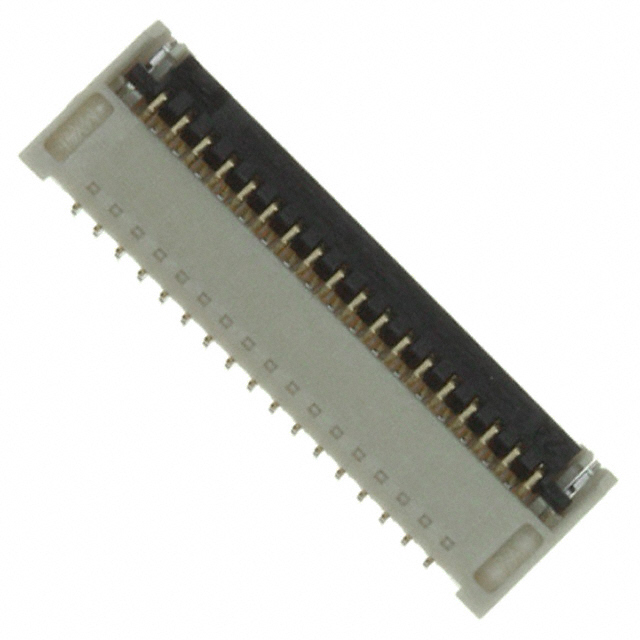

Molex 501912-3590	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	35
Molex 5019123790	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	37

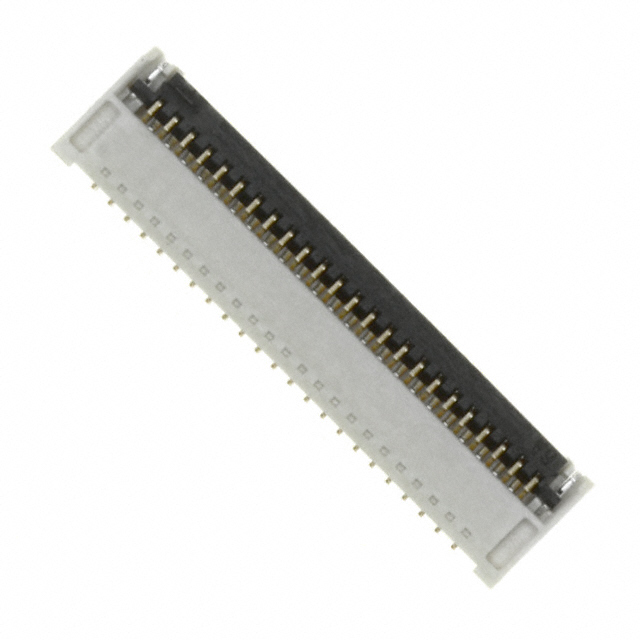

Molex 5019124790	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20		47

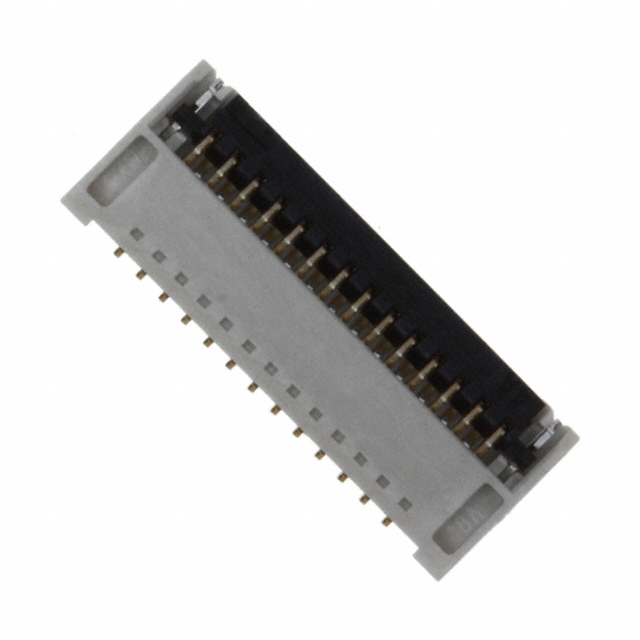

Molex 501912-2790	0.2 mm	Polymer Glass Filled	50 V	Polymer Glass Filled	UL94 V-0	85 °C	-20 ░C	Solder Retention	Right Angle Surface Mount	0.012 in	0.3 mm	Tapered	Flip Lock	Contacts Bottom	Gold	FPC	Copper Alloy		Solder	0.2 A	20	27
