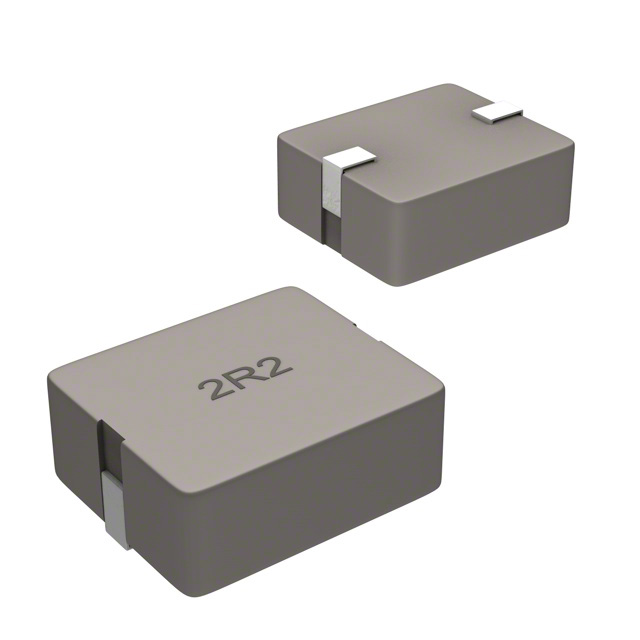

SRP7030F Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 470NH 17A 0.0045OHM SM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Current Rating (Amps) | Inductance Frequency - Test | Material - Core | Inductance | Current - Saturation (Isat) | Mounting Type | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 17 A | 100 kHz | Iron | 470 nH | 19 A | Surface Mount | 4.5 mOhm | |||
 Bourns Inc. | -40 C | 125 °C | Shielded | Nonstandard | 7 mm | 0.307 " | 0.276 in | 7.8 mm | 20 % | 13 A | 100 kHz | Iron | 820 nH | 20 A | Surface Mount | 8 mOhm | 0.126 in | 3.2 mm | ||||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 10 A | 100 kHz | Iron | 1.5 µH | Surface Mount | 10 mOhm | ||||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 4.5 A | 100 kHz | Iron | 6.8 µH | 5.5 A | Surface Mount | 50 mOhm | |||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 7 A | 100 kHz | Iron | 2.2 µH | 11 A | Surface Mount | 20 mOhm | |||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 12 Amps | 100 kHz | Iron | 820 nH | 14 A | Surface Mount | 6.6 mOhm | |||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 32 A | 100 kHz | Iron | 100 nH | 60 A | Surface Mount | 1.7 mOhm | |||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 11 A | 100 kHz | Iron | 1 µH | 13 A | Surface Mount | 7 mOhm | |||
Bourns Inc. | -55 C | 125 °C | Shielded | Nonstandard | 0.118 " | 3 mm | Flat Wire | 6.5 mm | 0.299 " | 0.256 " | 7.6 mm | 20 % | 7 A | 100 kHz | Iron | 3.3 µH | 10 A | Surface Mount | 24 mOhm |
