R31675 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

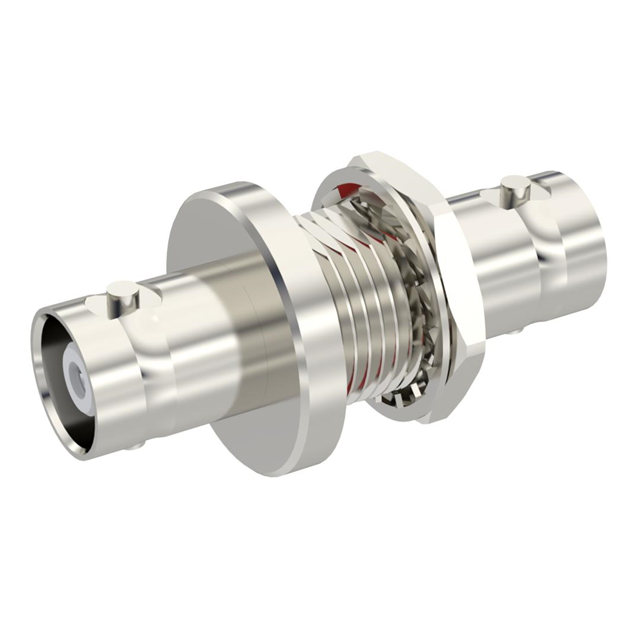

BNC HT-MHV / FEMALE-FEMALE ADAPT
| Part | Body Material | Center Contact Material | Body Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Mounting Type | Adapter Type | Conversion Type | Convert From (Adapter End) | Frequency - Max [Max] | Center Contact Plating | Convert To (Adapter End) | Center Gender | Fastening Type | Adapter Series | Impedance | Mounting Feature | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Beryllium Copper Brass | Nickel | Polyethylene (PE) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 500 | Panel Mount | Jack to Jack | Same Series | BNC Jack Female Socket | 2 GHz | Silver | BNC Jack Female Socket | Female to Female | Bayonet Lock | BNC to BNC | 50 Ohms | Bulkhead | Straight |
