AGC11 Series

Catalog

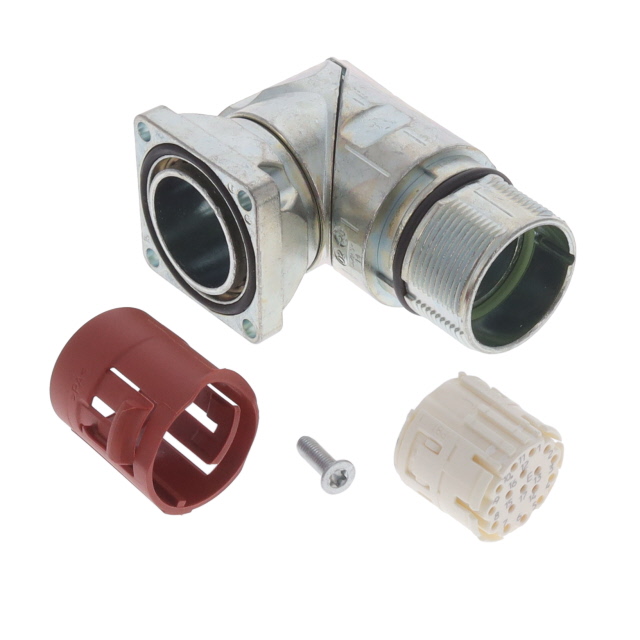

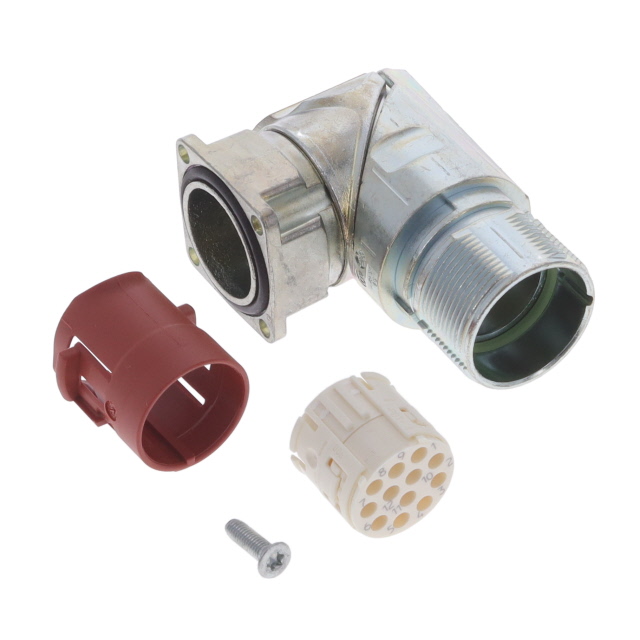

CONN RCPT HSG MALE 17P PNL MT RA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insert Material	Note	Includes	Features	Fastening Type	Housing Color	Shell Material	Mounting Type	Material Flammability Rating	Type	Shielding	Connector Type	Ingress Protection	Mounting Feature	Shell Size - Insert	Shell Finish	Orientation	Number of Positions
TE Intercontec AGC113N00001215000	-20 ░C	130 °C	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	1 Backshell 1 Connector 1 O-Ring	Backshell Rotatable	Push-Twist	Silver	Zinc Die Cast	Panel Mount Right Angle	UL94 V-0	For Male Pins	Unshielded	Receptacle Housing	IP66 IP67	Flange	M23-17	Chromate	Keyed
TE Intercontec AGC110N00001115000	-20 ░C	130 °C	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	1 Backshell 1 Connector 1 O-Ring	Backshell Rotatable	Push-Twist	Silver	Zinc Die Cast	Panel Mount Right Angle	UL94 V-0	For Male Pins	Unshielded	Receptacle Housing	IP66 IP67	Flange	M23-12	Chromate	Keyed	12
TE Intercontec AGC114N00001215000	-20 ░C	130 °C	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	1 Backshell 1 Connector 1 O-Ring	Backshell Rotatable	Push-Twist	Silver	Zinc Die Cast	Panel Mount Right Angle	UL94 V-0	For Male Pins	Unshielded	Receptacle Housing	IP66 IP67	Flange	M23-12	Chromate	Keyed	12
TE Intercontec AGC110N00001215000	-20 ░C	130 °C	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	1 Backshell 1 Connector 1 O-Ring	Backshell Rotatable	Push-Twist	Silver	Zinc Die Cast	Panel Mount Right Angle	UL94 V-0	For Male Pins	Unshielded	Receptacle Housing	IP66 IP67	Flange	M23-12	Chromate	Keyed	12
TE Intercontec AGC113N00001200000	-20 ░C	130 °C	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	1 Backshell 1 Connector 1 O-Ring	Backshell Rotatable	Push-Twist	Silver	Zinc Die Cast	Panel Mount Right Angle	UL94 V-0	For Male Pins	Unshielded	Receptacle Housing	IP66 IP67	Flange	M23-17	Chromate	Keyed
