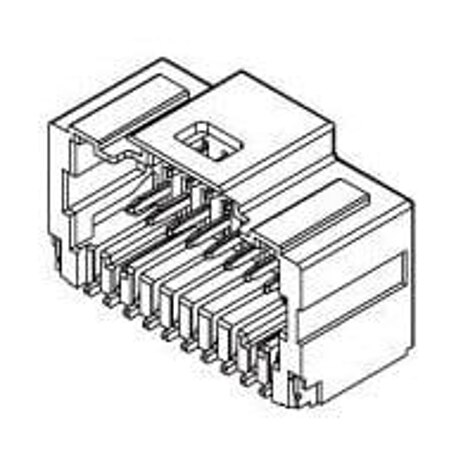

Headers & Wire Housings PICOCLASP 1.00MM HDR 2X15P RA
Headers & Wire Housings PICOCLASP 1.00MM HDR 2X15P RA
| Part | Applications | Mounting Type | Contact Shape | Insulation Height | Insulation Height | Fastening Type | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating | Style | Contact Finish - Mating | Insulation Color | Connector Type | Number of Positions | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Material | Number of Rows [custom] | Insulation Material | Termination | Material Flammability Rating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

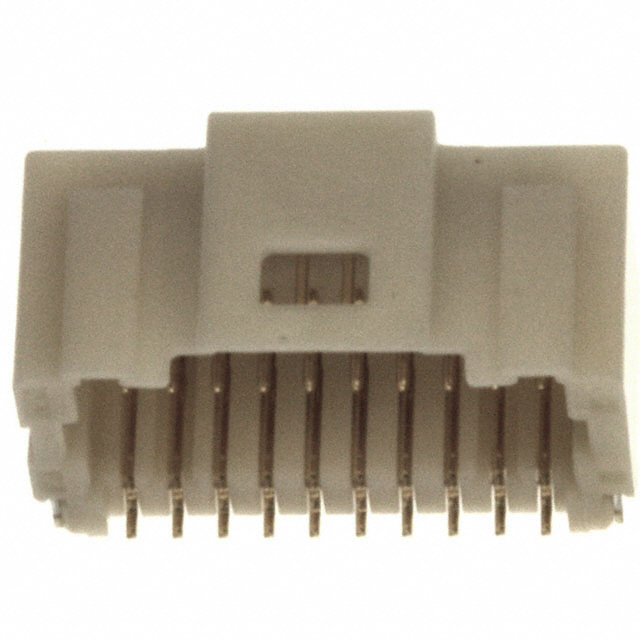

 Molex | General Purpose | Right Angle Surface Mount | Square | 0.325 in | 8.25 mm | Latch Holder | Shrouded - 4 Wall | 0.105 in | 2.66 mm | Board to Cable/Wire | Gold | Natural | Header | 20 | All | 1 mm | 0.039 in | Phosphor Bronze | 2 | Nylon Polyamide (PA) | Solder | UL94 V-0 | 39.4 µin | 1 µm | Solder Retention | Male Pin |
 Molex | Right Angle Surface Mount | Square | 0.325 in | 8.25 mm | Latch Holder | Shrouded - 4 Wall | 0.105 in | 2.66 mm | Board to Cable/Wire | Gold | Natural | Header | 40 | All | 1 mm | 0.039 in | Phosphor Bronze | 2 | Nylon Polyamide (PA) | Solder | UL94 V-0 | 39.4 µin | 1 µm | Solder Retention | Male Pin | |

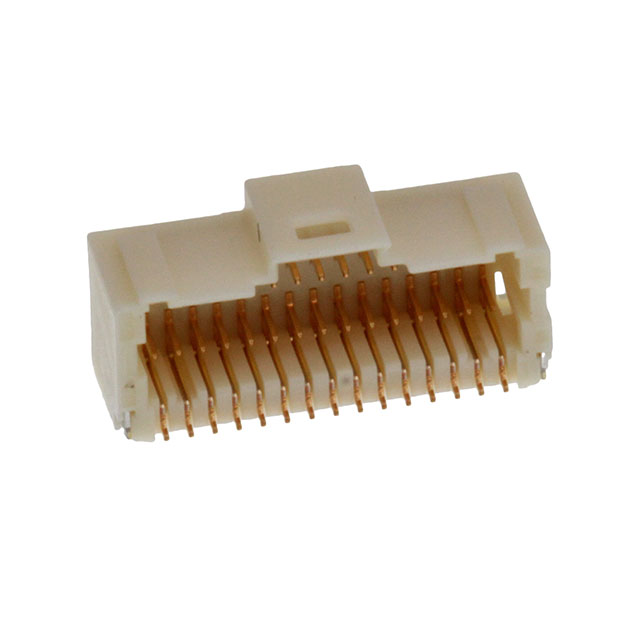

 Molex | General Purpose | Right Angle Surface Mount | Square | 0.325 in | 8.25 mm | Latch Holder | Shrouded - 4 Wall | 0.105 in | 2.66 mm | Board to Cable/Wire | Gold | Natural | Header | 30 | All | 1 mm | 0.039 in | Phosphor Bronze | 2 | Nylon Polyamide (PA) | Solder | UL94 V-0 | 39.4 µin | 1 µm | Solder Retention | Male Pin |
