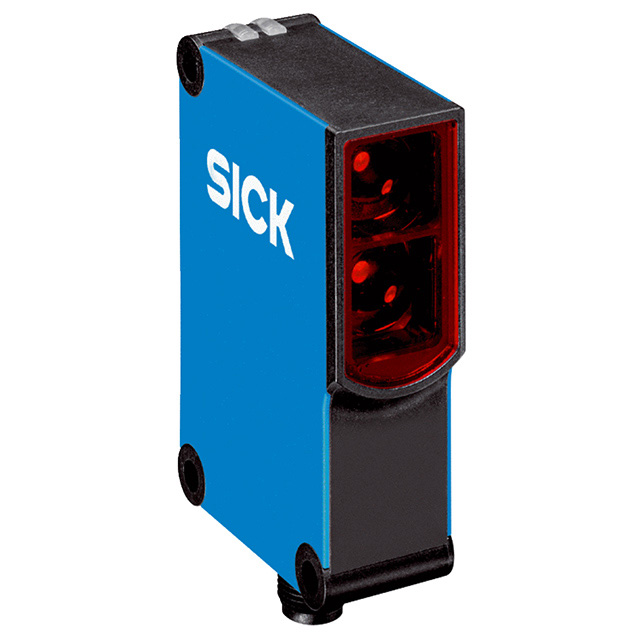

WL27 Series
Manufacturer: SICK, Inc.
Beta
⌘K
SENSOR RETROREFLECTIVE 15M PNP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connection Method | Light Source | Output Configuration | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Method | Response Time | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Adjustment Type | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | -40 °C | 60 °C | Connector M12 | Red (660nm) | PNP | IP69K | 10 VDC | 30 VDC | Retroreflective | 500 µs | 3.937 " | 590.551 in | 15 m | 10 cm | |||
SICK, Inc. | -40 °C | 60 °C | Cable | Red (660nm) | PNP | 10 VDC | 30 VDC | Retroreflective | 500 µs | 3.937 " | 590.551 in | 15 m | 10 cm | Adjustable Potentiometer | 78.74 " | 2 m | |
SICK, Inc. | -40 °C | 60 °C | Connector M12 | Red LED | PNP | IP69 | 10 VDC | 30 VDC | Retroreflective | 500 µs | 3.937 " 10 cm | 19 m 748.031 in | Adjustable Potentiometer | ||||
SICK, Inc. | -40 °C | 60 °C | Connector M12 | Red (660nm) | PNP | IP69K | 10 VDC | 30 VDC | Retroreflective | 500 µs | 3.937 " | 590.551 in | 15 m | 10 cm | Adjustable Potentiometer |
