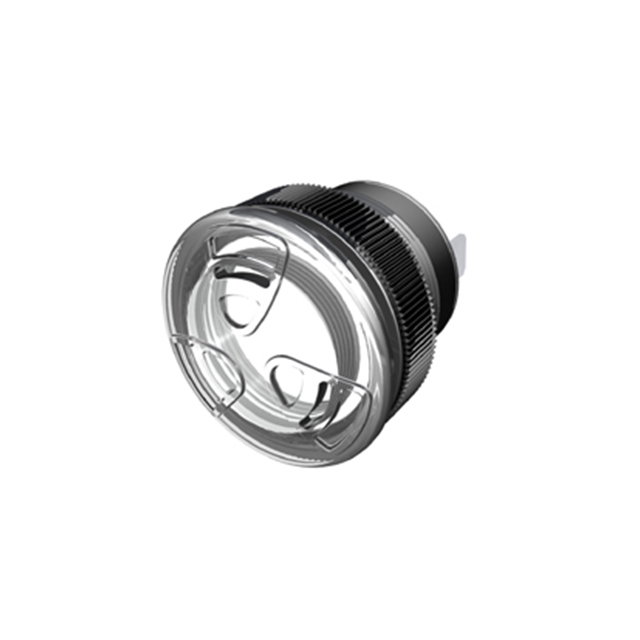

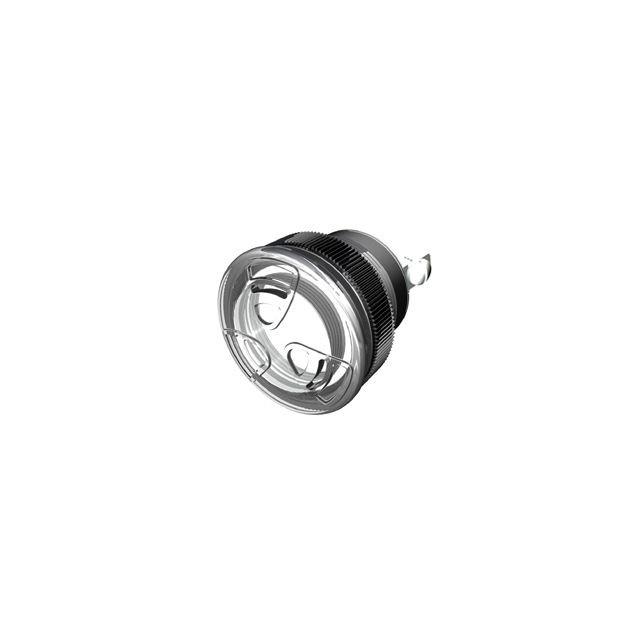

TLHC-88W Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33.02MM PNL MNT
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ingress Protection | Driver Circuitry | Termination | Termination | Termination | Mounting Type | Port Location | Operating Mode | Approval Agency | Sound Pressure Level (SPL) | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Frequency | Input Type | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | IP68 - Dust Tight Waterproof | Indicator Internally Driven | Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | Top | Single Tone | UL UR | 103 dB | 50 mA | 110 mA | 2.9 kHz | DC | 30 V | 9 V |
 Floyd Bell Inc | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | IP68 - Dust Tight Waterproof | Indicator Internally Driven | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | Top | Single Tone | UL UR | 103 dB | 50 mA | 110 mA | 2.9 kHz | DC | 30 V | 9 V |
