BM2P016-Z Series

PWM Type DC/DC Converter IC Included a Switching MOSFET

Catalog

PWM Type DC/DC Converter IC Included a Switching MOSFET

Part	Current - Output	Package / Case	Output Configuration	Number of Outputs	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Frequency - Switching	Supplier Device Package	Voltage - Input (Max) [Max]	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Power - Output	Outputs and Type	Contents	Voltage - Output	Regulator Topology	Supplied Contents	Outputs and Type	Board Type	Utilized IC / Part	Package / Case	Package / Case

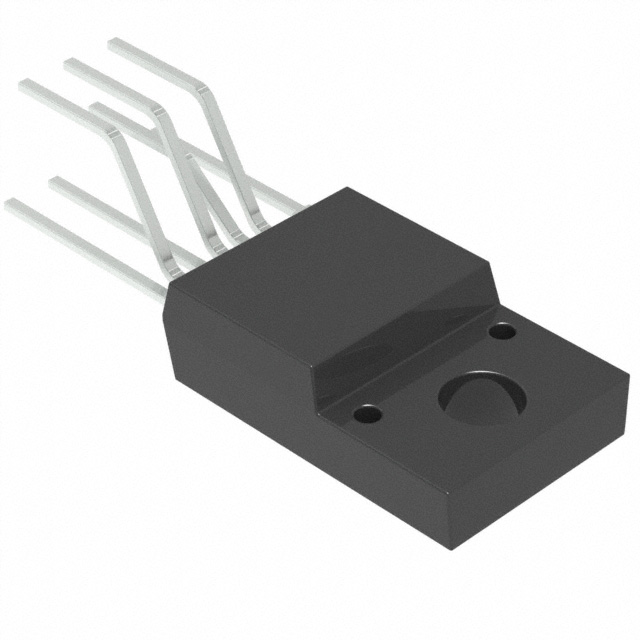

Rohm Semiconductor BM2P016T-Z	950 µA	TO-220-7 Full Pack Formed Leads	Positive	1	Flyback	105 °C	-40 °C	8.9 V	Through Hole	65 kHz	TO-220-7M	26 V

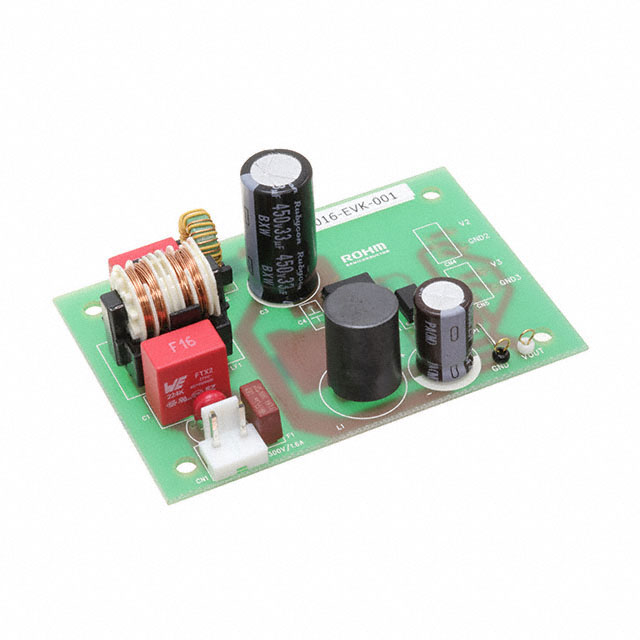

Rohm Semiconductor BM2P016-EVK-001	1 A									65 kHz			AC/DC Non-Isolated	90 VAC	264 VAC	15 W	1 Non-Isolated Output Non-Isolated	Board(s)	15 VDC	Buck	Board(s)	1	Fully Populated

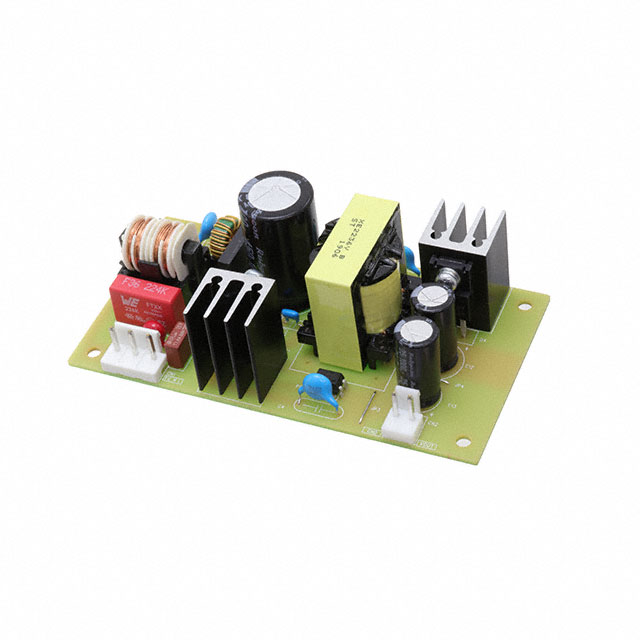

Rohm Semiconductor BM2P016T-EVK-003	4 A									65 kHz			AC/DC Primary Side	90 VAC	264 VAC	48 W	Isolated		12 V	Flyback	Board(s)	1	Fully Populated	BM2P016T
Rohm Semiconductor BM2P016-Z	950 mA	8-DIP	Positive	1	Flyback	105 °C	-40 °C	8.9 V	Through Hole	65 kHz	7-DIP	26 V													7.62 mm	0.3 in 7 Leads

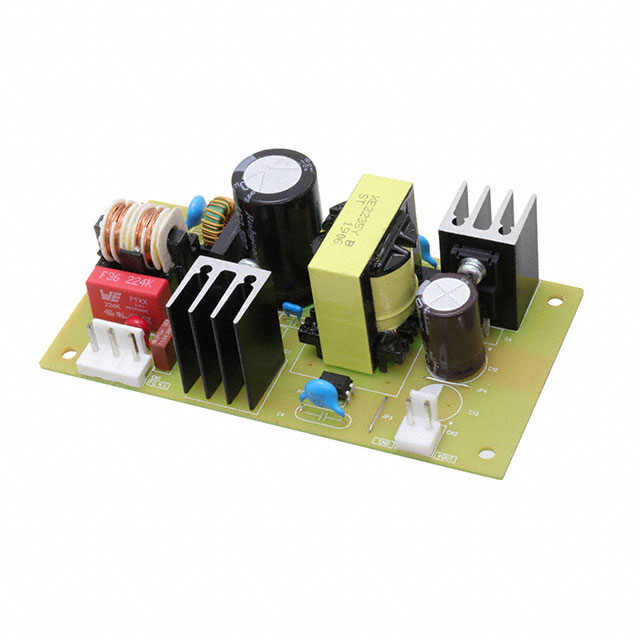

Rohm Semiconductor BM2P016T-EVK-004	2 A									65 kHz			AC/DC Primary Side	90 VAC	264 VAC	48 W	Isolated		24 V	Flyback	Board(s)	1	Fully Populated	BM2P016T

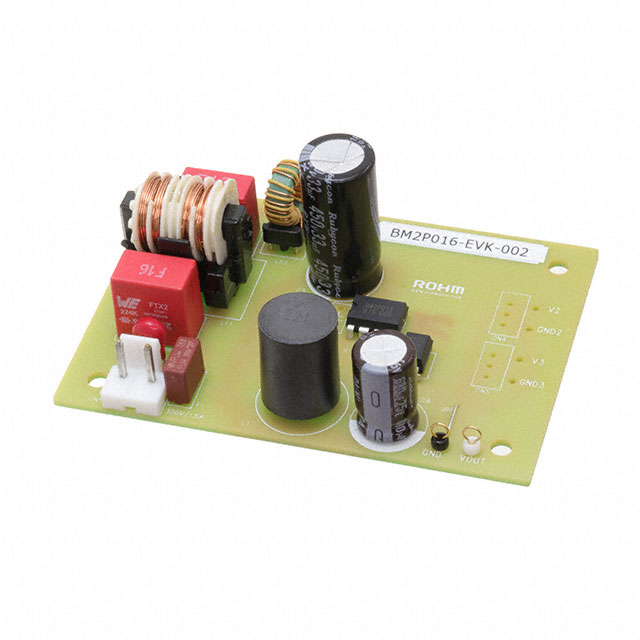

Rohm Semiconductor BM2P016-EVK-002	1 A									65 kHz			AC/DC Non-Isolated	90 VAC	264 VAC	12 W	Non-Isolated		12 V	Buck	Board(s)	1	Fully Populated

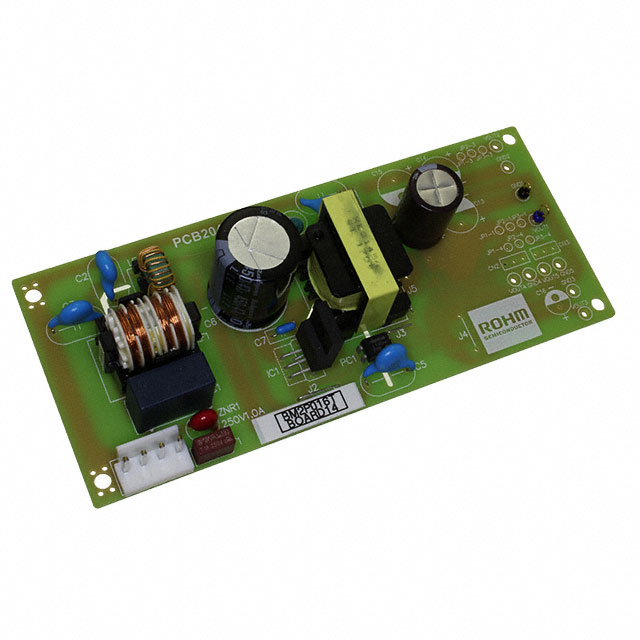

Rohm Semiconductor BM2P016T-EVK-001	1.25 A									65 kHz			AC/DC Primary Side			30 W	Isolated		24 V	Flyback	Board(s)	1	Fully Populated	BM2P016T

Catalog

PWM Type DC/DC Converter IC Included a Switching MOSFET

Key Features

• PWM frequency : 65kHz, PWM current mode method, Frequency hopping function, Burst operation at light load, Frequency reduction function, Built-in 650V start circuit, Built-in 650V switching MOSFET, VCC pin under voltage protection, VCC pin over voltage protection, SOURCE pin Open protection, SOURCE pin Short protection, SOURCE pin Leading-Edge-Blanking function, Per-cycle over current protection circuit, AC Correction function of over current limiter, Soft start function, Secondary over current protection circuit

Description

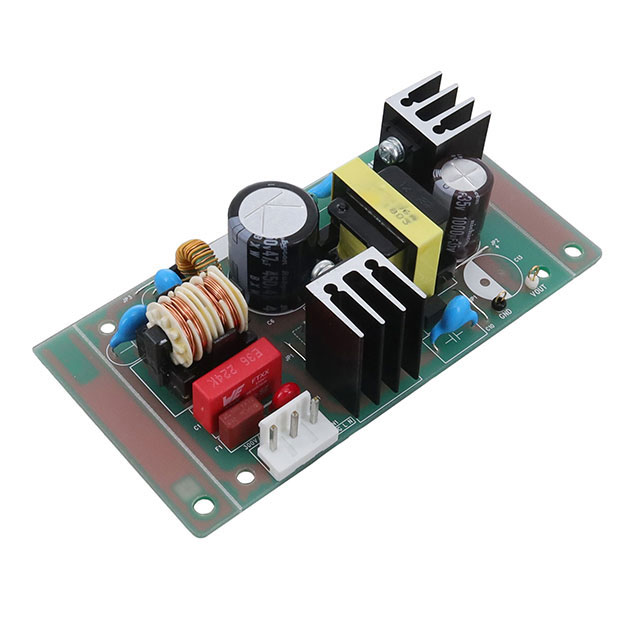

The PWM type DC/DC converter (BM2P016T) for AC/DC provides an optimum system for all products that include an electrical outlet. BM2P016T supports both isolated and non-isolated devices, enabling simpler design of various types of low-power electrical converters. BM2P016T builds in a HV starter circuit that tolerates 650V, and it contributes to low-power consumption. With current detection resistors for switching as external devices, a higher degree of design freedom is achieved. Since current mode control is utilized, current is restricted in each cycle and excellent performance is demonstrated in bandwidth and transient response. The switching frequency is 65 kHz. At light load, the switching frequency is reduced and high efficiency is achieved. A frequency hopping function is also on chip, which contributes to low EMI. We can design easily, because BM2P016T includes the switching MOSFET.Clickherefor the board designed to fully evaluate BM2P016T. In addition you can choose from a variety of power and topologyevaluation boards.
