325-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Read Out	Contact Material	Card Type	Pitch	Pitch	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Gender	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Thickness	Card Thickness	Number of Rows [custom]	Number of Positions [custom]

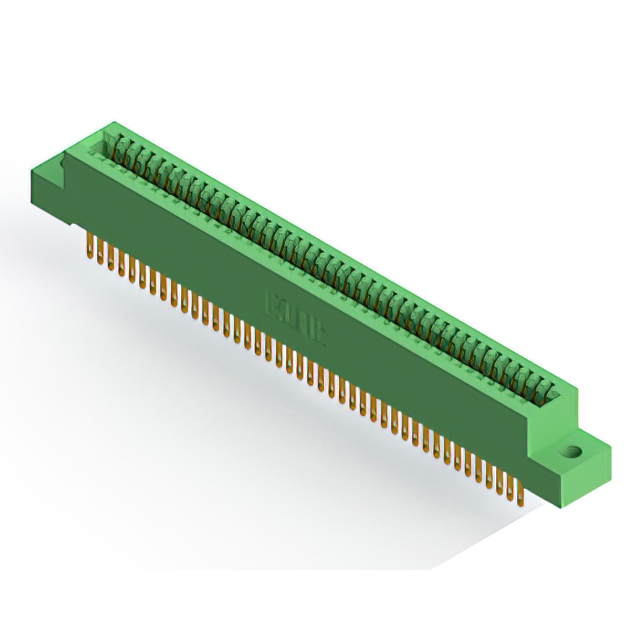

EDAC Inc. 325-084-500-209	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Solder Eyelet(s)	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84

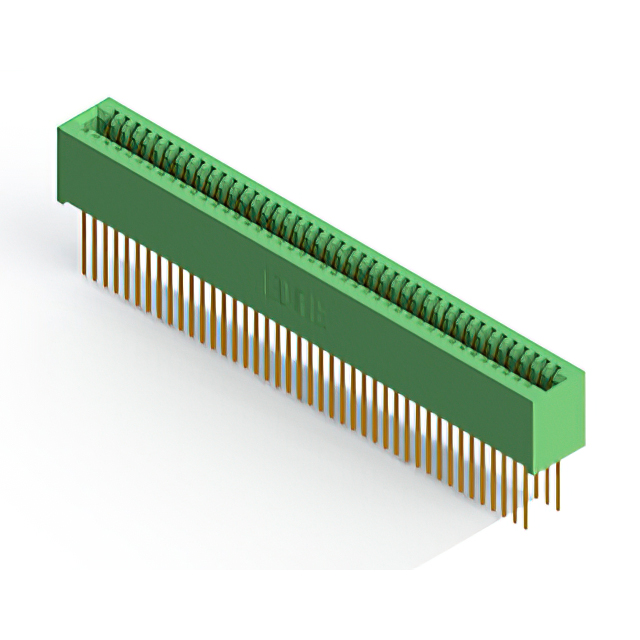

EDAC Inc. 325-084-540-201	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Wire Wrap	-65 ░C	125 °C				42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84
EDAC Inc. 325-084-500-201	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Solder Eyelet(s)	-65 ░C	125 °C				42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84
EDAC Inc. 325-084-500-208	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Solder Eyelet(s)	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening			42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84
EDAC Inc. 325-084-520-209	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Solder	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84

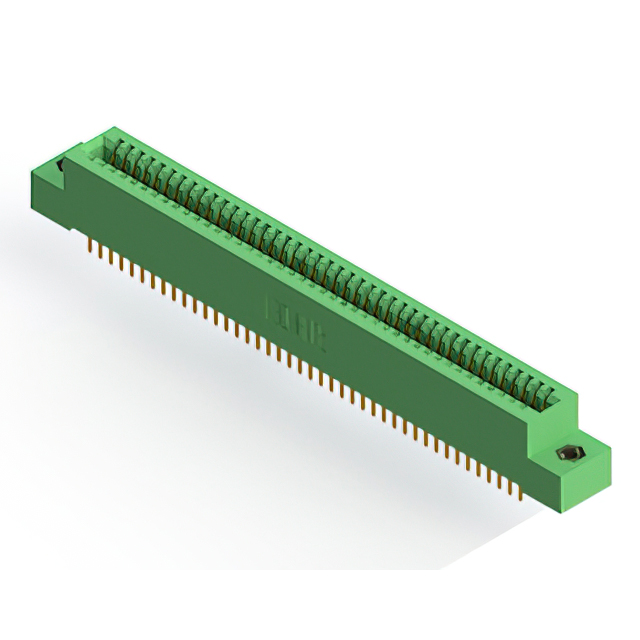

EDAC Inc. 325-084-520-208	Diallyl Phthalate (DAP)	2	Green	Dual	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	Solder	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening			42	Female	Gold	Cantilever	0.25 Ám	10 Áin	Through Hole	3.18 mm	0.125 in	2	84
