5687 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

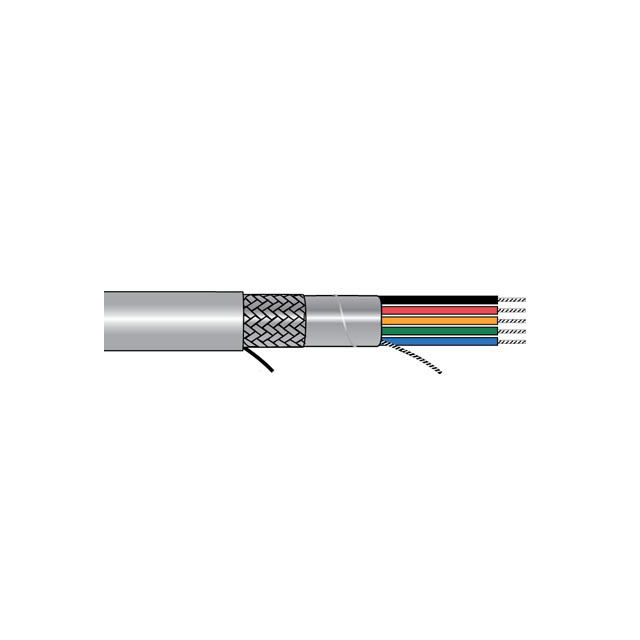

CABLE 8COND 26AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [x] | Conductor Strand [x] | Jacket (Insulation) Material | Usage | Ratings | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length [x] | Length [x] | Cable Type | Conductor Material | Shield Type | Number of Conductors [custom] | Conductor Insulation | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | Communication Control | ISO 10993 UL Style 2464 | 26 AWG | -35 °C | 105 ░C | 5.74 mm | 0.226 in | Slate | 100 ft | 30.5 m | Multi-Conductor | Copper Tinned | Braid Foil | 8 | Poly-Vinyl Chloride (PVC) | 300 VDC | ||
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | Communication Control | ISO 10993 UL Style 2464 | 26 AWG | -35 °C | 105 ░C | 5.74 mm | 0.226 in | Slate | Multi-Conductor | Copper Tinned | Braid Foil | 8 | Poly-Vinyl Chloride (PVC) | 300 VDC | ||||
ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | Communication Control | ISO 10993 UL Style 2464 | 26 AWG | -35 °C | 105 ░C | 5.74 mm | 0.226 in | Slate | Multi-Conductor | Copper Tinned | Braid Foil | 8 | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft |
