M50-363 Series

Catalog

CONN, HEADER, 8POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Material	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Rows	Number of Positions	Features

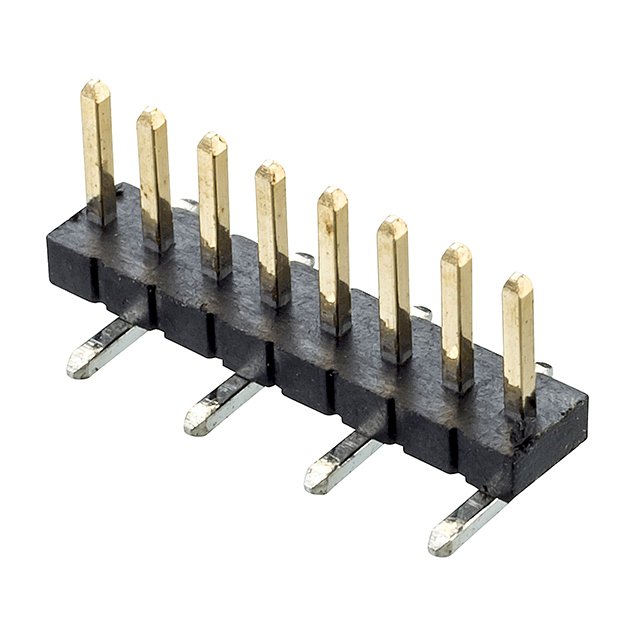

Harwin Inc. M50-3630842	3.6 mm 5.1 mm 5.9 mm	2.54 µm	100 µin	Gold	Tin	UL94 V-0	Surface Mount	Solder	1.27 mm	0.05 in	Push-Pull	Male Pin	Unshrouded	3 mm	0.118 in	1 A	Brass	Nylon 9T Polyamide (PA9T)	Black	All	Square	-40 C	105 ░C	Header	1 mm	0.039 in	1	8

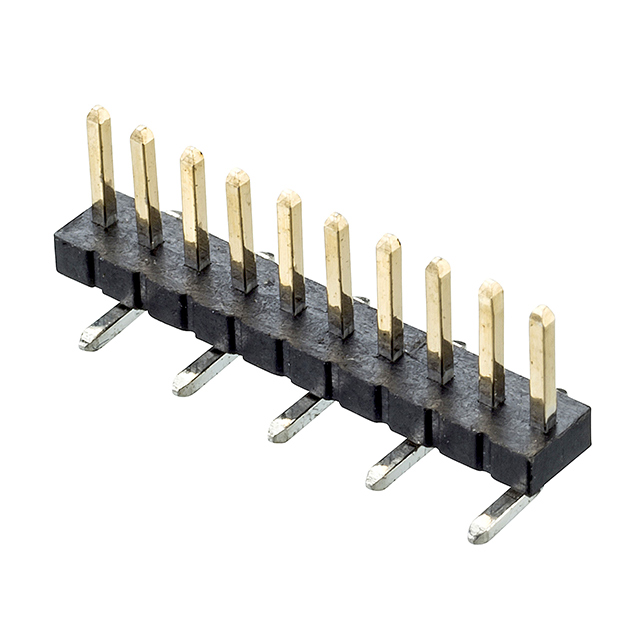

Harwin Inc. M50-3631042R	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.54 µm	100 µin	Gold	Tin	UL94 V-0	Surface Mount	Solder	1.27 mm	0.05 in	Push-Pull	Male Pin	Unshrouded	3 mm	0.118 in	1 A	Brass	Nylon 9T Polyamide (PA9T)	Black	All	Square	-40 C	105 ░C	Header	1 mm	0.039 in	1	10	Pick and Place

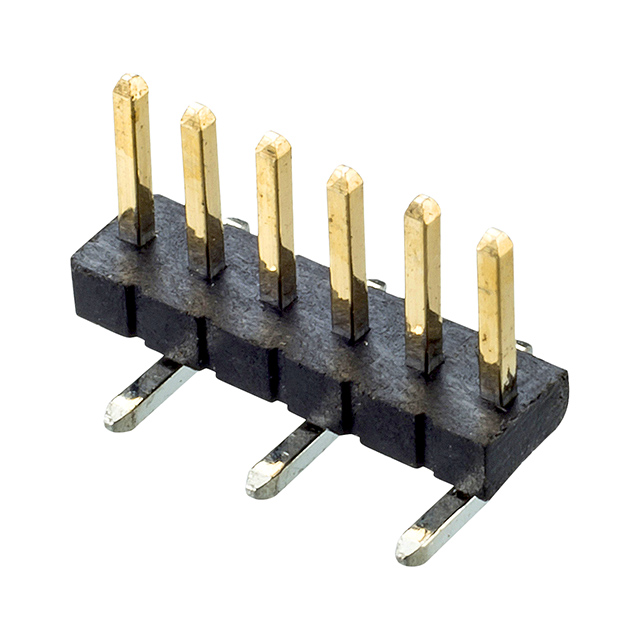

Harwin Inc. M50-3630642	3.6 mm 5.1 mm 5.9 mm	2.54 µm	100 µin	Gold	Tin	UL94 V-0	Surface Mount	Solder	1.27 mm	0.05 in	Push-Pull	Male Pin	Unshrouded	3 mm	0.118 in	1 A	Brass	Nylon 9T Polyamide (PA9T)	Black	All	Square	-40 C	105 ░C	Header	1 mm	0.039 in	1	6

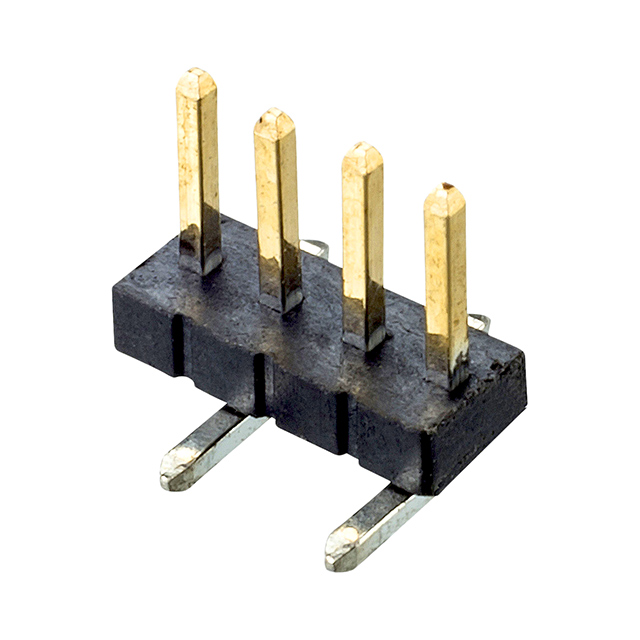

Harwin Inc. M50-3630442R	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.54 Ąm	100 Ąin	Gold	Tin	UL94 V-0	Surface Mount	Solder	1.27 mm	0.05 in	Push-Pull	Male Pin	Unshrouded	3 mm	0.118 in	1 A	Brass	Nylon 9T Polyamide (PA9T)	Black	All	Square	-40 C	105 ░C	Header	1 mm	0.039 in	1	4	Pick and Place
