CPDQ03 Series
Manufacturer: Comchip Technology
Beta
⌘K
TVS DIODE 5VWM 16VC 0402C-03
| Part | Type | Voltage - Clamping (Max) @ Ipp [Max] | Power Line Protection | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Unidirectional Channels [custom] | Applications | Mounting Type | Package / Case | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) [Min] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Capacitance @ Frequency | Bidirectional Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

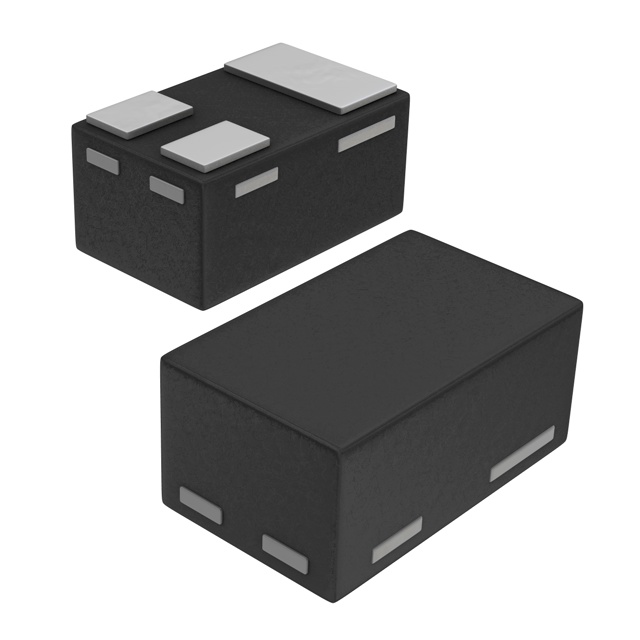

 Comchip Technology | Zener | 16 V | 48 W | 3 A | 1 | General Purpose | Surface Mount | SC-101 SOT-883 | 5 V | 6 V | 0402C-03/SOT-883 | 150 °C | -55 °C | |||
Comchip Technology | Zener | 15 V | 30 W | 2 A | 1 | General Purpose | Surface Mount | SC-101 SOT-883 | 5 V | 6 V | 0402C-03/SOT-883 | 125 °C | -55 ░C | 12 pF | ||
Comchip Technology | Zener | 15 V | 45 W | 3 A | General Purpose | Surface Mount | SC-101 SOT-883 | 5 V | 5.5 V | 0402C-03/SOT-883 | 125 °C | -40 C | 6 pF | 2 |
