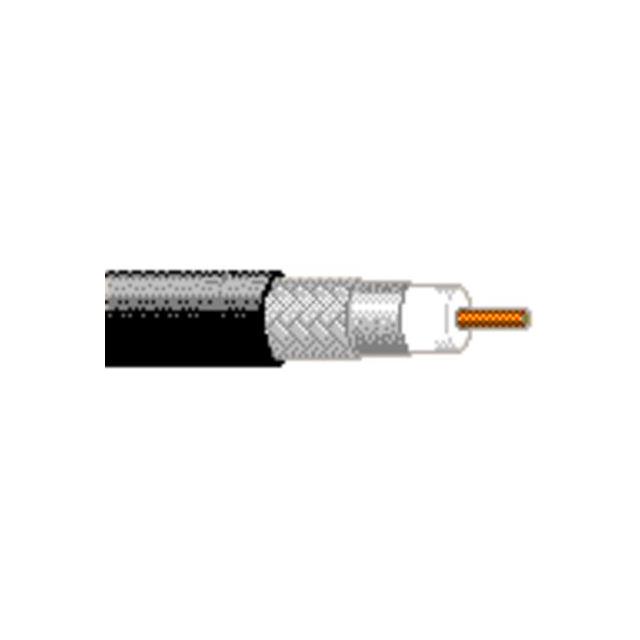

1530A Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 75 OHM RG6 18AWG
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Dielectric Material | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Shield Type | Conductor Strand | Cable Type | Jacket (Insulation) Material | Cable Group | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.18 in | 4.57 mm | Aluminum | 83 | 80 °C | -40 C | 90 % 100 % | Foam Polyethylene (FPE) | Copper Coated Steel | 18 AWG | 0.27 " | 6.86 mm | 75 Ohms | Braid Foil | Solid | Coaxial | Poly-Vinyl Chloride (PVC) | RG-6 | Black | 304.8 m | 1000 ft |
Belden Inc. | 0.18 in | 4.57 mm | Aluminum | 83 | 80 °C | -40 C | 90 % 100 % | Foam Polyethylene (FPE) | Copper Coated Steel | 18 AWG | 0.27 " | 6.86 mm | 75 Ohms | Braid Foil | Solid | Coaxial | Poly-Vinyl Chloride (PVC) | RG-6 | Black | 304.8 m | 1000 ft |
