AWG28-24 Series

Catalog

CBL RIBN 24COND 0.05 GRAY 10'

Part	Conductor Material	Length	Spool Size [x]	Spool Size [x]	Insulation Resistance	First Conductor Mark	Ribbon Width [custom]	Ribbon Width [custom]	Voltage	Number of Conductors	Ribbon Thickness	Ribbon Thickness	Pitch	Pitch	Length	Length	Jacket (Insulation) Material	Shielding	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Length [x]	Length [x]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature

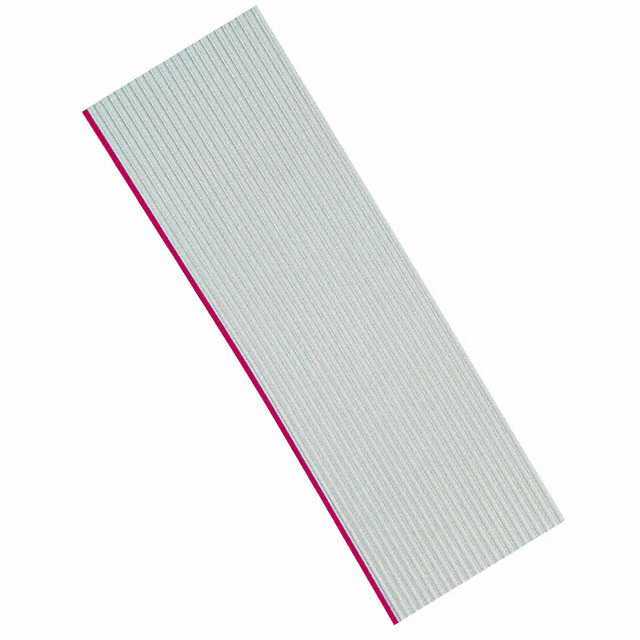

Assmann WSW Components AWG28-24/G/300	Copper Tinned	Enter Number of Feet in Order Quantity	300 ft	91.44 m	100 MOhms	Red	1.2 in	30.48 mm	300 VDC	24	0.89 mm	0.035 in	0.05 in	1.27 mm	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	Unshielded	Flat Cable	28 AWG	-10 °C	105 ░C	Gray	50 ft	15.24 m	UL Style 2651	36 AWG	7 Strands

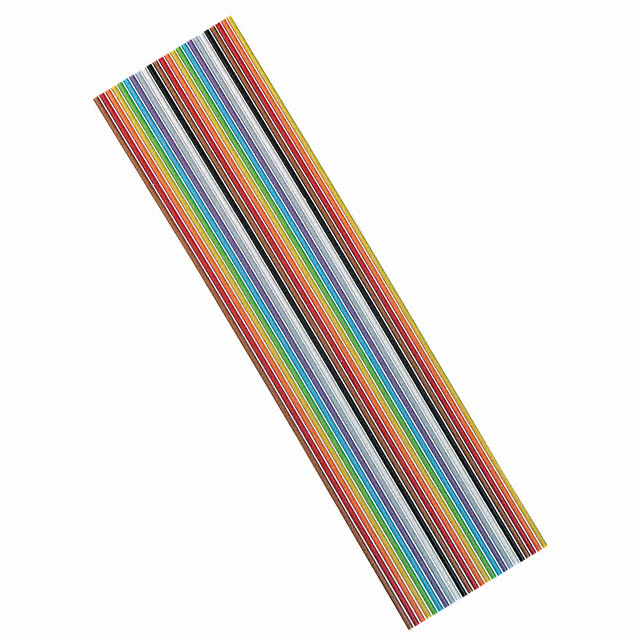

Assmann WSW Components AWG28-24/F/300	Copper Tinned	Enter Number of Feet in Order Quantity	300 ft	91.44 m	100 MOhms	Red	1.2 in	30.48 mm	300 VDC	24	0.89 mm	0.035 in	0.05 in	1.27 mm	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	Unshielded	Flat Cable	28 AWG			Multiple	50 ft	15.24 m	UL Style 2651	36 AWG	7 Strands	105 C

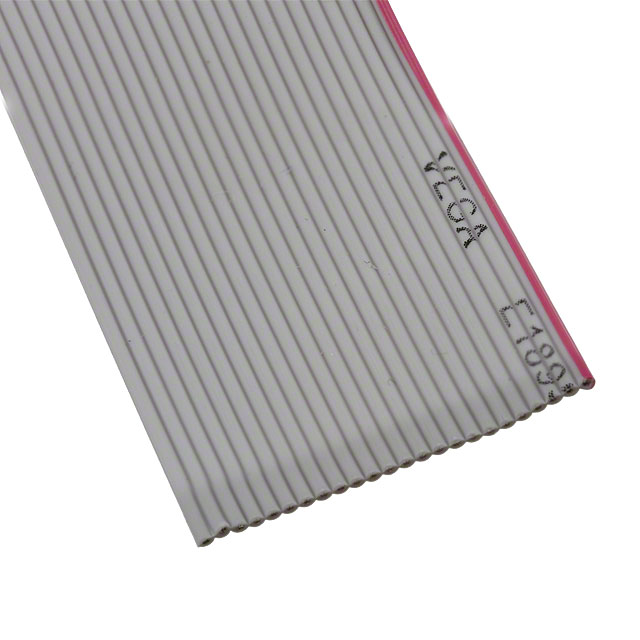

Assmann WSW Components AWG28-24/G-1/300	Copper Tinned	Enter Number of Feet in Order Quantity	300 ft	91.44 m	100 MOhms	Red	0.945 in	24 mm	300 VDC	24	0.89 mm	0.035 in	0.039 in	1 mm	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	Unshielded	Flat Cable	28 AWG	-10 °C	105 ░C	Gray	50 ft	15.24 m	UL Style 2651	36 AWG	7 Strands

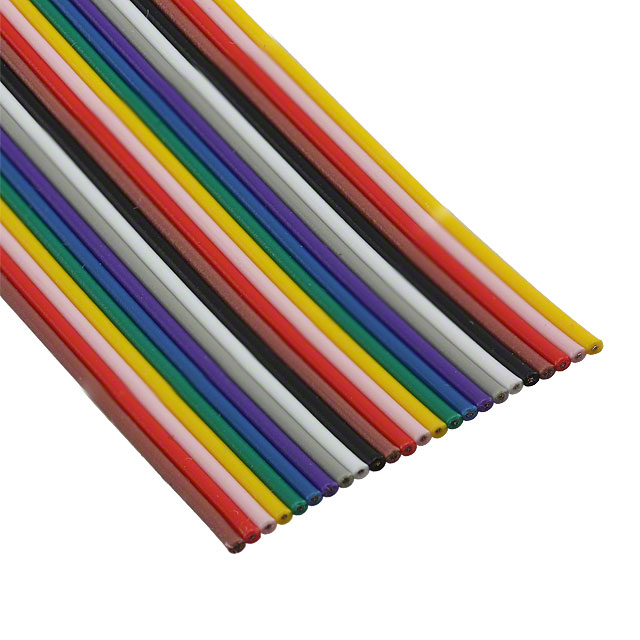

Assmann WSW Components AWG28-24/F-1/300	Copper Tinned				100 MOhms		0.945 in	24 mm	300 VDC	24	0.89 mm	0.035 in	0.039 in	1 mm	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Poly-Vinyl Chloride (PVC)	Unshielded	Flat Cable	28 AWG	-10 °C	105 ░C	Multiple	50 ft	15.24 m	UL Style 2651	36 AWG	7 Strands
