0342-0 Series

Catalog

CONN PIN RCPT .059-.063 HEX

Part	Insertion Force	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Socket Depth [z]	Socket Depth [z]	Tail Type	Contact Material	Termination

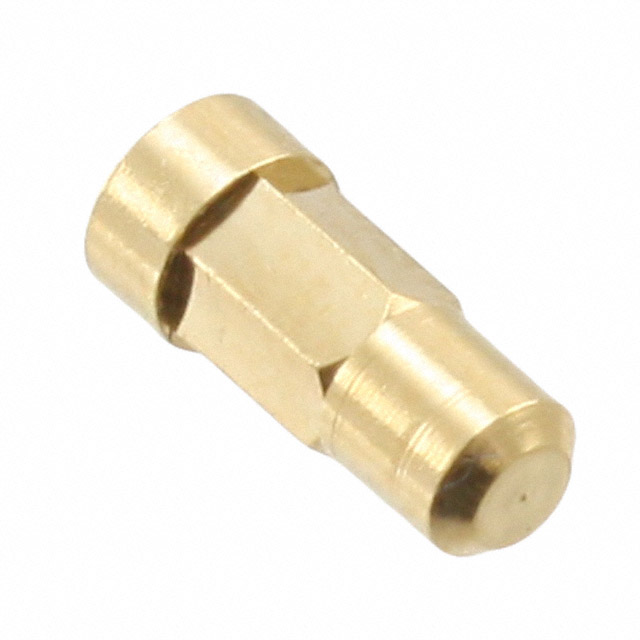

Mill-Max Manufacturing Corp. 0342-0-15-15-42-27-10-0	20 N	-55 C	125 °C	0.106 "	2.69 mm	Gold	1.5 mm	0.063 "	0.059 "	1.6 mm	0.09 in	2.29 mm	30 Áin	0.76 Ám	0.24 in	6.1 mm	0.21 in	5.33 mm	No Tail	Beryllium Copper	Hex Press-Fit

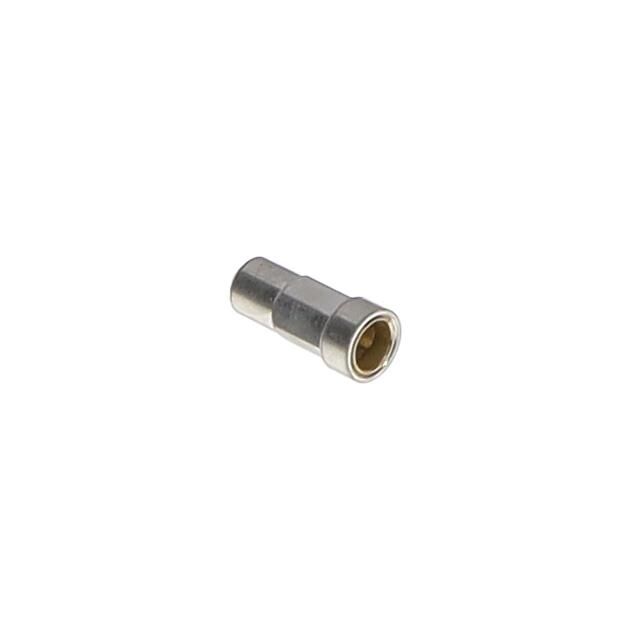

Mill-Max Manufacturing Corp. 0342-0-15-01-42-27-10-0		-55 C	125 °C	0.106 "	2.69 mm	Gold	1.5 mm	0.063 "	0.059 "	1.6 mm	0.09 in	2.29 mm	30 Áin	0.76 Ám	0.24 in	6.1 mm	0.21 in	5.33 mm	No Tail	Beryllium Copper	Hex Press-Fit
Mill-Max Manufacturing Corp. 0342-0-15-80-42-27-10-0		-55 C	125 °C	0.106 "	2.69 mm	Gold	1.5 mm	0.063 "	0.059 "	1.6 mm	0.09 in	2.29 mm	30 Áin	0.76 Ám	0.24 in	6.1 mm	0.21 in	5.33 mm	No Tail	Beryllium Copper	Hex Press-Fit
Mill-Max Manufacturing Corp. 0342-0-15-01-42-01-10-0		-55 C	125 °C	0.106 "	2.69 mm		1.5 mm	0.063 "	0.059 "	1.6 mm	0.09 in	2.29 mm	30 Áin	0.76 Ám	0.24 in	6.1 mm	0.21 in	5.33 mm	No Tail	Beryllium Copper	Hex Press-Fit
