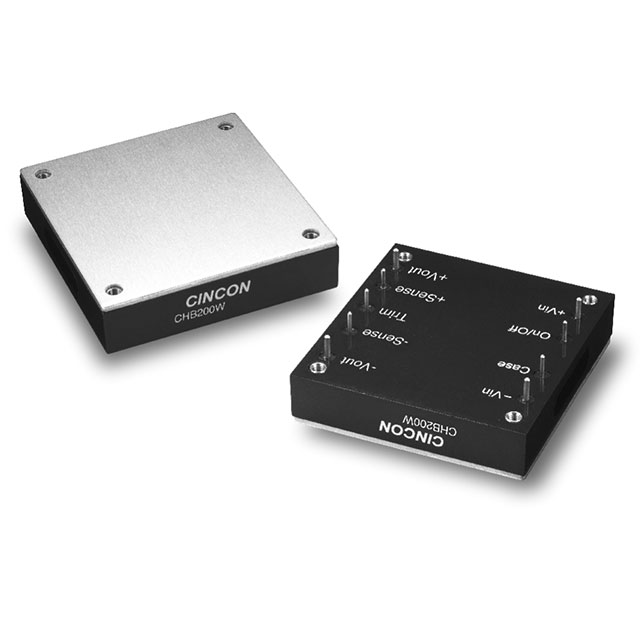

CHB200 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE

Part	Package / Case	Efficiency	Approval Agency	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Standard Number	Control Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Supplier Device Package	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Power (Watts)	Applications	Features	Number of Outputs
Cincon Electronics Co. LTD CHB200W-24S48N	Half Brick	86 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active Low Enable	10 VDC	4.2 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	48 V	202 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-24S28N	Half Brick	88.5 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active Low Enable	10 VDC	7.14 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	28 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-24S15	Half Brick	87 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active High Enable	10 VDC	13.3 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	15 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-48S3V3	Half Brick	88 %	CE cURus	75 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active High Enable	18 V	40 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	3.3 V	132 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-24S12N	Half Brick	86 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active Low Enable	10 VDC	16.7 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	12 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-48S12N	Half Brick	88 %	CE cURus	75 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active Low Enable	18 V	16.7 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	12 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-48S15	Half Brick	88 %	CE cURus	75 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active High Enable	18 V	13.3 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	15 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-24S28	Half Brick	88.5 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active High Enable	10 VDC	7.14 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	28 V	200 Watts	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-24S3V3N	Half Brick	87 %	CE cURus	36 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active Low Enable	10 VDC	50 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	3.3 V	165 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
Cincon Electronics Co. LTD CHB200W-48S48	Half Brick	87 %	CE cURus	75 V	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	1.5 kV	60950-1	Active High Enable	18 V	4.2 A	Through Hole	Half Brick	Isolated Module	-40 °C	100 °C	48 V	202 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	1
