OSTTS03 Series

Catalog

TERM BLOCK PLUG 3POS 3.5MM

Part	Housing Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Material Flammability Rating	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm²	Termination Style	Voltage - UL	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Color	Positions Per Level	Number of Levels	Mounting Type	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
On Shore Technology Inc. OSTTS03115D	Brass	7 mm	6 mm	Brass	UL94 V-0	1.7 Lb-In	0.2 Nm	1.5 mm²	Screw	300 V	3.5 mm	0.138 "	115 °C	-40 C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	28 AWG	16 AWG
On Shore Technology Inc. OSTTS03115A	Brass	7 mm	6 mm	Brass		1.7 Lb-In	0.2 Nm	1.5 mm²	Screw	300 V	3.5 mm	0.138 "	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	28 AWG	16 AWG
On Shore Technology Inc. OSTTS03515C	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	5.08 mm	0.2 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS03715B	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	5 mm	0.197 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS03315C	Brass	7 mm	6 mm	Brass	UL94 V-0	1.7 Lb-In	0.2 Nm	1.5 mm²	Screw	300 V	3.81 mm	0.15 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	28 AWG	16 AWG
On Shore Technology Inc. OSTTS03015D	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	7.62 mm	0.3 in	105 ░C	-30 ░C		3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG
On Shore Technology Inc. OSTTS03515D	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	5.08 mm	0.2 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG	0.34 mm²	2.5 mm²

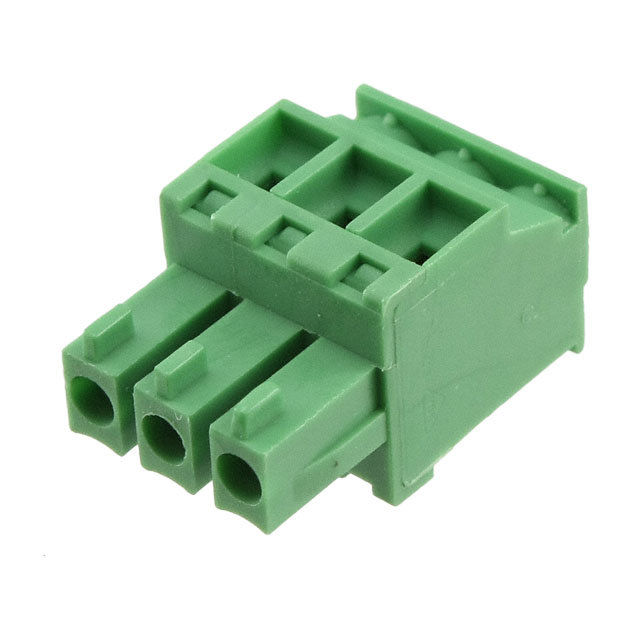

On Shore Technology Inc. OSTTS03315A	Brass	7 mm	6 mm	Brass		1.7 Lb-In	0.2 Nm	1.5 mm²	Screw	300 V	3.81 mm	0.15 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	28 AWG	16 AWG			1.5 mm˛

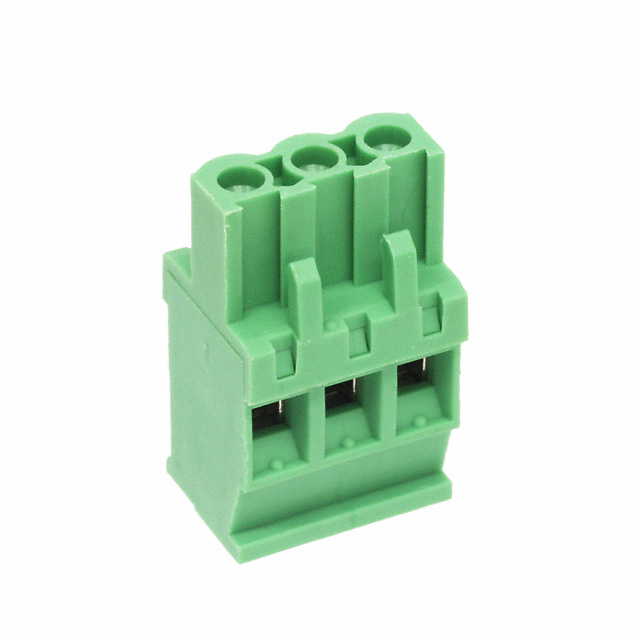

On Shore Technology Inc. OSTTS03515A	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	5.08 mm	0.2 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG	0.34 mm²	2.5 mm²		0.34 mm˛	2.5 mm˛
On Shore Technology Inc. OSTTS03715A	Brass	7 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm		Screw	300 V	5 mm	0.197 in	105 ░C	-30 ░C	Green	3	1	Free Hanging (In-Line)	Plug Female Sockets	24 AWG	12 AWG	0.34 mm²	2.5 mm²
