2564 Series

Catalog

HEADERS & WIRE HOUSINGS 2X8 RECEPTACLE/VERT

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Termination	Number of Positions	Number of Rows [custom]	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mounting Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape
NorComp Inc. 25641601RP2	UL94 V-0	Flash	Push-Pull	Gold	Solder	16	2	Receptacle	0.118 in	3 mm	Black	All	-40 C	105 ░C	Tin	0.079 "	2 mm	0.177 in	4.5 mm	2 mm	0.079 in	Female Socket	Through Hole

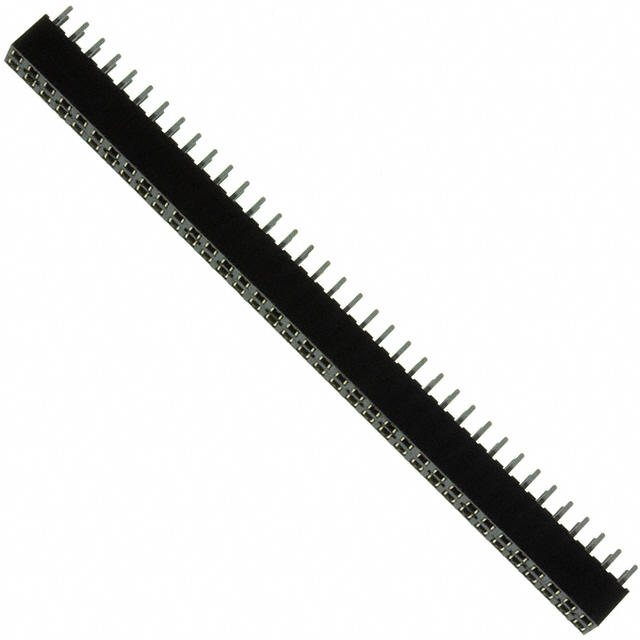

NorComp Inc. 25647201RP2	UL94 V-0	Flash	Push-Pull	Gold	Solder	72	2	Receptacle	0.118 in	3 mm	Black	All	-40 C	105 ░C	Tin	0.079 "	2 mm	0.177 in	4.5 mm	2 mm	0.079 in	Female Socket	Through Hole	Phosphor Bronze	2.54 µm	100 µin	Square
