R11470 Series

Catalog

SMB / MALE-MALE ADAPTER

Part	Dielectric Material	Mating Cycles	Body Finish	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Fastening Type	Fastening Type	Mounting Type	Center Gender	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Impedance	Style	Adapter Series	Adapter Type	Frequency - Max [Max]
Radiall USA, Inc. R114703000W	Polytetrafluoroethylene (PTFE)	500	Gold	Brass	-65 ░C	165 °C	Brass	Gold	Snap-On	Snap-On	Free Hanging (In-Line)	Male to Male	Same Series	Male Pin SMB Jack	SMB Jack Male Pin	50 Ohms	Straight	SMB to SMB	Jack to Jack	4 GHz

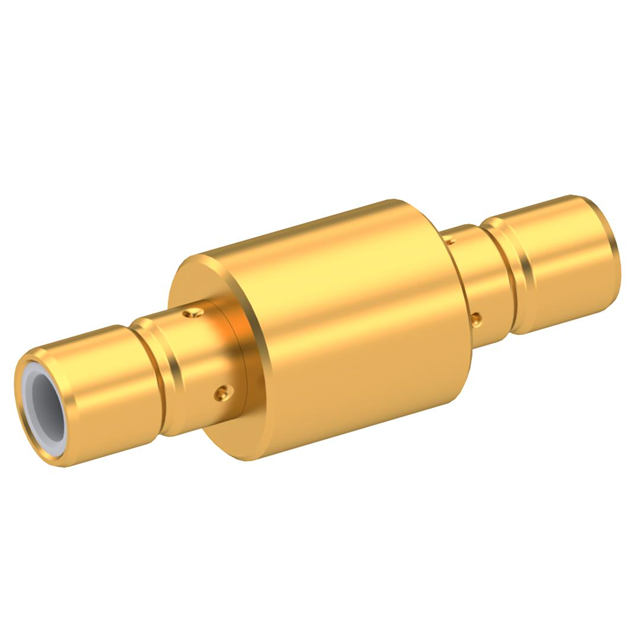

Radiall USA, Inc. R114703000	Polytetrafluoroethylene (PTFE)	500	Gold	Brass	-65 ░C	165 °C	Brass	Gold	Snap-On	Snap-On	Free Hanging (In-Line)	Male to Male	Same Series	Male Pin SMB Jack	SMB Jack Male Pin	50 Ohms	Straight	SMB to SMB	Jack to Jack	4 GHz
Radiall USA, Inc. R114704000W	Polytetrafluoroethylene (PTFE)	500	Gold	Beryllium Copper	-65 ░C	165 °C	Brass	Gold	Snap-On	Snap-On	Free Hanging (In-Line)	Female to Female	Same Series	Female Socket SMB Plug	Female Socket SMB Plug	50 Ohms	Straight	SMB to SMB	Plug to Plug	4 GHz

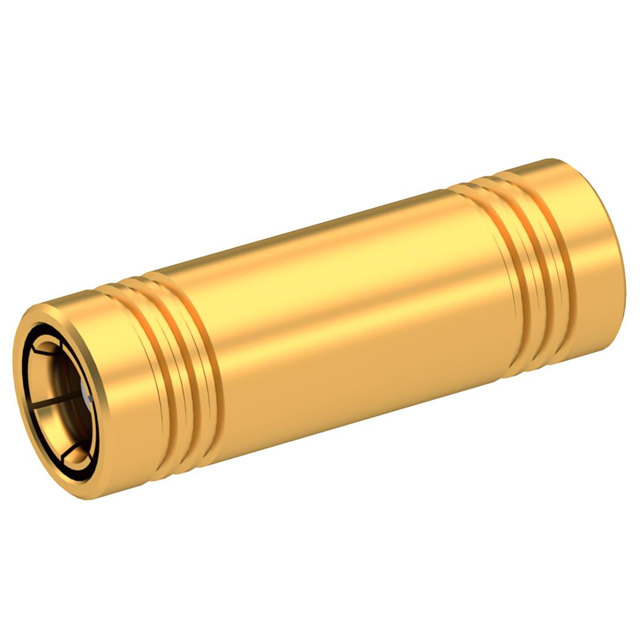

Radiall USA, Inc. R114704000	Polytetrafluoroethylene (PTFE)	500	Gold	Beryllium Copper	-65 ░C	165 °C	Brass	Gold	Snap-On	Snap-On	Free Hanging (In-Line)	Female to Female	Same Series	Female Socket SMB Plug	Female Socket SMB Plug	50 Ohms	Straight	SMB to SMB	Plug to Plug	4 GHz
