ELL-8TP Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

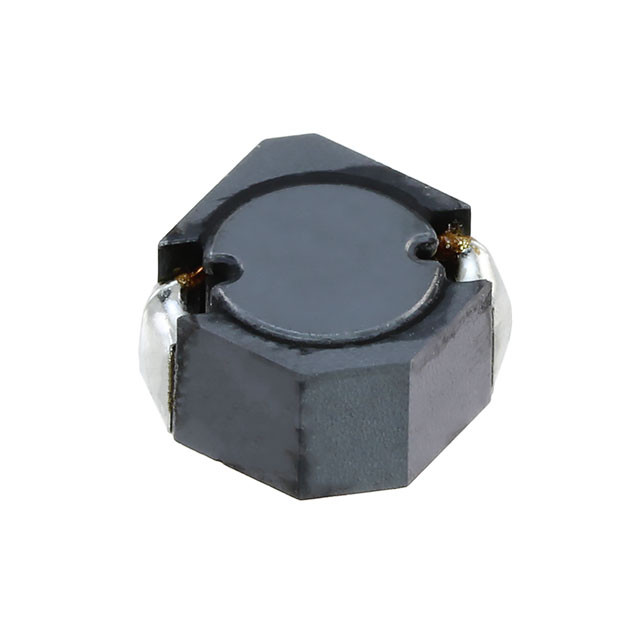

FIXED IND 800NH 9A 3.6 MOHM SMD
| Part | Current - Saturation (Isat) | Inductance Frequency - Test | Type | Mounting Type | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) | Tolerance | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 9.5 A | 100 kHz | Wirewound | Surface Mount | 800 nH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 3.6 mOhm | 30 % | |
Panasonic Industrial Automation Sales | 1.4 A | 100 kHz | Wirewound | Surface Mount | 47 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 100 mOhm | 20 % | 1.5 A |
Panasonic Industrial Automation Sales | 400 mA | 100 kHz | Wirewound | Surface Mount | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 1 Ohm | 20 % | 480 mA | |
Panasonic Industrial Automation Sales | 3 A | 100 kHz | Wirewound | Surface Mount | 10 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 25 mOhm | 20 % | 3 A |
Panasonic Industrial Automation Sales | 550 mA | 100 kHz | Wirewound | Surface Mount | 220 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 480 mOhm | 20 % | 700 mA |
Panasonic Industrial Automation Sales | 100 kHz | Wirewound | Surface Mount | 680 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 1.3 Ohm | 20 % | 430 mA | |
Panasonic Industrial Automation Sales | 5 A | 100 kHz | Wirewound | Surface Mount | 3.3 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 13 mOhm | 30 % | 4.2 A |
Panasonic Industrial Automation Sales | 100 kHz | Wirewound | Surface Mount | 180 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 20 % | |||
Panasonic Industrial Automation Sales | 8.5 A | 100 kHz | Wirewound | Surface Mount | 1.2 µH | 0.197 in | 5 mm | Shielded | 0.315 in | 8 mm | 0.315 " | 8 mm | -40 °C | 105 ░C | 4.7 mOhm | 30 % | 8 A |
