86130402 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Termination	Shrouding	Insulation Color	Mounting Type	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Mating	Voltage Rating	Fastening Type	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Contact Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 86130402114355LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole	2	0.693 in	17.6 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy	4.35 mm	0.171 in	Tin	40	0.1 in	2.54 mm	Circular	0.713 in	18.1 mm	All
Amphenol ICC (FCI) 86130402114365E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole	2	0.693 in	17.6 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy	4.35 mm	0.171 in	Tin	40	0.1 in	2.54 mm	Circular	0.713 in	18.1 mm	All

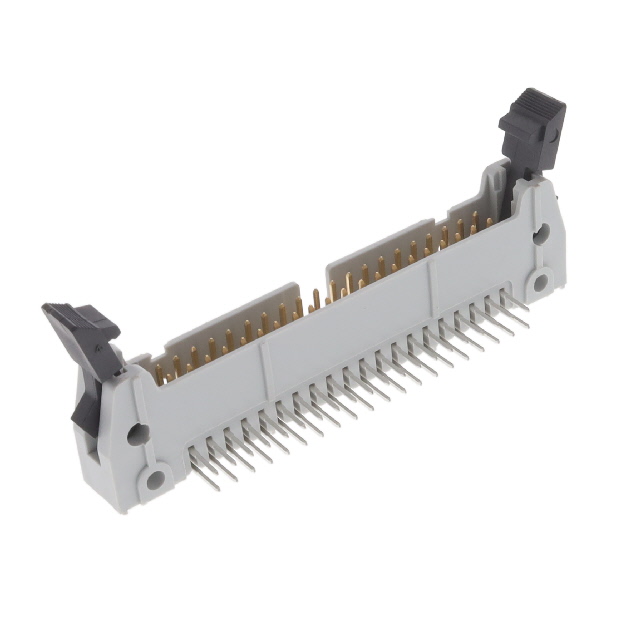

Amphenol ICC (FCI) 86130402113345E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole Right Angle	2	0.344 in	8.75 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy			Tin	40	0.1 in	2.54 mm	Circular			All	0.165 in	4.19 mm
Amphenol ICC (FCI) 86130402123345E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole Right Angle	2	0.344 in	8.75 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy	2.79 mm		Tin	40	0.1 in	2.54 mm	Circular			All	0.11 in
Amphenol ICC (FCI) 86130402113385E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole Right Angle	2	0.344 in	8.75 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy			Tin	40	0.1 in	2.54 mm	Circular			All	0.165 in	4.19 mm
Amphenol ICC (FCI) 86130402323385E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole Right Angle	2	0.344 in	8.75 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy	2.79 mm		Tin	40	0.1 in	2.54 mm	Circular			All	0.11 in
Amphenol ICC (FCI) 86130402123355E1LF	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	6.1 mm	0.24 in	Male Pin	Solder	Shrouded - 4 Wall	Gray	Through Hole Right Angle	2	0.344 in	8.75 mm	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Header	Keying Slot	-55 °C	125 °C	Board to Cable/Wire	UL94 V-0	Copper Alloy	2.79 mm		Tin	40	0.1 in	2.54 mm	Circular			All	0.11 in
