12STR Series

Catalog

HOOK-UP STRND 12AWG 60V GRN 25'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Cable Type	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Voltage	Length [x]	Length [x]	Wire Gauge	Length	Length
Remington Industries 12STRGREGPT25	0.142 in	3.61 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 C	Green	60 V	7.62 m	25 ft	12 AWG

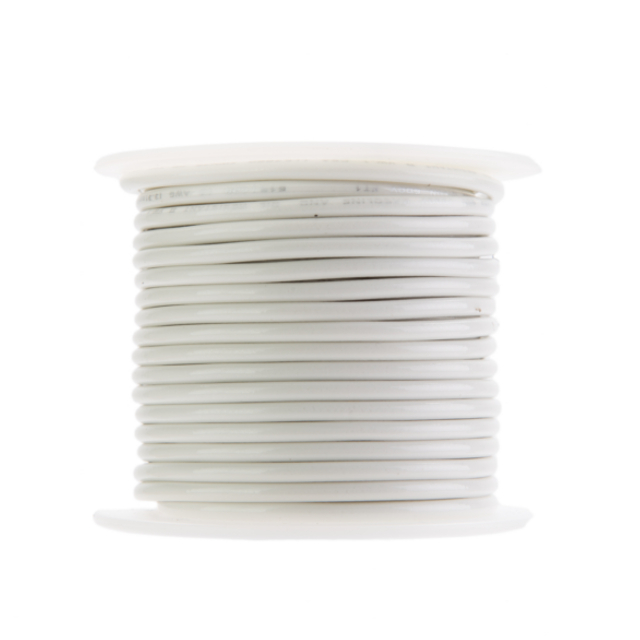

Remington Industries 12STRWHITHHN100	0.128 in	3.25 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Nylon Polyamide (PA)	Copper Bare			White	600 V	30.5 m	100 ft	12 AWG

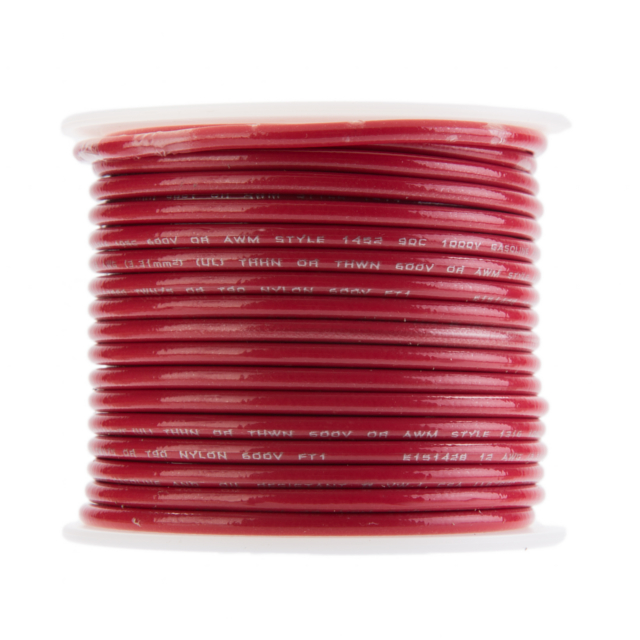

Remington Industries 12STRREDTHHN50	0.128 in	3.25 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Nylon Polyamide (PA)	Copper Bare			Red	600 V			12 AWG	15.24 m	50 ft
Remington Industries 12STRREDGPT25	0.142 in	3.61 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 C	Red	60 V	7.62 m	25 ft	12 AWG

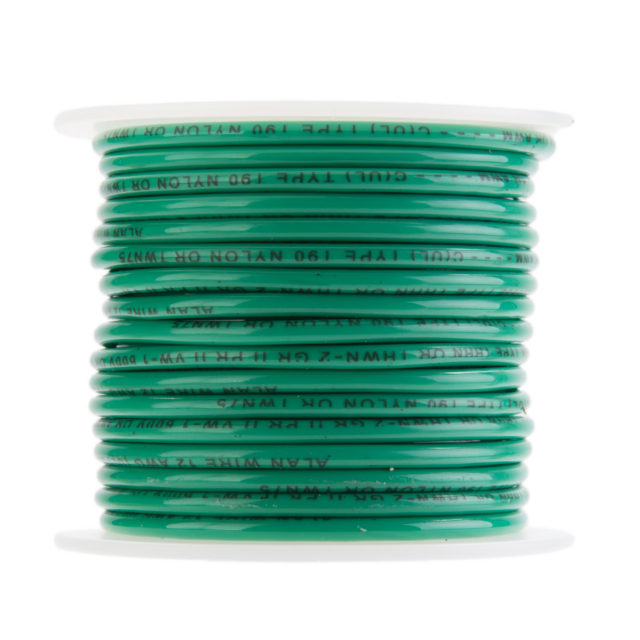

Remington Industries 12STRGRETHHN50	0.128 in	3.25 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Nylon Polyamide (PA)	Copper Bare			Green	600 V			12 AWG	15.24 m	50 ft

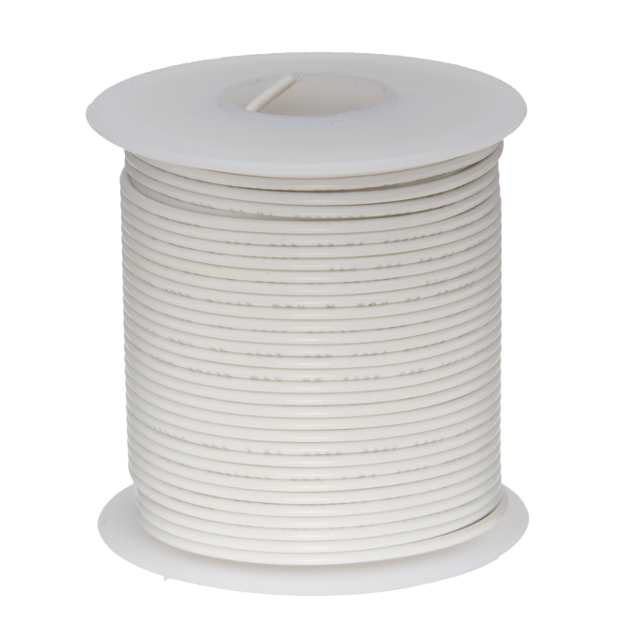

Remington Industries 12STRWHIGPT25	0.142 in	3.61 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 C	White	60 V	7.62 m	25 ft	12 AWG
Remington Industries 12STRBLATHHN100	0.128 in	3.25 mm	19	25 AWG	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Hook-Up	Nylon Polyamide (PA)	Copper Bare			Black	600 V	30.5 m	100 ft	12 AWG
