A3UL-TMA Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON DPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Actuator Marking	Current Rating (Amps)	Actuator Type	Illumination Type, Color	Termination Style	Type	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Illumination Voltage (Nominal)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection

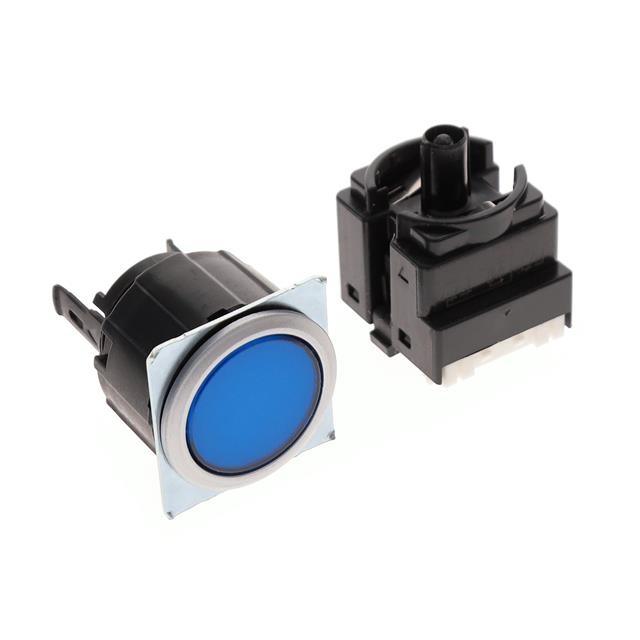

Omron Automation and Safety A3UL-TMA-2A2C-M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	DPDT	12 VDC	On-Mom	55 °C	-20 ░C	IP40

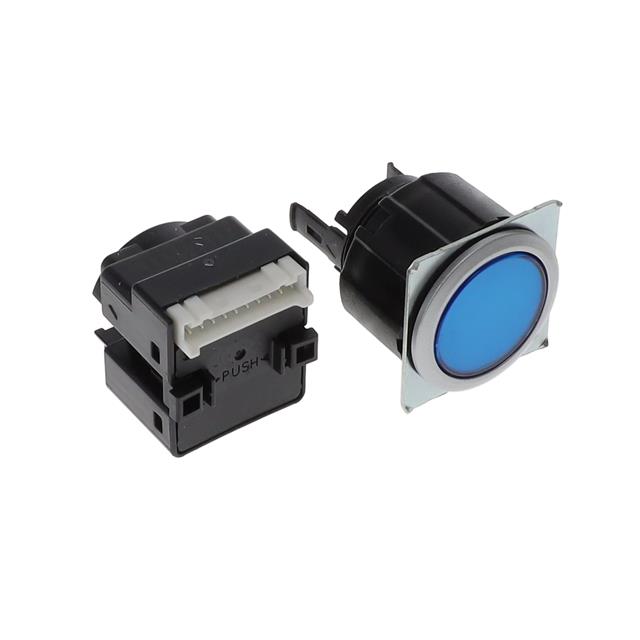

Omron Automation and Safety A3UL-TMA-2A2C-5M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	DPDT	12 VDC	On-Mom	55 °C	-20 ░C	IP65
Omron Automation and Safety A3UL-TMA-3A1C-5M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	SPDT	24 V	On-Mom	55 °C	-20 ░C	IP65

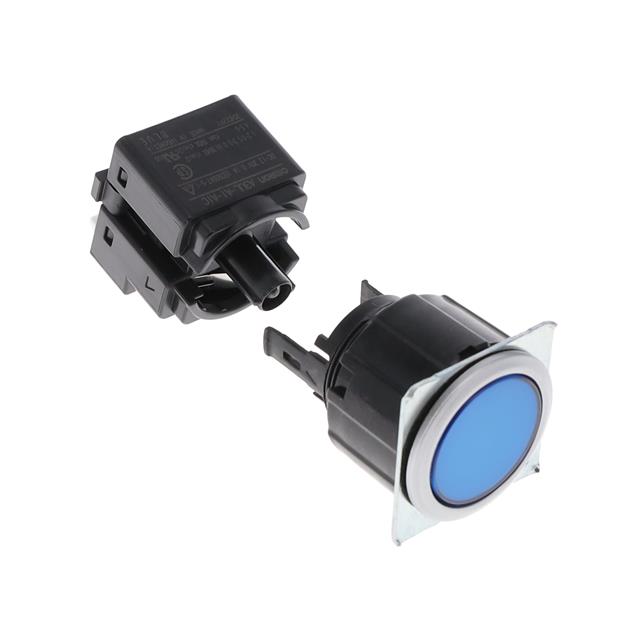

Omron Automation and Safety A3UL-TMA-1A1C-M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	SPDT	5 VDC	On-Mom	55 °C	-20 ░C	IP40
Omron Automation and Safety A3UL-TMA-3A1C-M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	SPDT	24 V	On-Mom	55 °C	-20 ░C	IP40
Omron Automation and Safety A3UL-TMA-2A1C-5M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	SPDT	12 VDC	On-Mom	55 °C	-20 ░C	IP65
Omron Automation and Safety A3UL-TMA-1A2C-5M	200000 Cycles	1000000 Cycles	No Marking	100 mA	Button Flush Round	Blue LED	Connector	Illuminated Standard	30 V	Clear	Panel Mount Front	25.2 mm	DPDT	5 VDC	On-Mom	55 °C	-20 ░C	IP65
