1571550 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

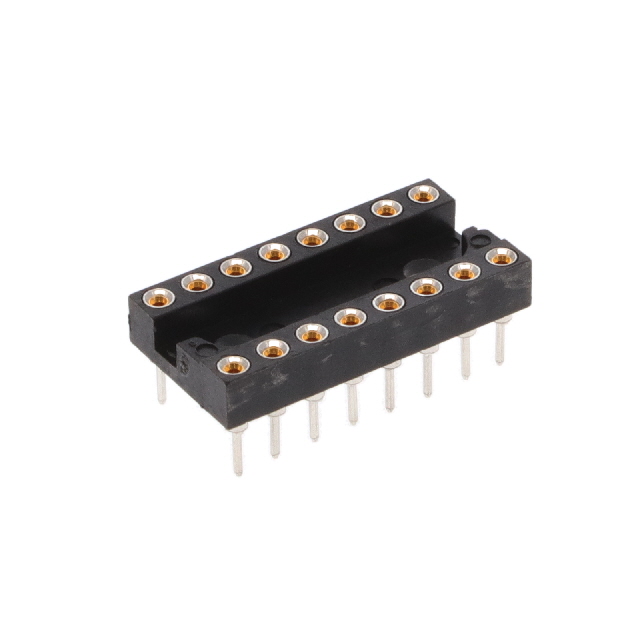

CONN IC DIP SOCKET 16POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length | Termination Post Length | Contact Material - Mating | Pitch - Post | Pitch - Post | Housing Material | Contact Finish - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Mounting Type | Contact Material - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Type | Type | Type | Features | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Type [custom] | Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Gold | 0.63 µm | 25 µin | Solder | Through Hole | Beryllium Copper | 2 | 16 | 8 | 7.62 mm | 0.3 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 125 °C | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | Solder | Through Hole | Beryllium Copper | 22 | 0.4 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 105 ░C | 11 | 2 | ||||||||
TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | Solder | Through Hole | Beryllium Copper | 8 | 7.62 mm | 0.3 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 105 ░C | 4 | 2 | |||||||
TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Gold | 0.63 µm | 25 µin | Solder | Through Hole | Beryllium Copper | 6 | 7.62 mm | 0.3 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 125 °C | 3 positions or pins | 2 | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Gold | 0.63 µm | 25 µin | Solder | Through Hole | Beryllium Copper | 28 | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 125 °C | 15.24 mm | 0.6 in | ||||||
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | Solder | Through Hole | Beryllium Copper | 32 | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 105 ░C | 15.24 mm | 0.6 in | |||||||||
TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Gold | 0.63 µm | 25 µin | Solder | Through Hole | Beryllium Copper | 18 | 7.62 mm | 0.3 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 125 °C | ||||||
TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.125 in | 3.18 mm | Beryllium Copper | 0.1 in | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | Gold | 0.63 µm | 25 µin | Solder | Through Hole | Beryllium Copper | 22 | 0.4 in | DIP | Closed Frame | 0.1 " | 2.54 mm | -55 C | 125 °C | 11 | 2 |
