DD12.1321 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Connector Style	Switch Features	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet	Mounting Type	Filter Type	Ingress Protection	Current Rating - Appliance Inlet	Approval Agency	Accomodates a Fuse	Connector Type	Material Flammability Rating	Panel Thickness	Panel Thickness	Features	Termination	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DD12.1321.111	1 A	IEC 320-C14	Switch On-Off	Drawer Sold Separate	29.8 mm	49.3 mm	250 VAC	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	IP40	10 A	cURus ENEC		Receptacle Male Blades - Module	UL94 V-0	8 mm	0.315 in	Earth Line Choke Shielded V-Lock Notch	6.3 mm	Quick Connect	0.25 "

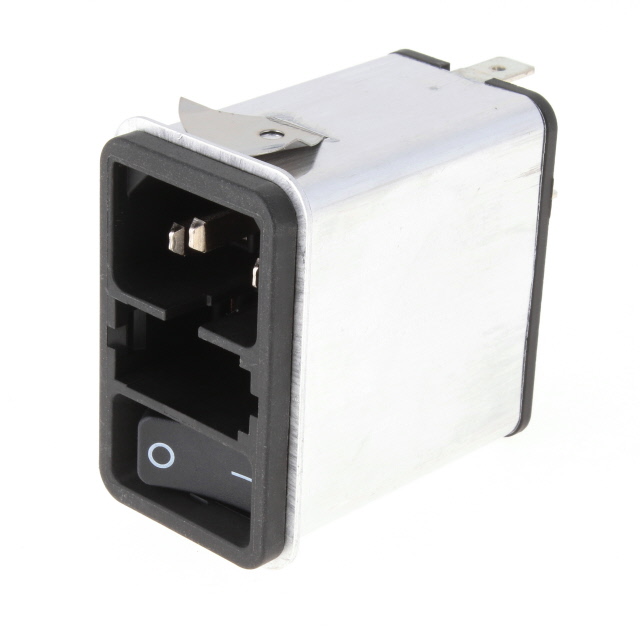

SCHURTER Inc. DD12.1321.131	1 A	IEC 320-C14	Switch On-Off	Drawer Sold Separate	29.8 mm	49.3 mm	250 VAC	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	IP40	10 A	cURus ENEC		Receptacle Male Blades - Module	UL94 V-0			Earth Line Choke Shielded V-Lock Notch	6.3 mm	Quick Connect	0.25 "	0.118 in	3 mm	1 mm	0.039 in
