6001UE Series
Manufacturer: Belden Inc.
Beta
⌘K

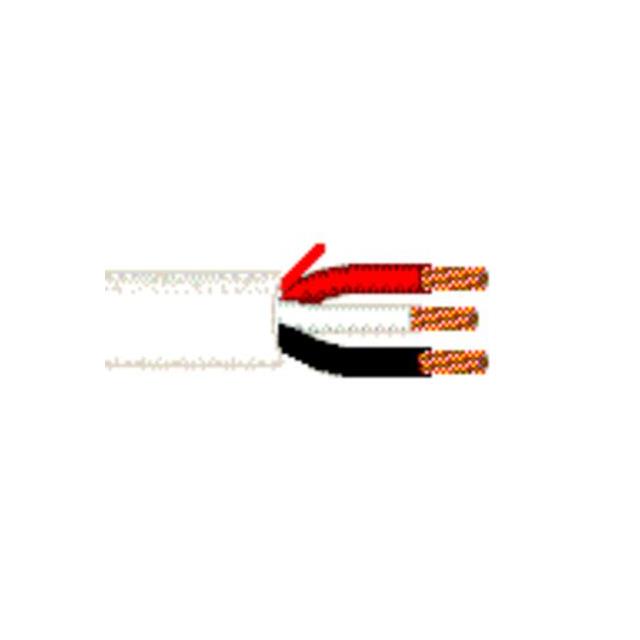

CABLE 3COND 12AWG NATURAL
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Usage | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Cable Type | Conductor Insulation | Length | Length | Features | Wire Gauge | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 6.93 mm | 0.273 " | 150 V | Security Sound | UL Style CL2P | 75 ░C | 0 °C | Natural | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | 304.8 m | 1000 ft | Rip Cord | 12 AWG | 3 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | 19 | 25 AWG | Copper Bare |
