070553 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 3POS 2.54MM

Part	Contact Finish - Mating	Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Post	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Insulation Material	Applications	Number of Rows	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Connector Type	Contact Shape	Insulation Height	Insulation Height	Contact Material	Style	Mounting Type	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions

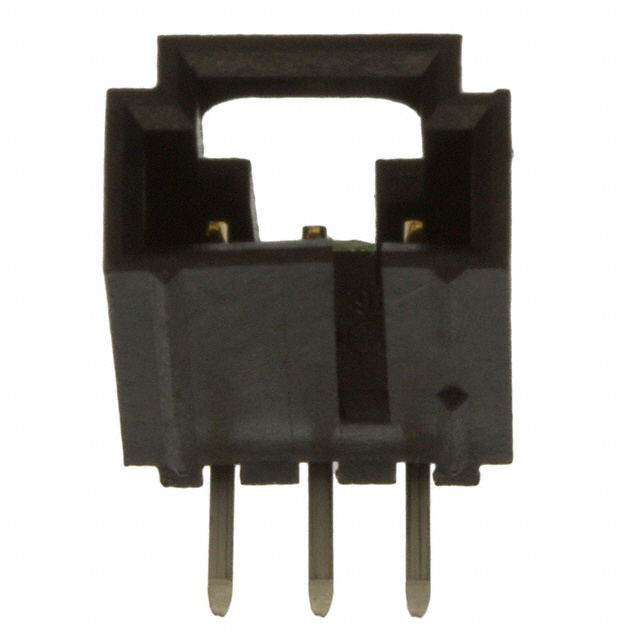

Molex 0705530107	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	30 Áin	0.76 Ám	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in

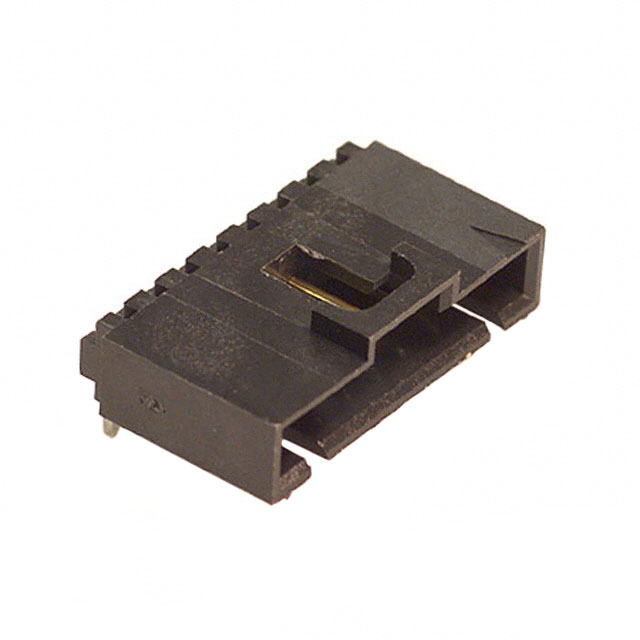

Molex 0705530007	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	15 µin	0.38 µm	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	8

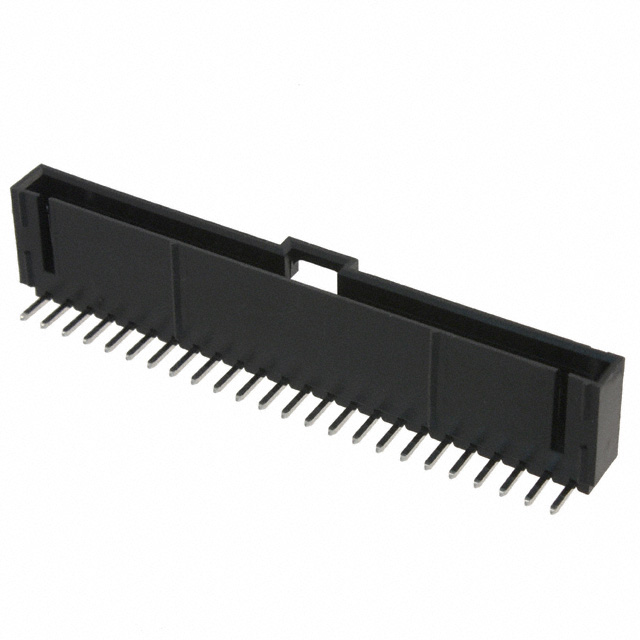

Molex 0705530058		Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	24
Molex 0705530053		Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	19
Molex 0705530051		Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in

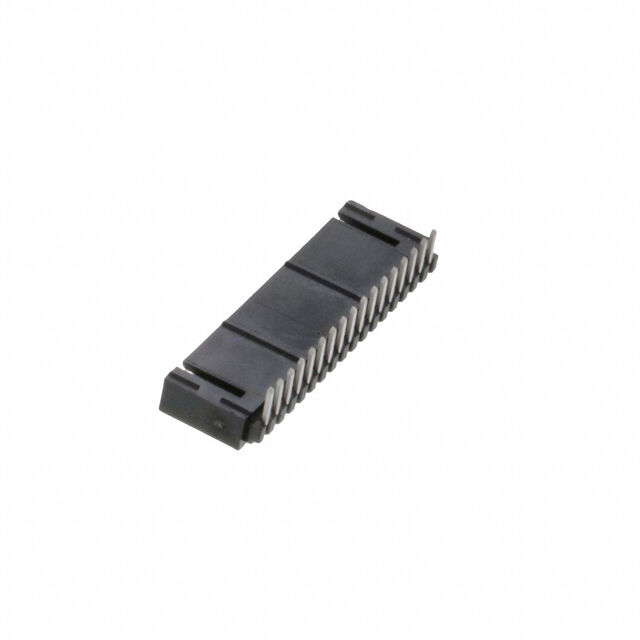

Molex 0705530016	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	15 µin	0.38 µm	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in

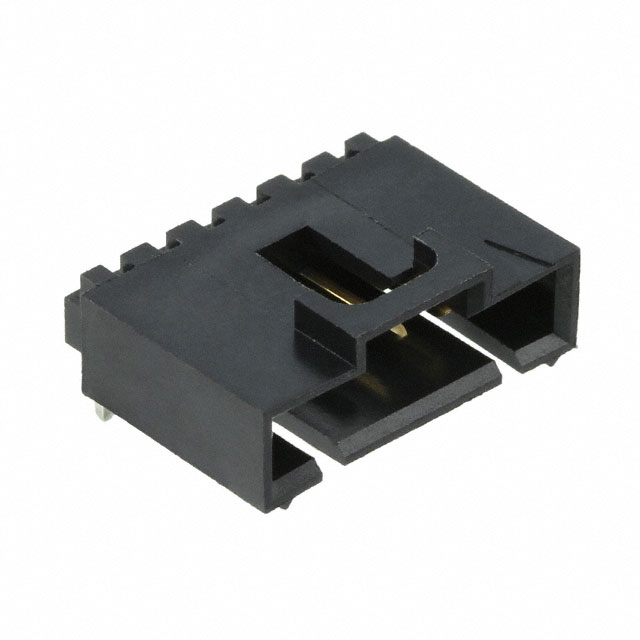

Molex 0705530110	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	30 Áin	0.76 Ám	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	6

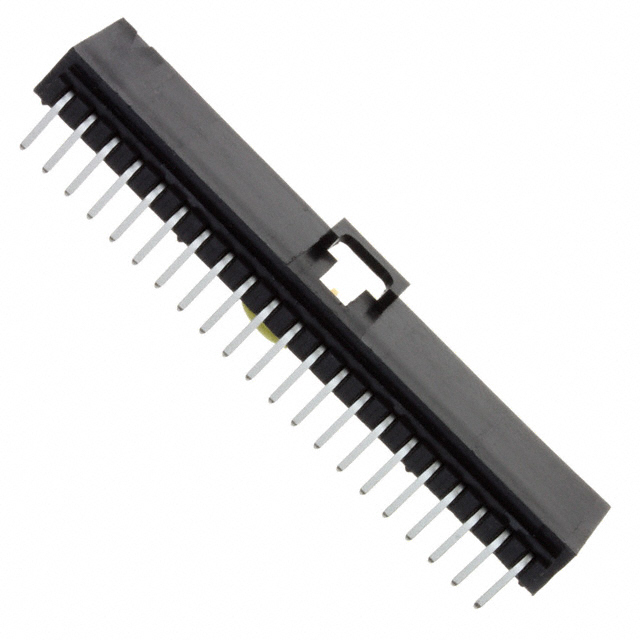

Molex 0705530020	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	15 µin	0.38 µm	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	21

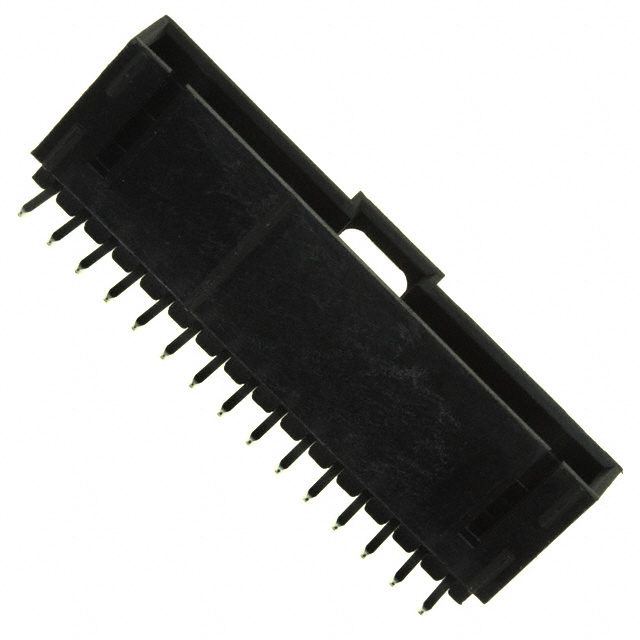

Molex 0705530014	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	15 µin	0.38 µm	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	15
Molex 0705530119	Gold	Solder	Latch Holder	-40 °C	105 ░C	Male Pin	Tin	Shrouded - 4 Wall	30 Áin	0.76 Ám	74.8 Áin	1.9 Ám	All	Black	Polyester Glass Filled	Automotive General Purpose Industrial Medical	1	250 VDC	0.1 in	2.54 mm	UL94 V-0	0.13 in	3.3 mm	Header	Square	5.45 mm	0.215 in	Phosphor Bronze	Board to Cable/Wire	Through Hole Right Angle	6.1 mm	0.24 in	15
