CG-M25 Series
Manufacturer: Essentra Components
Beta
⌘K

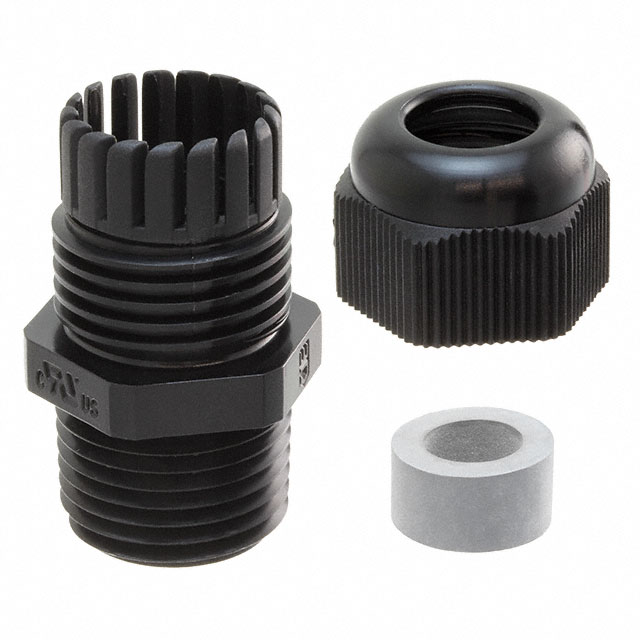

CABLE GLAND 7.87-17.02MM M25
| Part | Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) | Thread Length | Thread Length | Ingress Protection | Thread Size | Includes | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Panel Hole Size | Panel Hole Size | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Cable Gland | -20 ░C | 100 °C | Black | 0.31 in | 7.87 mm | 0.315 " | 8 mm | IP68 - Dust Tight Waterproof | M25x1.5 | Inner and Outer Sealing Gland Sealing Nut | 0.67 in | 17.02 mm | 25.2 mm | 0.992 in | Polyamide (PA) Nylon |
