TLP3910 Series

Catalog

PHOTOVOLTAIC COUPLER; HIGH VOC;

Part	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Forward (Vf) (Typ)	Voltage - Output (Max) [Max]	Number of Channels	Input Type	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Package / Case
Toshiba Semiconductor and Storage TLP3910(D4C20TPE	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)

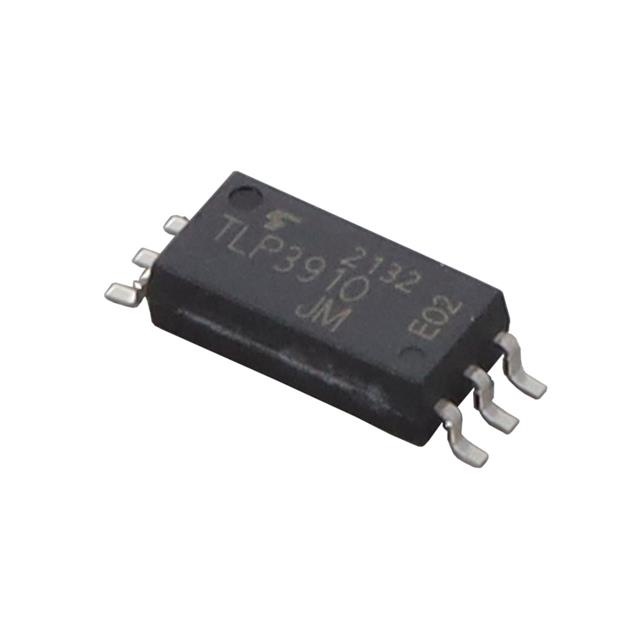

Toshiba Semiconductor and Storage TLP3910(E	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)
Toshiba Semiconductor and Storage TLP3910(C20,E	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)
Toshiba Semiconductor and Storage TLP3910(TP,E	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)

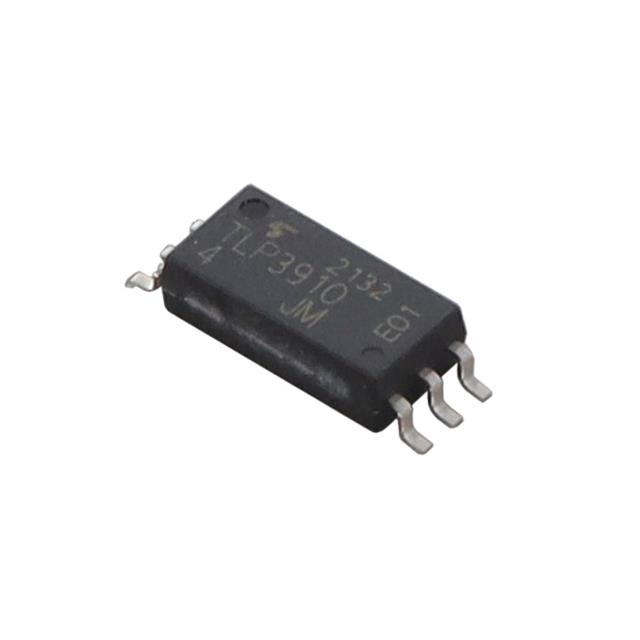

Toshiba Semiconductor and Storage TLP3910(D4,E	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)
Toshiba Semiconductor and Storage TLP3910(D4-TP,E	300 µs	100 µs	Surface Mount	125 °C	-40 C	Photovoltaic	3.3 V	24 V	2	DC	30 mA	6-SO	6-SOIC (0.295" 7.50mm Width)
