LMZ20501 Series
Manufacturer: Texas Instruments
Beta
⌘K
2.7V TO 5.5V, 1A HIGH DENSITY NANO MODULE
| Part | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Number of Outputs | Features | Efficiency | Package / Case | Mounting Type | Applications | Voltage - Input (Max) [Max] | Board Type | Frequency - Switching | Regulator Topology | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Outputs and Type | Outputs and Type | Current - Output | Supplied Contents | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 0.8 V | 3.6 V | 2.7 V | 0.14 " | 1.8 mm | 0.07 " | 0.14 " | 3.5 mm | 3.5 mm | Non-Isolated PoL Module | 125 °C | -40 °C | 1 A | 1 | OCP OTP Remote On/Off SCP UVLO | 93 % | 8-SMD Module | Surface Mount | ITE (Commercial) | 5.5 V | ||||||||||||

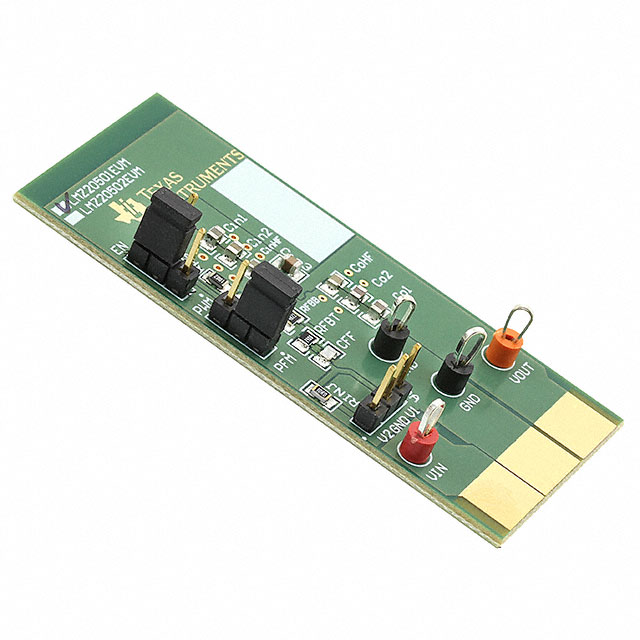

 Texas Instruments | Fully Populated | 3 MHz | Buck | LMZ20501 | 2.7 V | 5.5 V | 1.8 V | Non-Isolated | 1 | 1 A | Board(s) | DC/DC Step Down |
